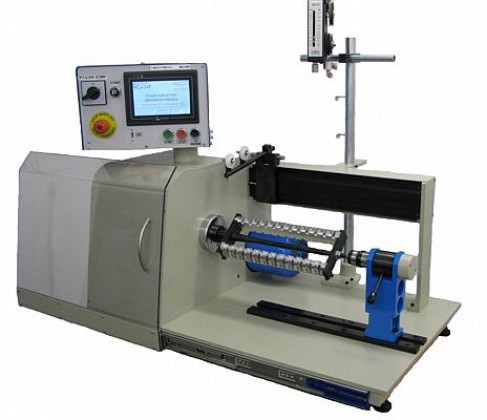

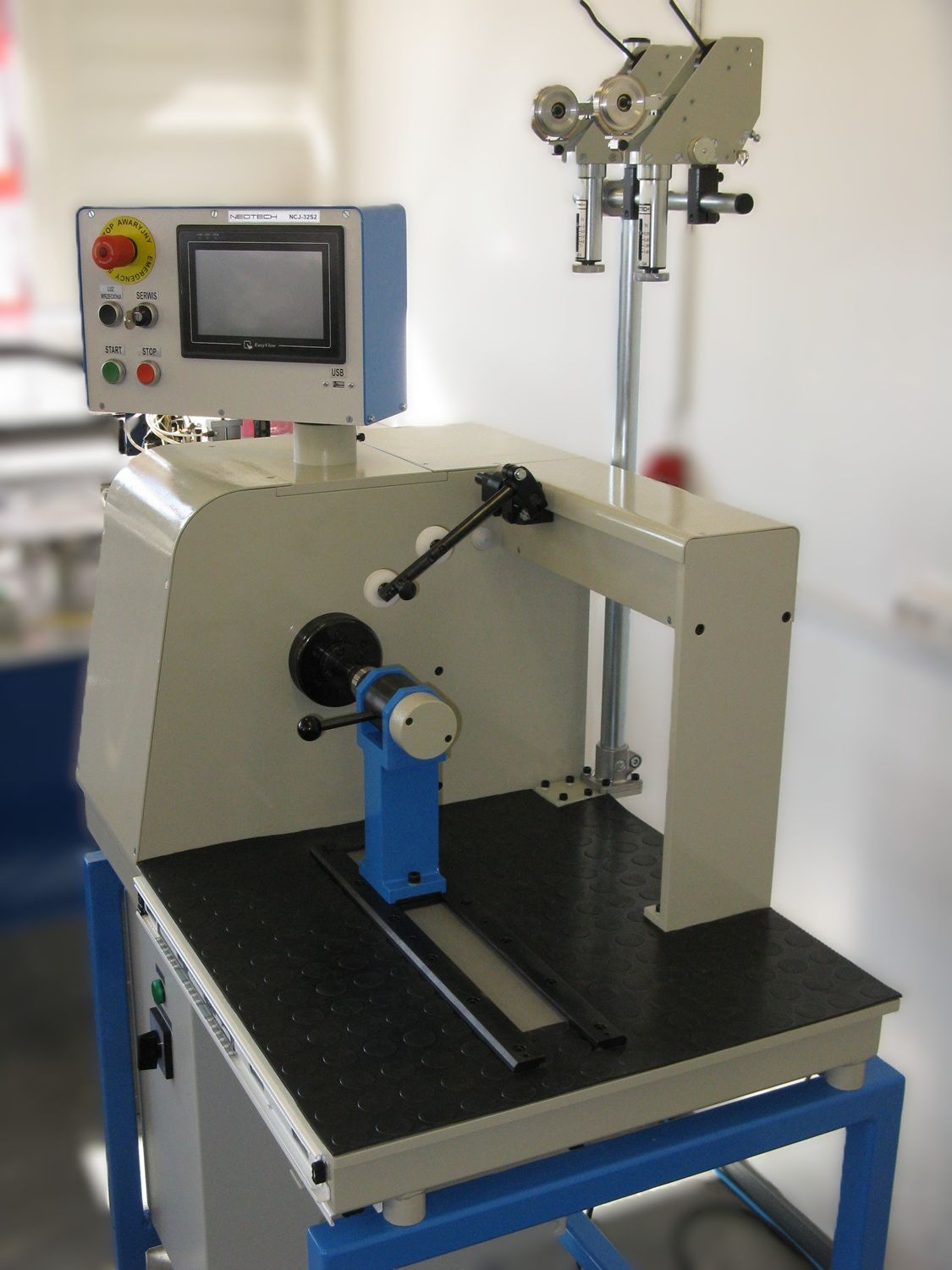

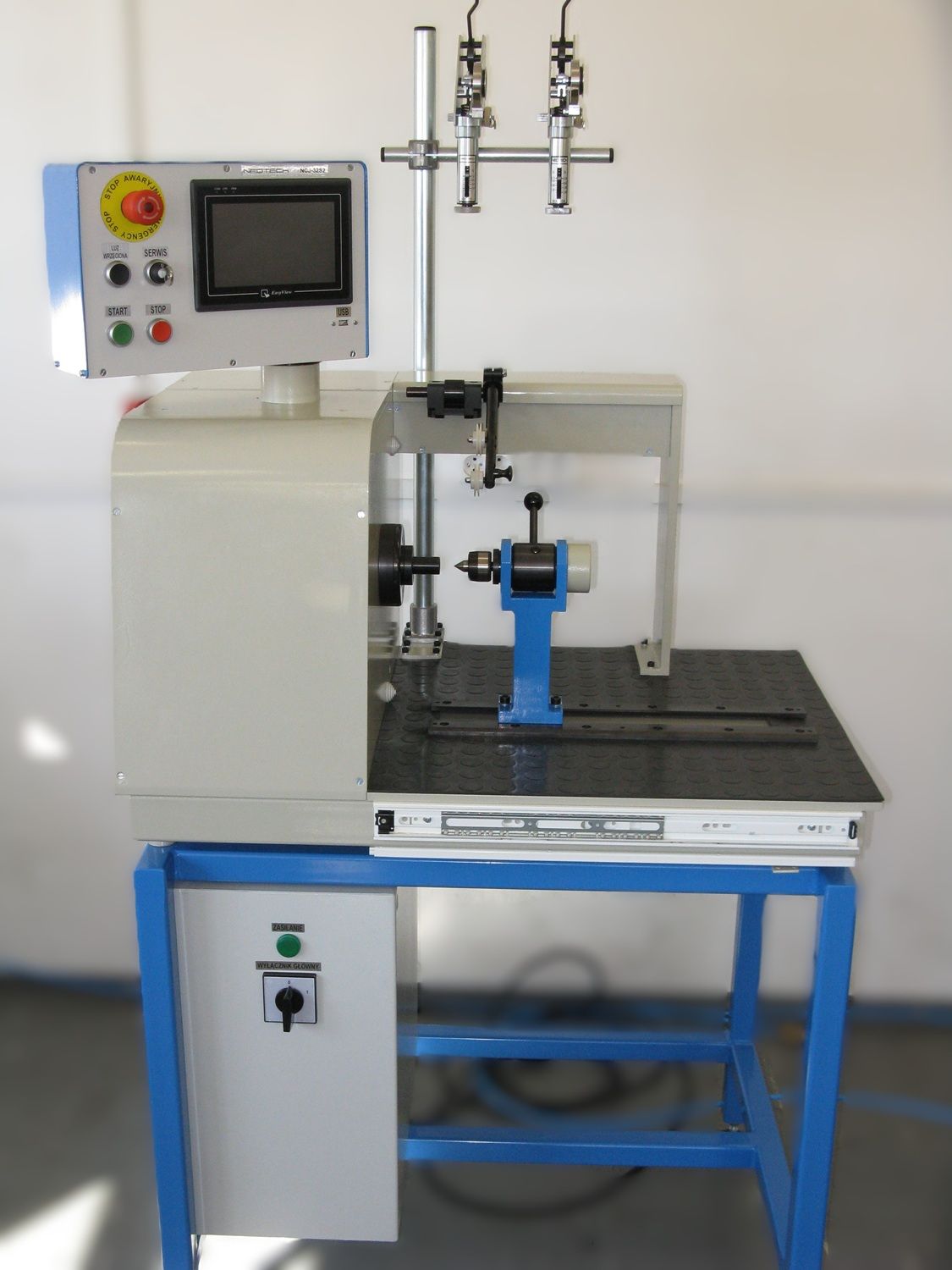

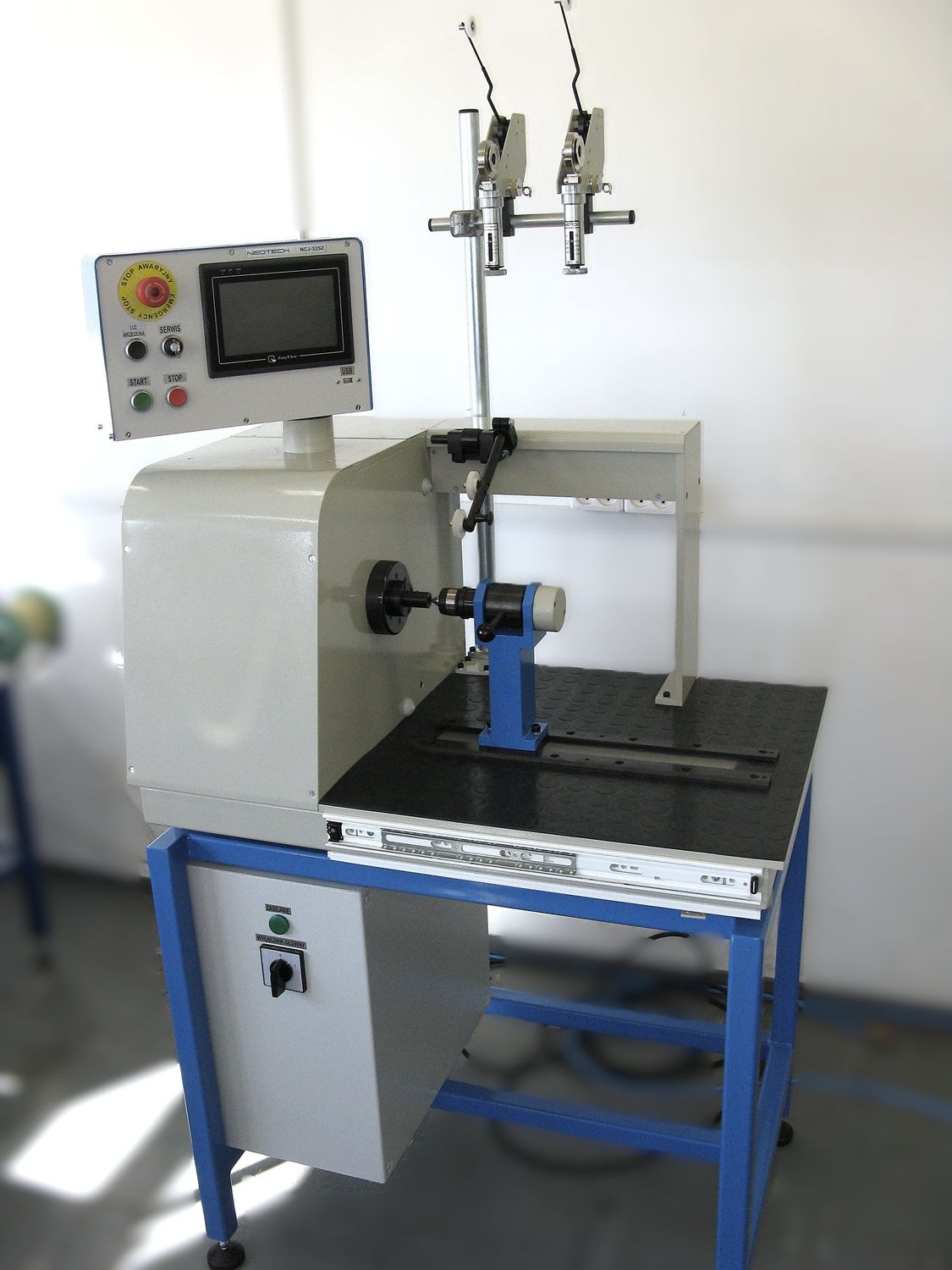

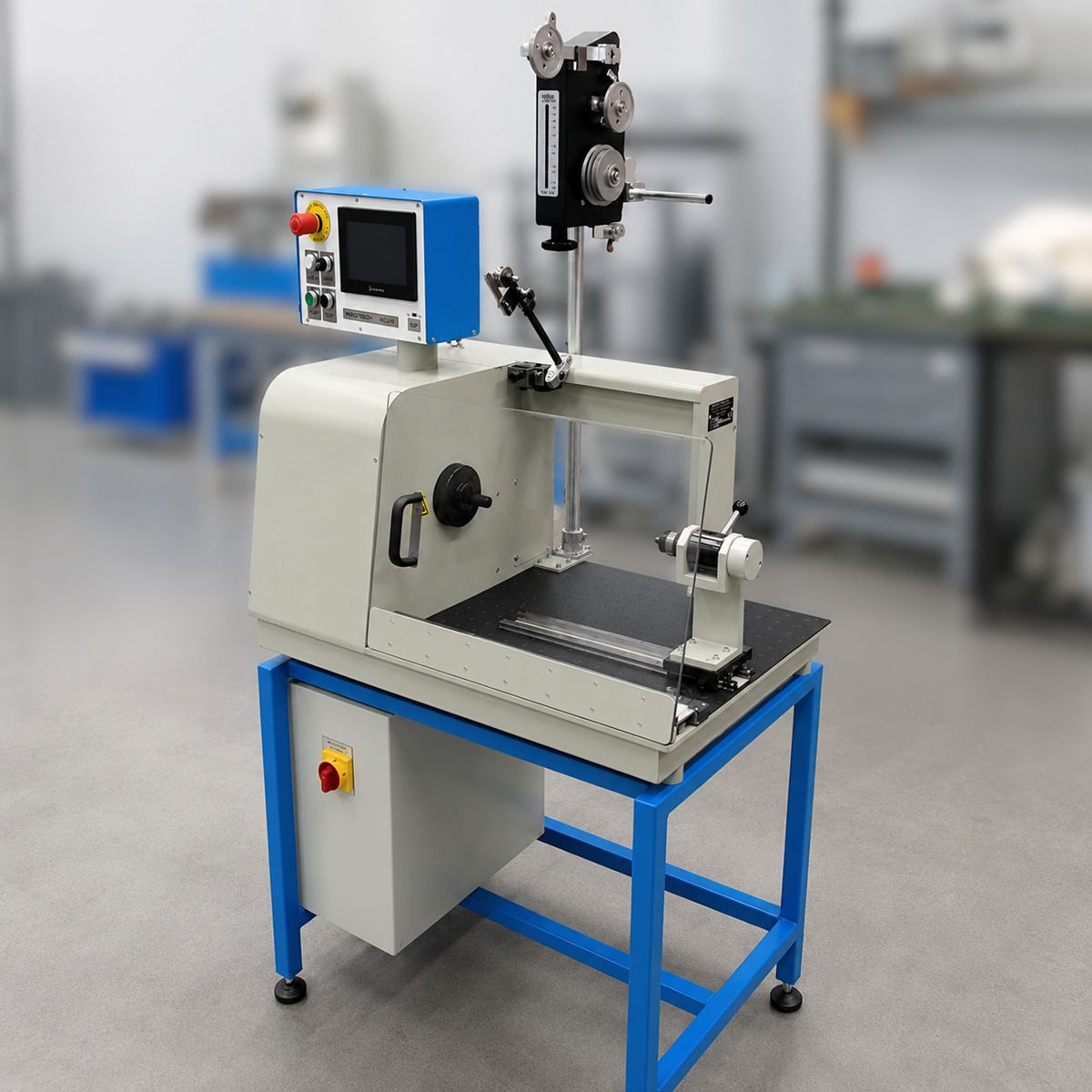

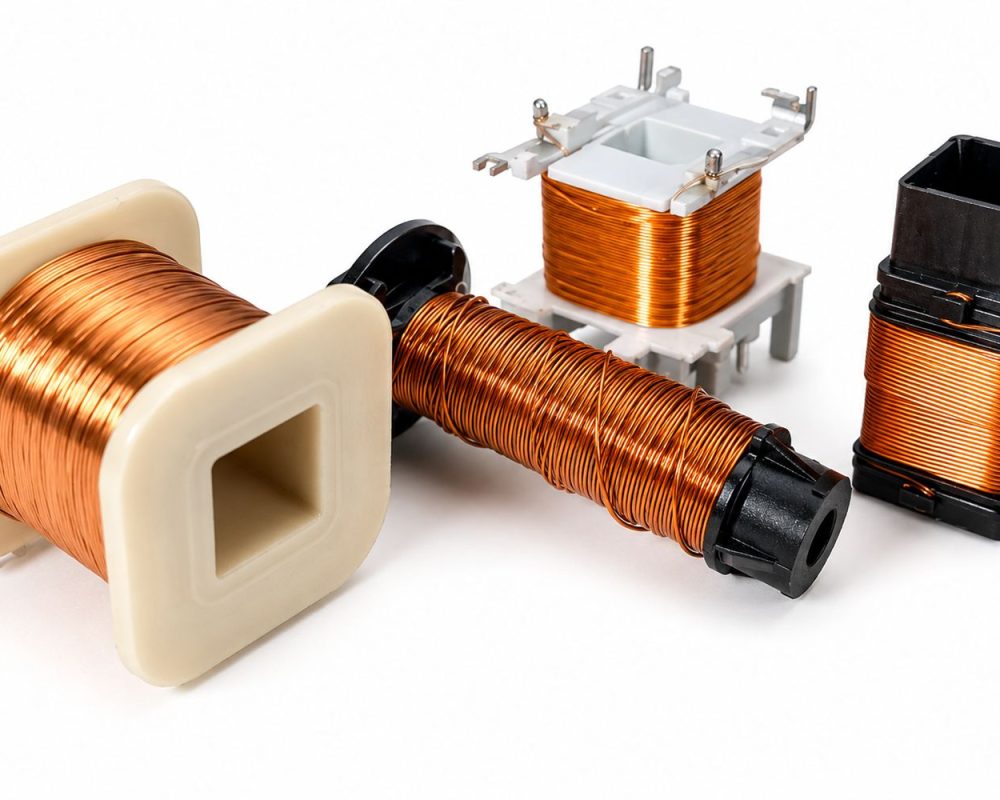

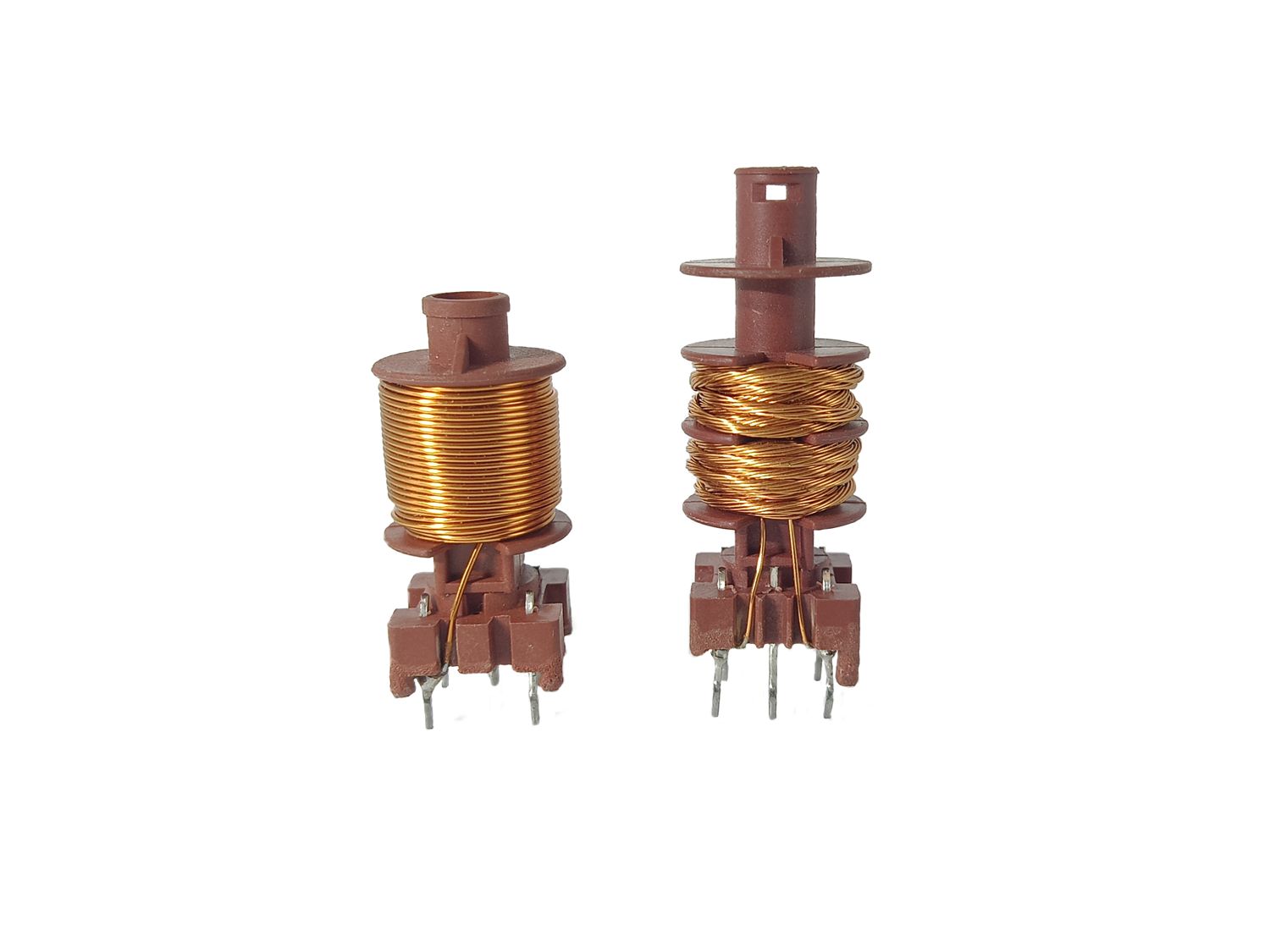

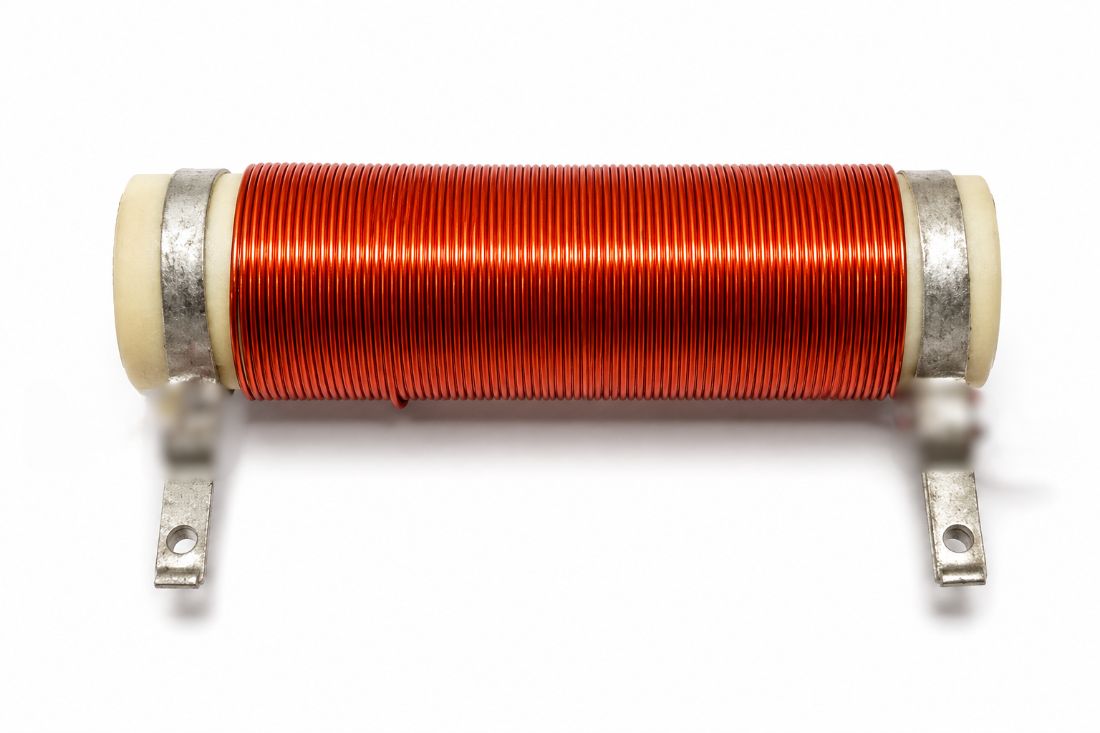

Single-spindle winders type NCJ-3X are universal machines for winding elements on one spindle.
They are adapted to the industrial production of parts in quantities ranging from a single piece (prototype production) to several tens of thousands (short- and medium-series production).

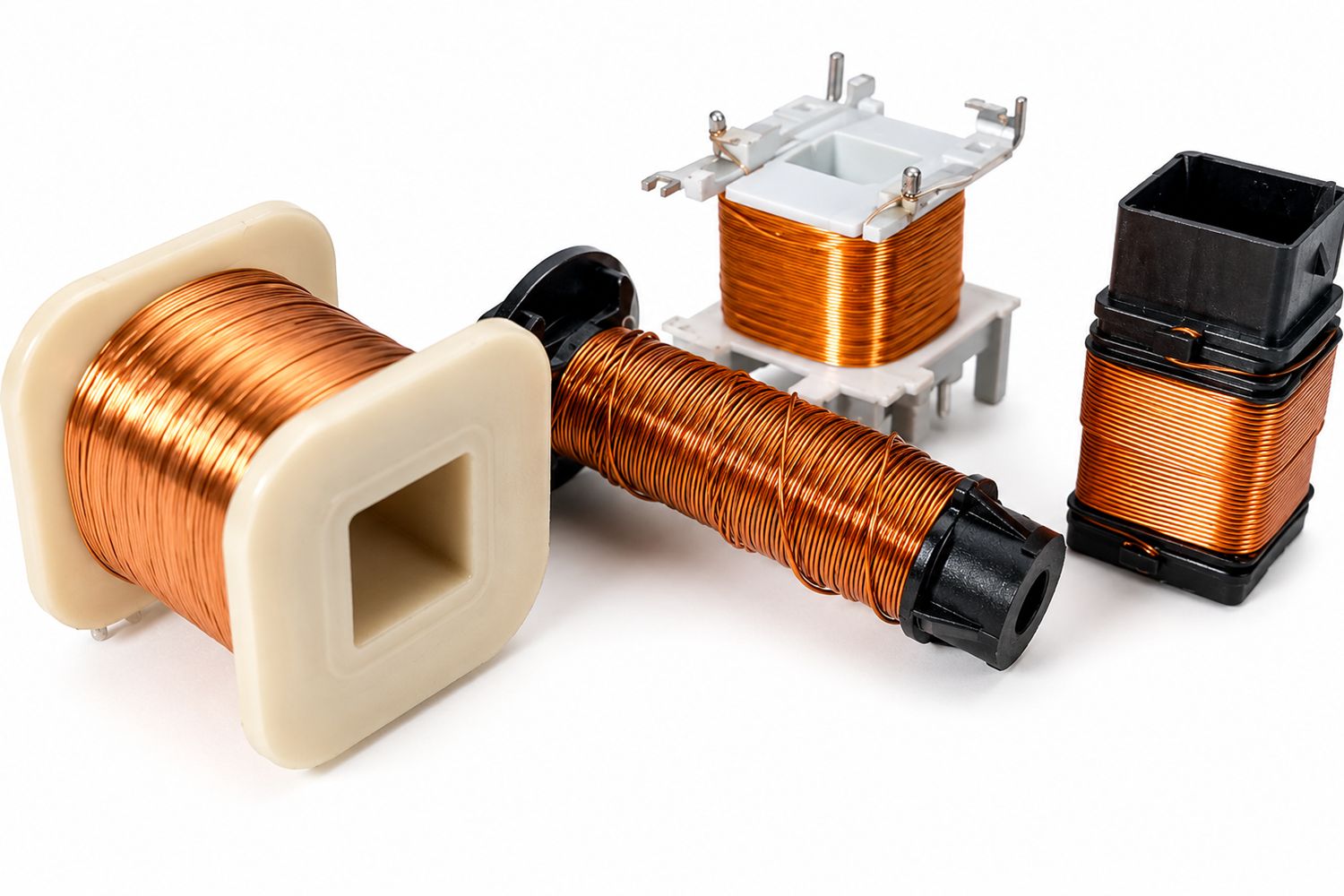

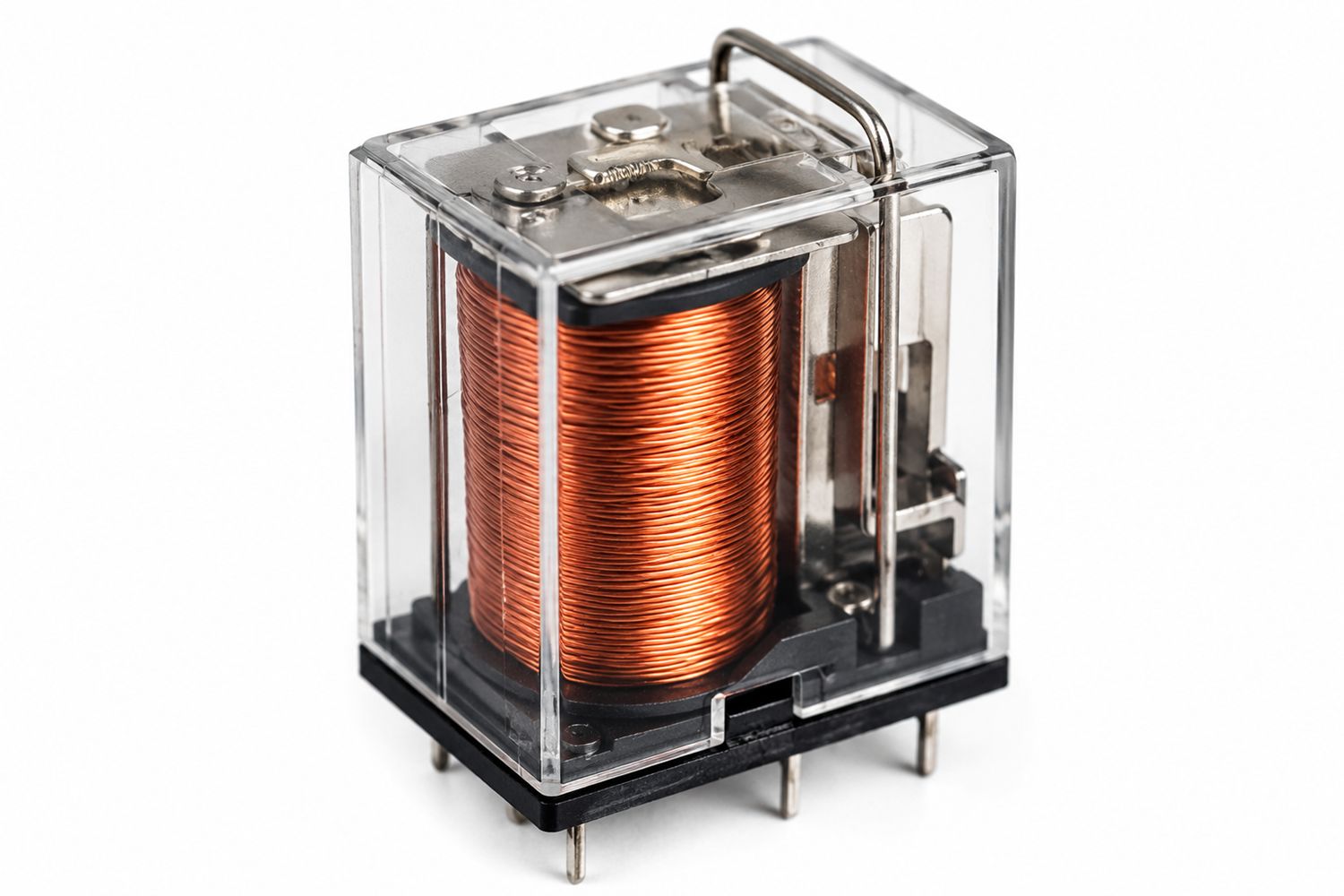

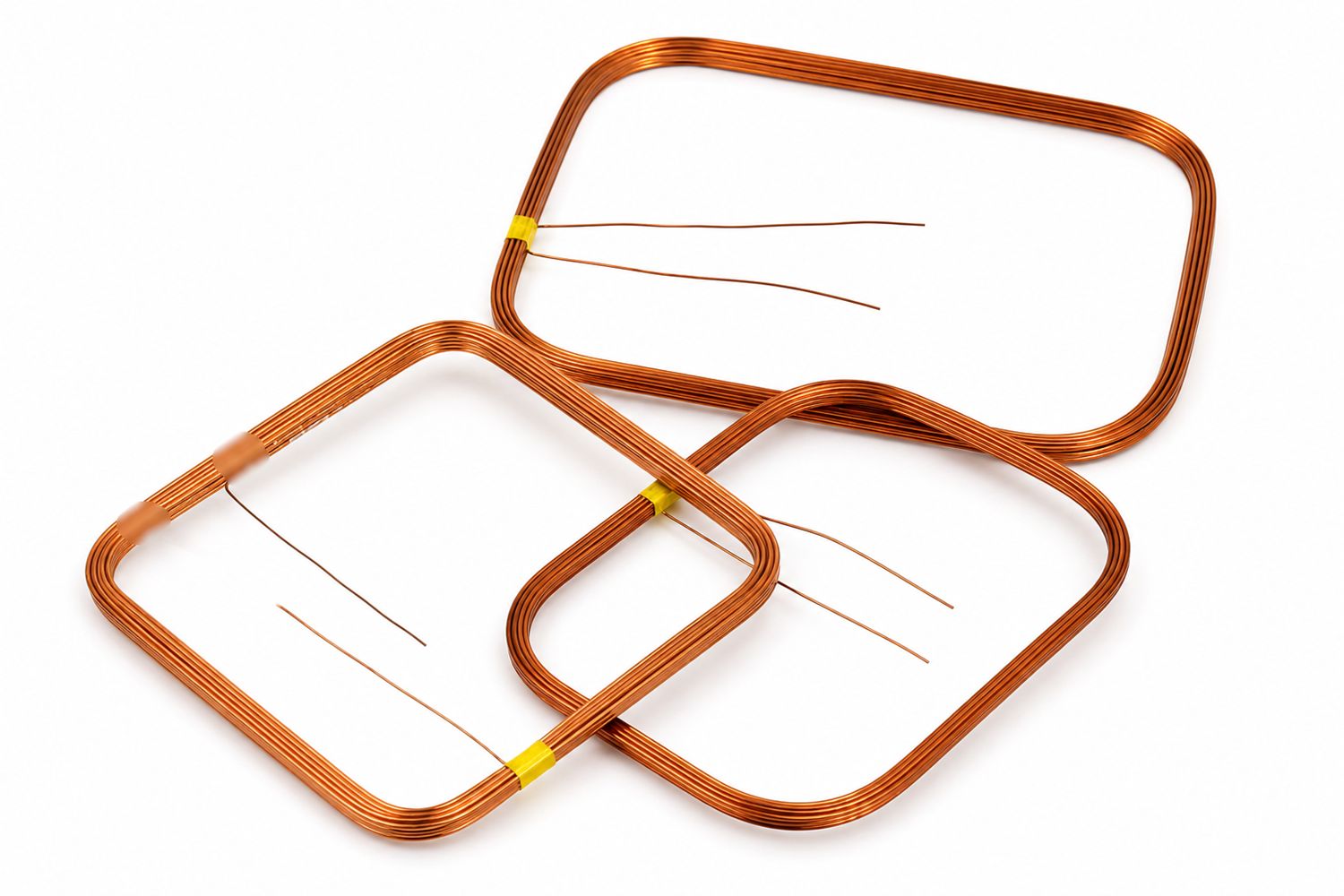

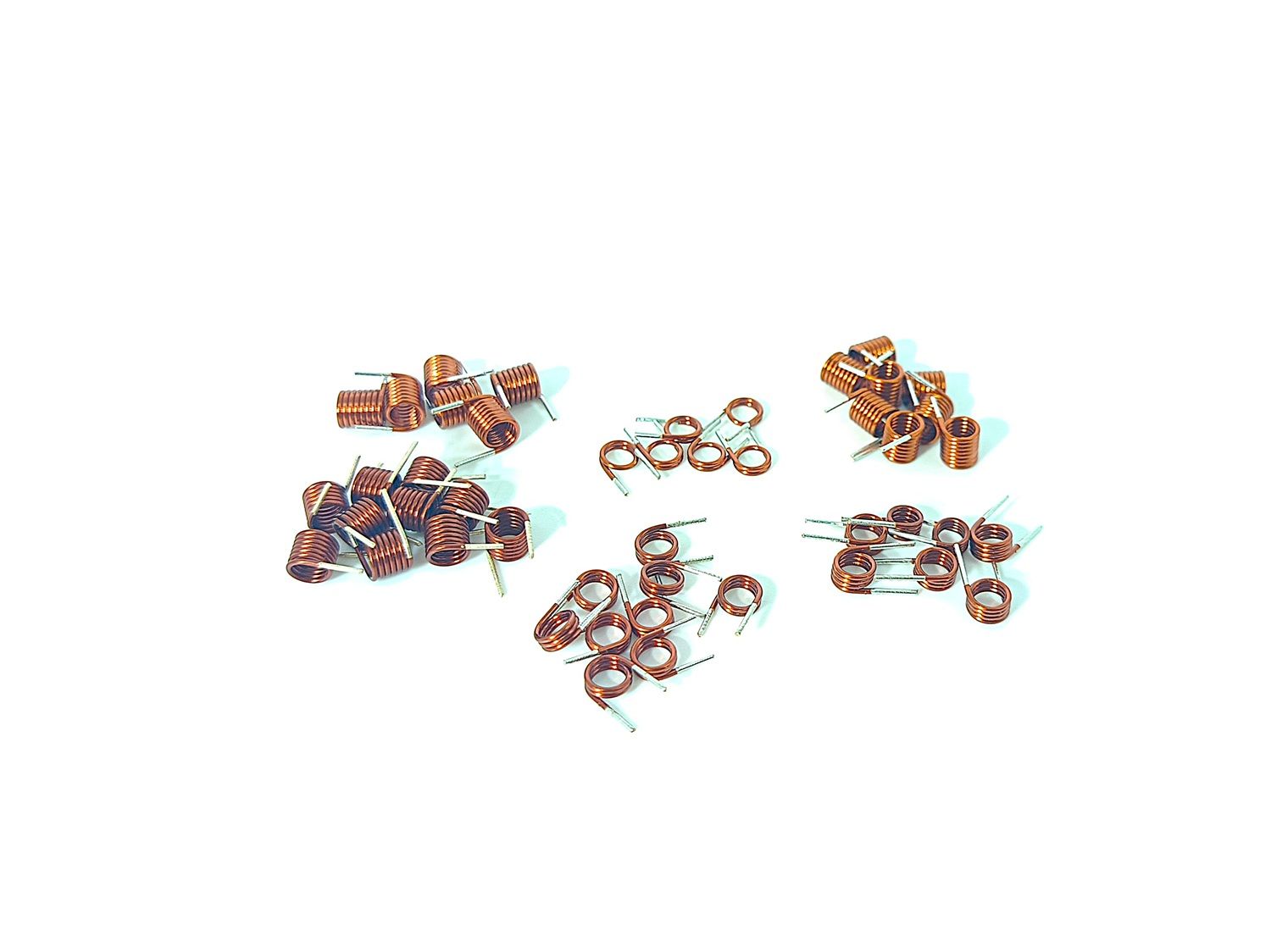

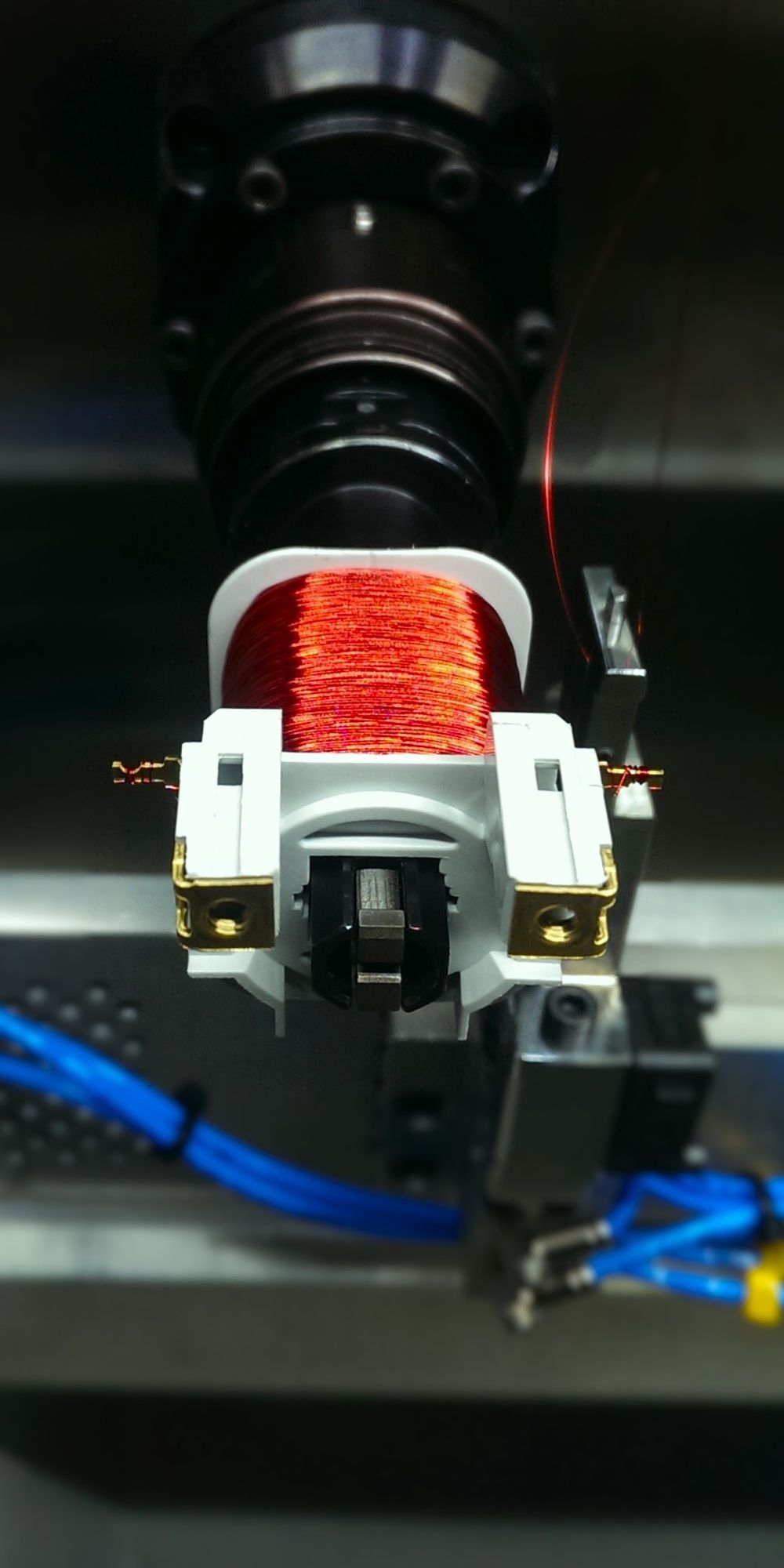

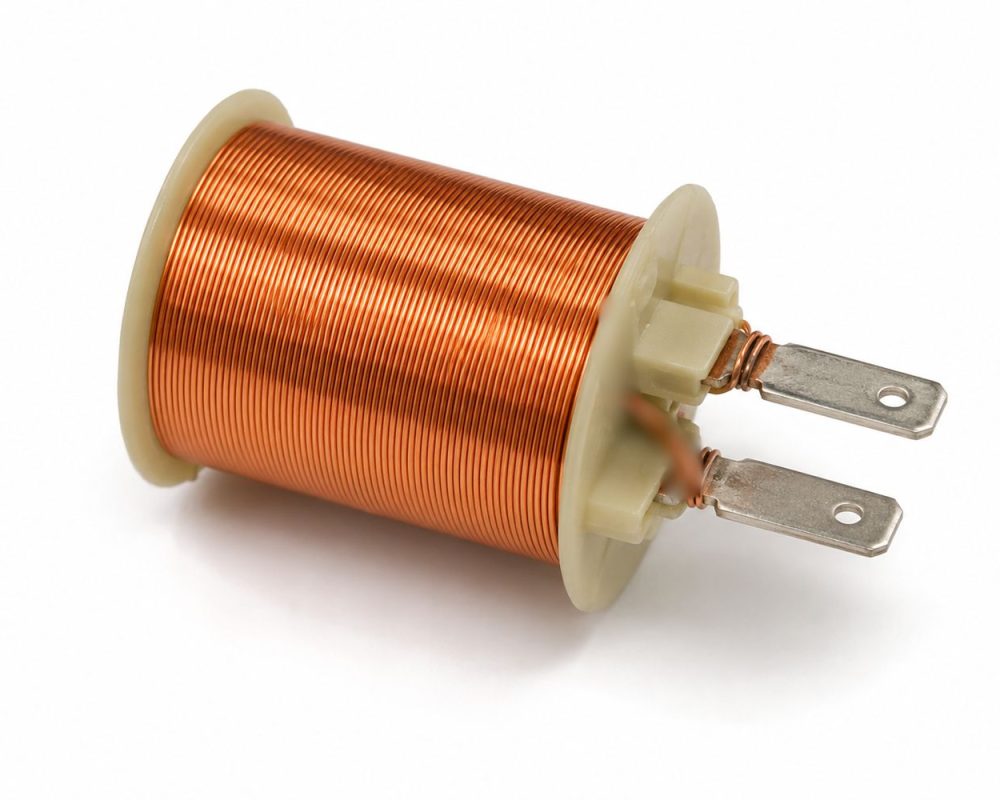

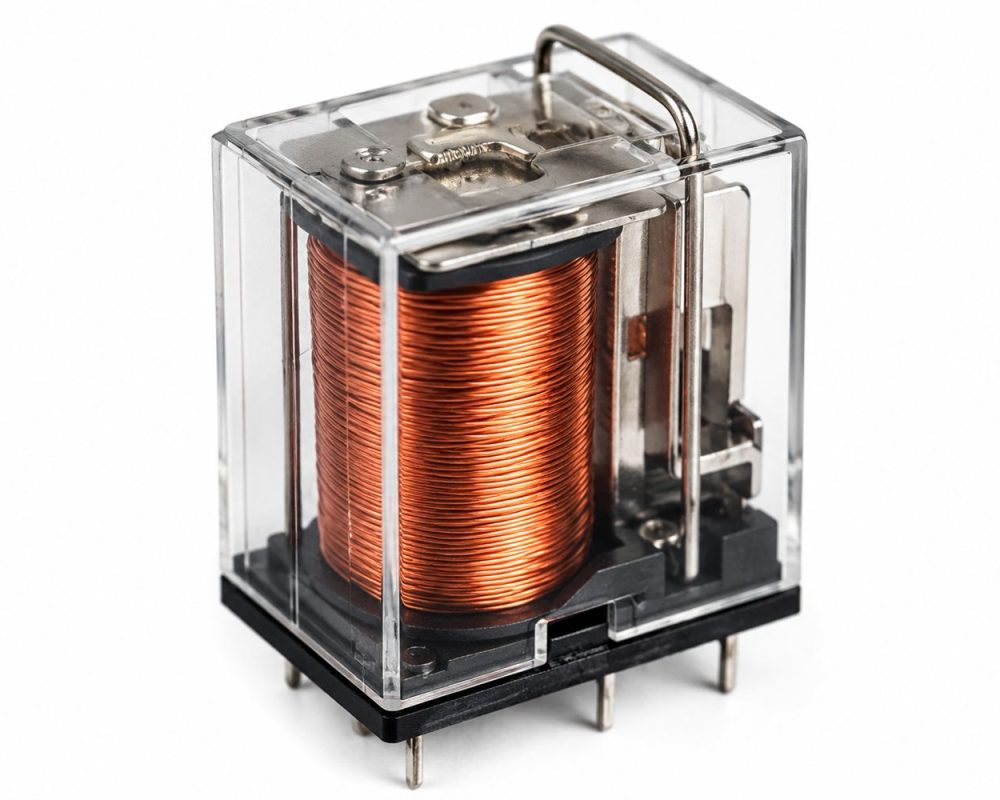

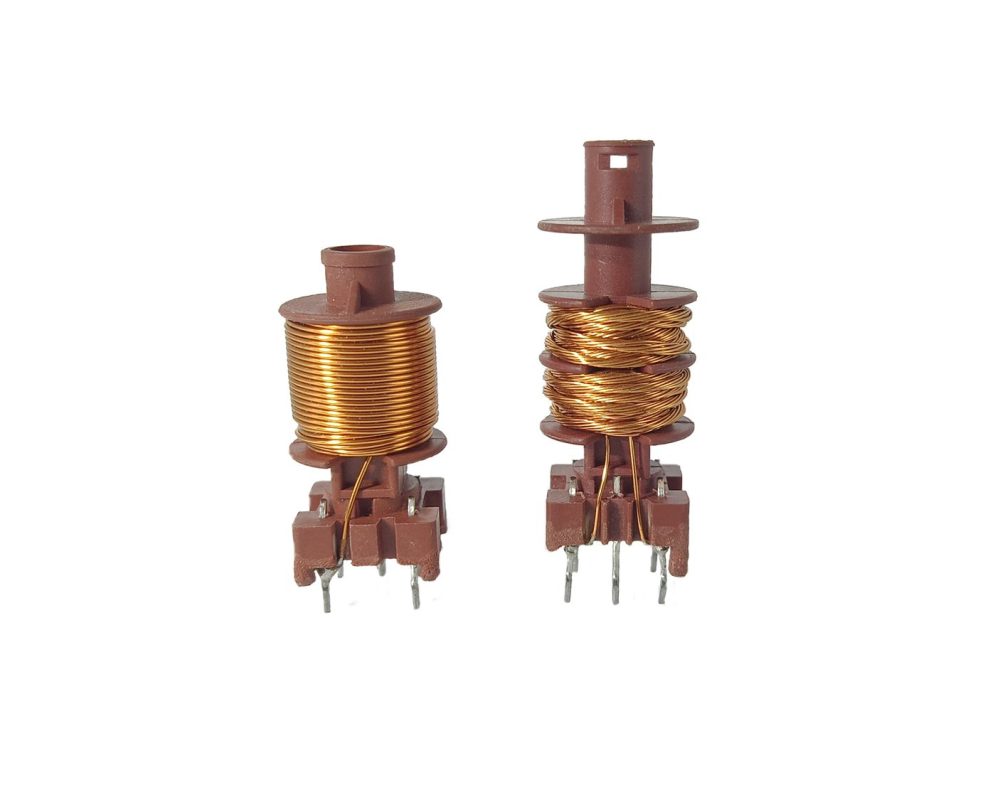

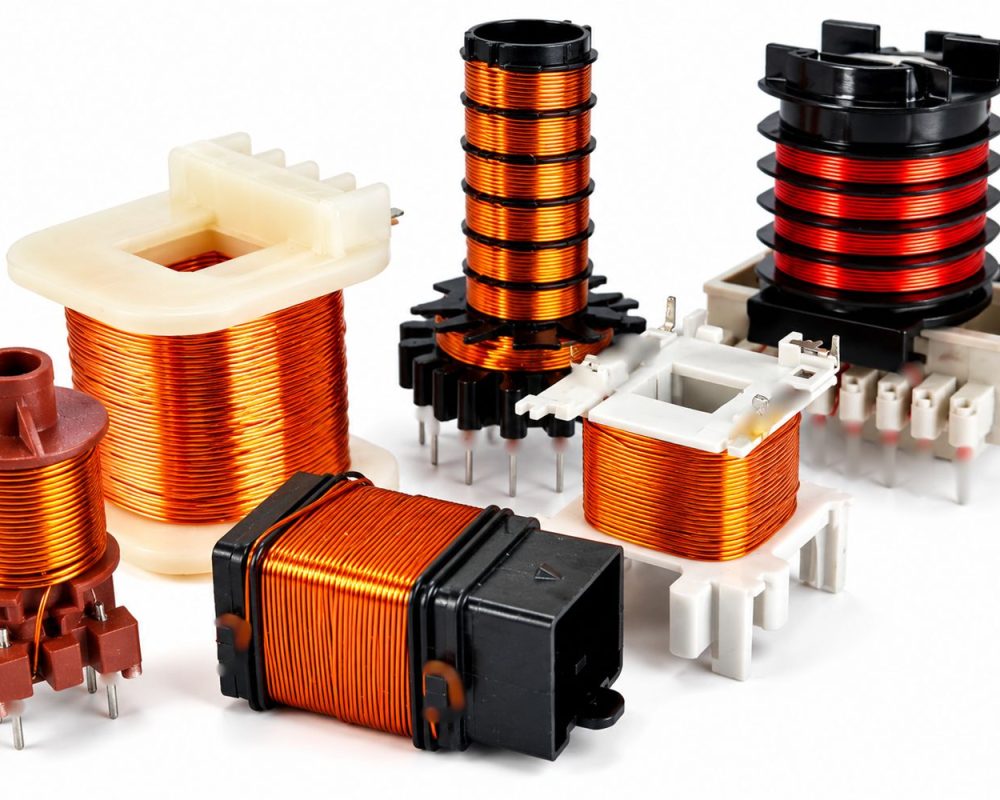

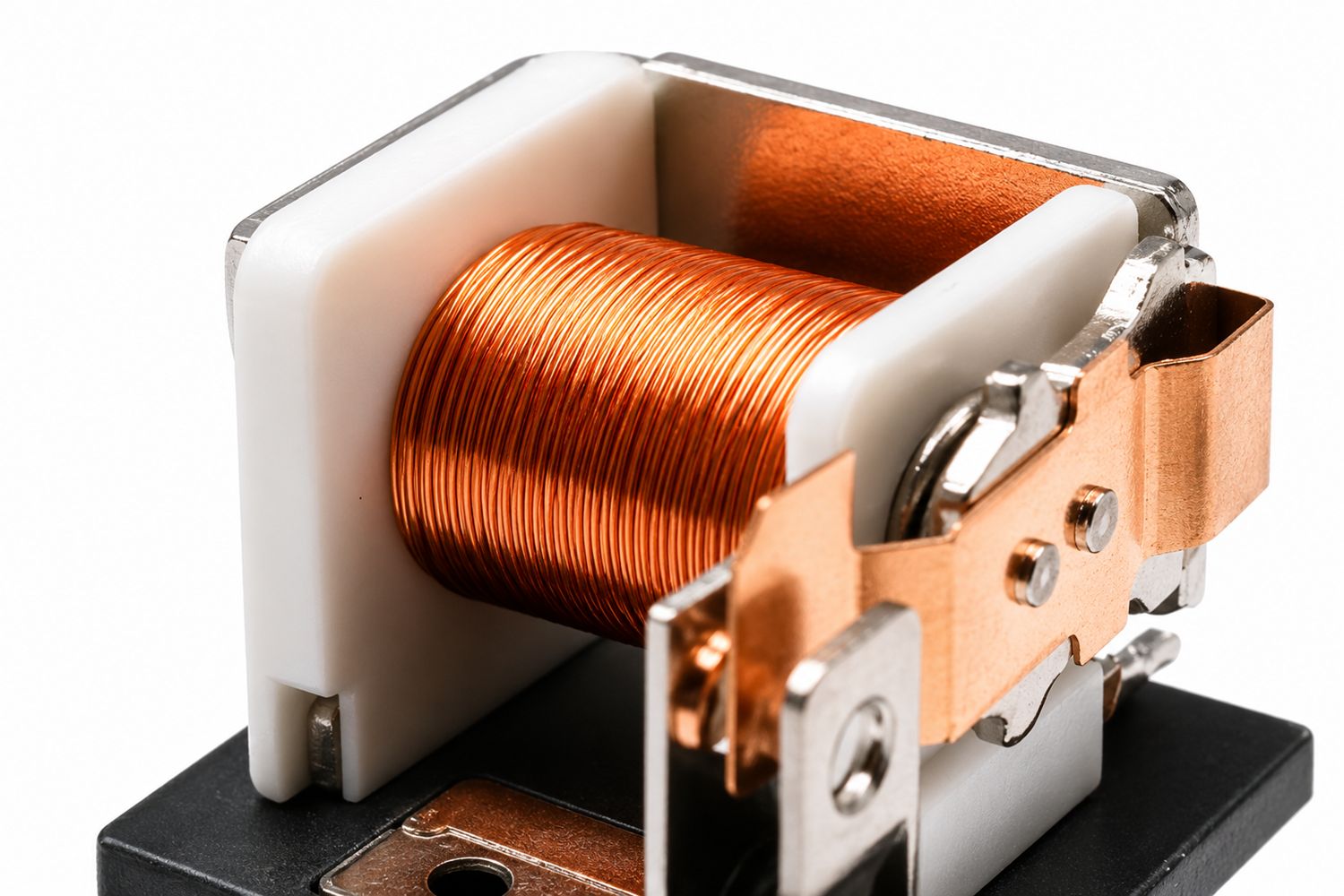

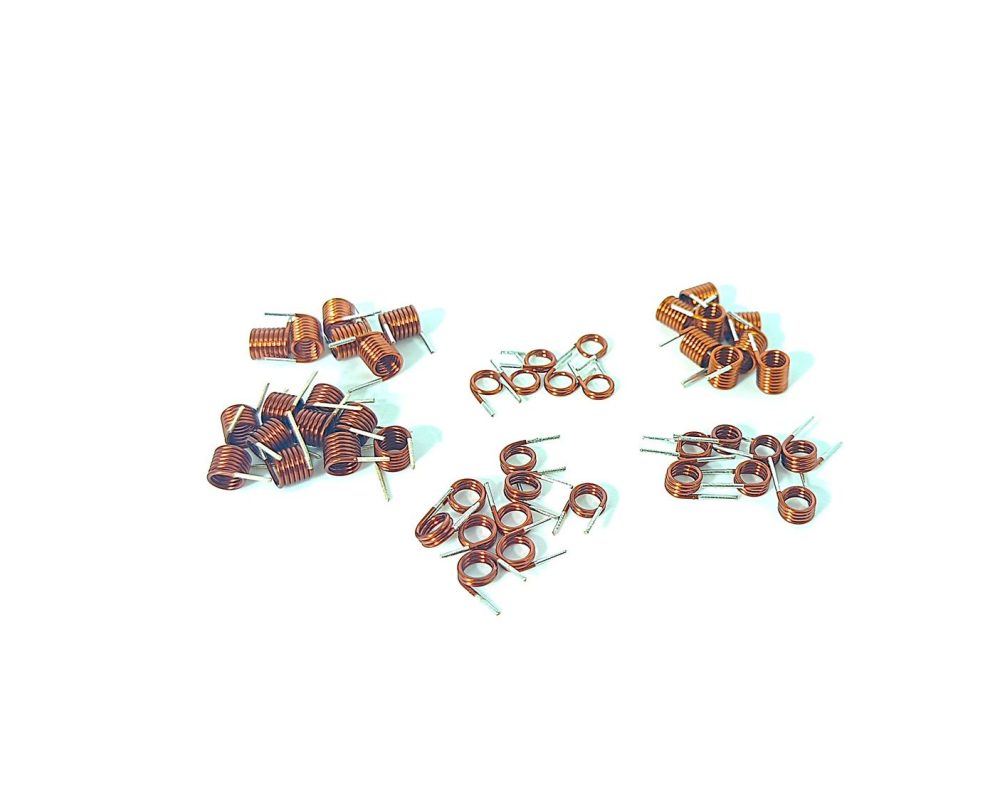

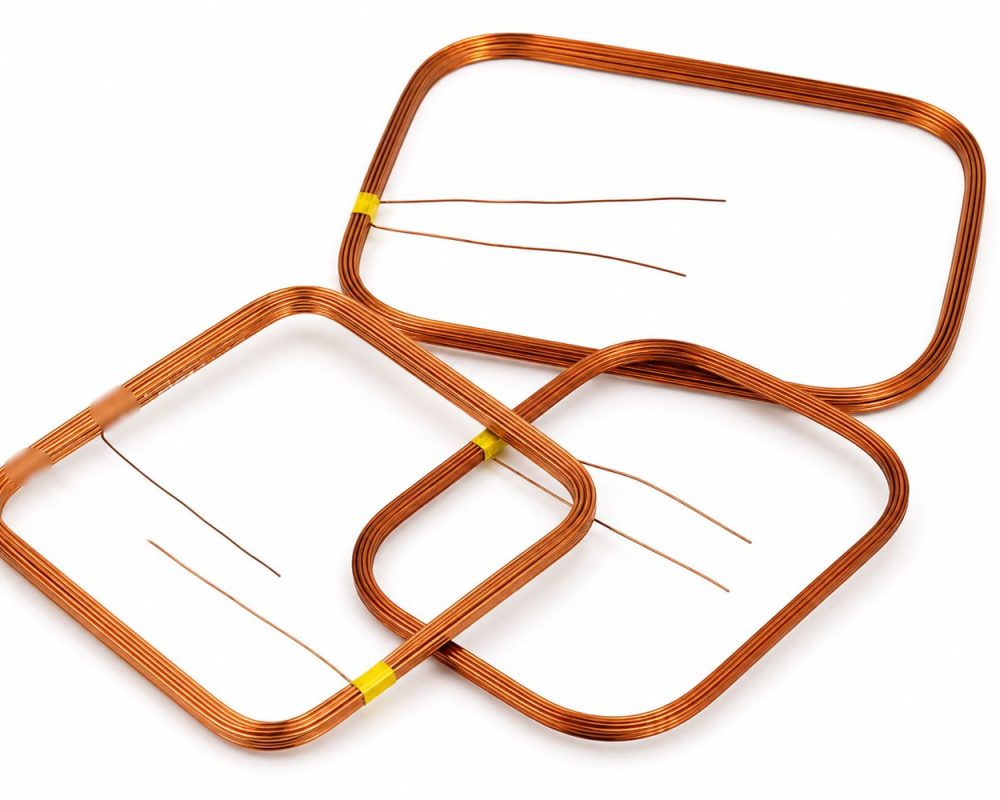

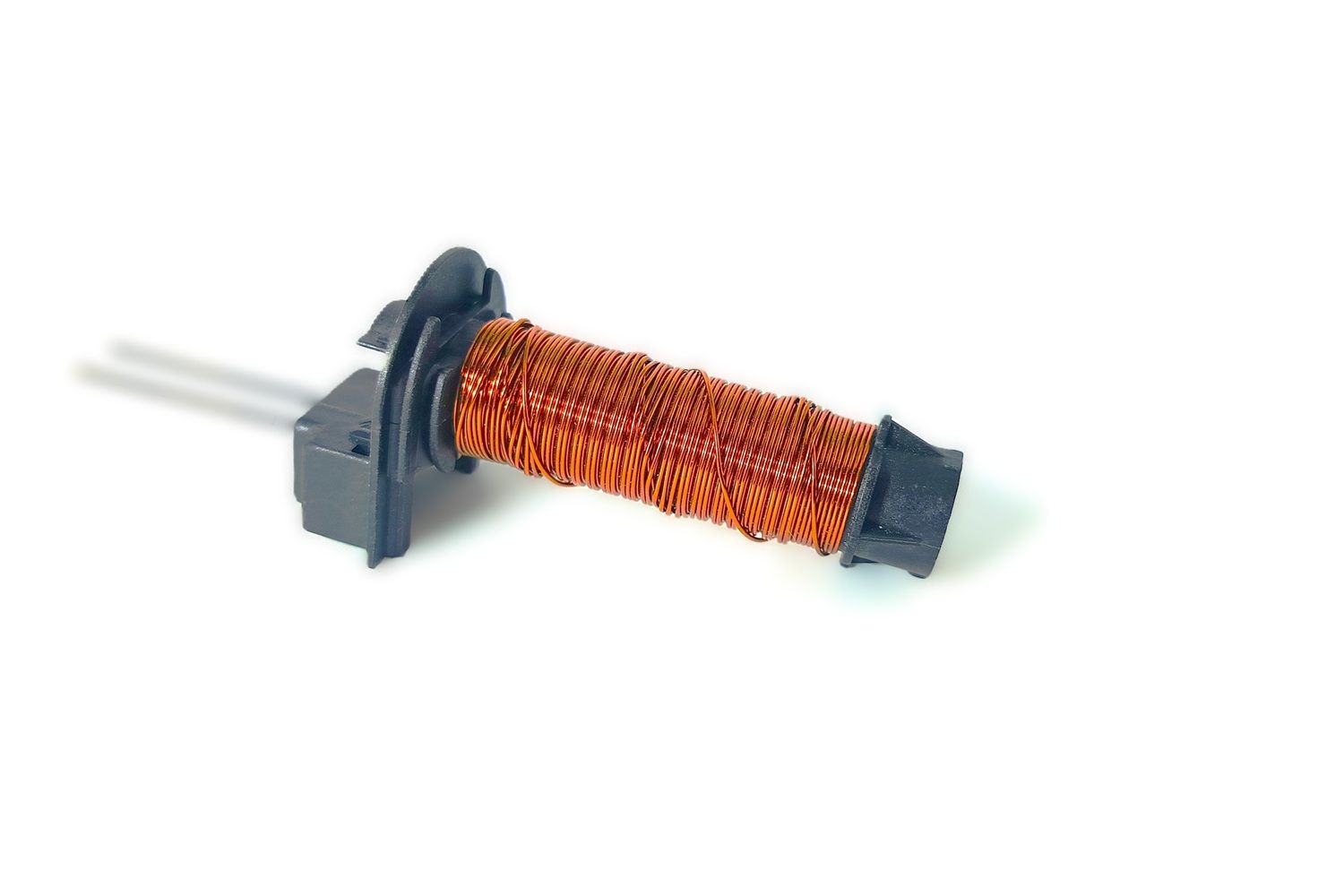

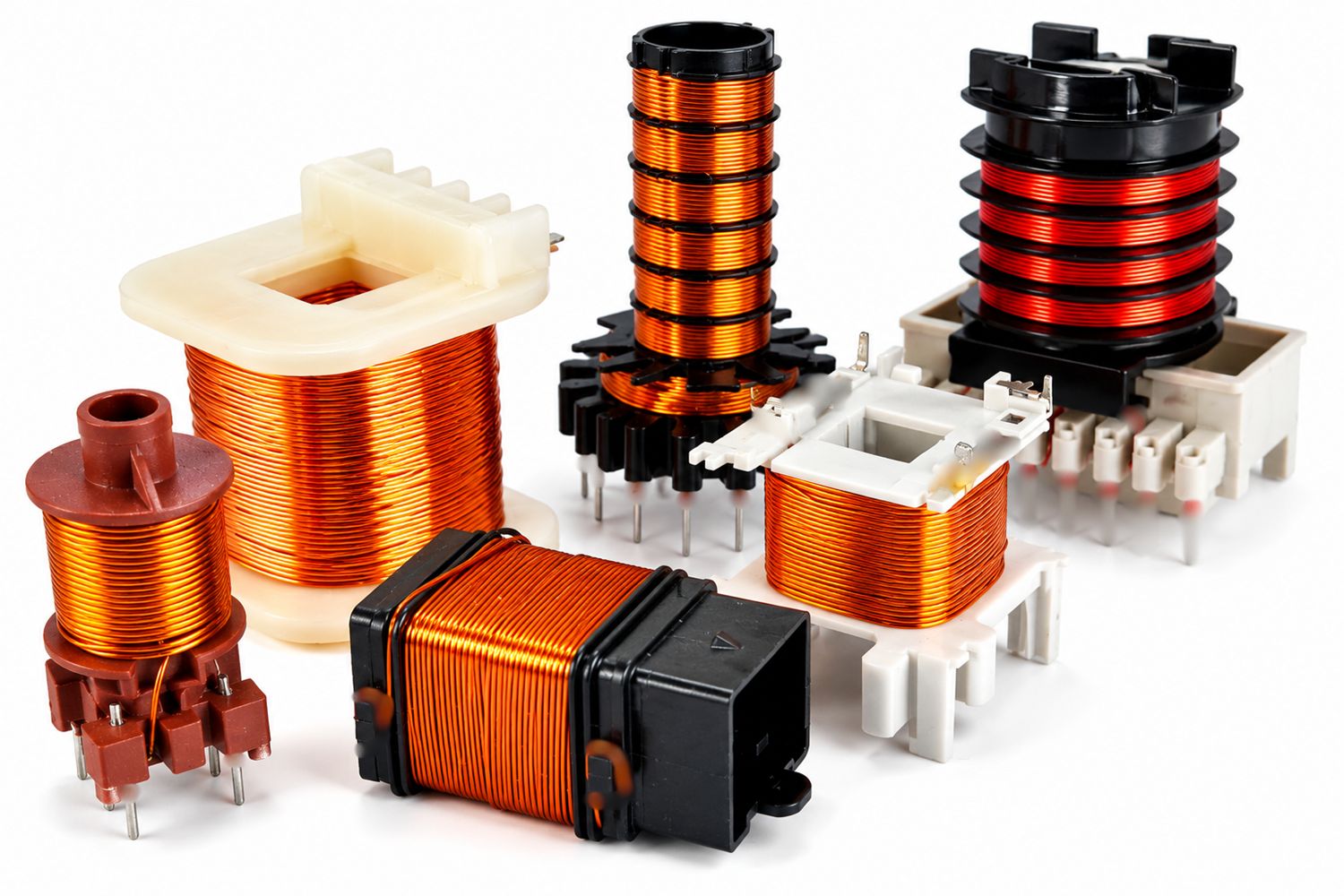

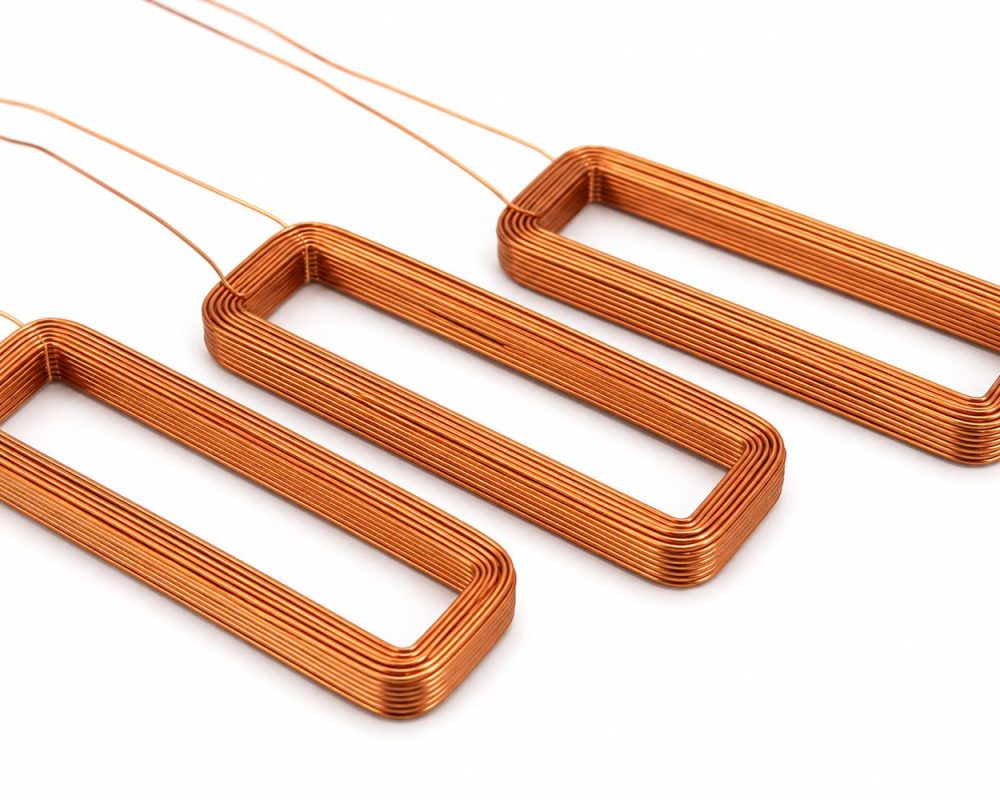

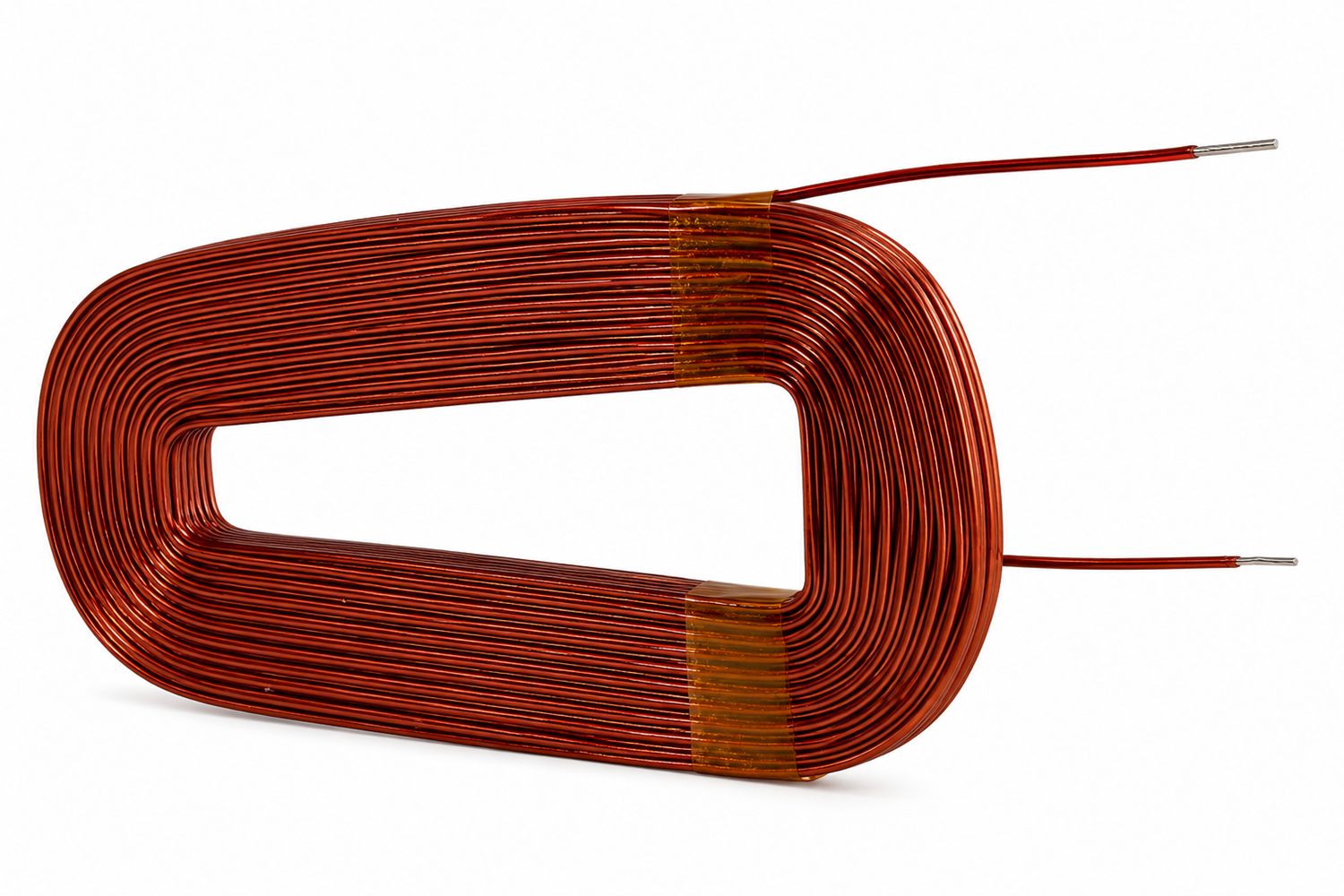

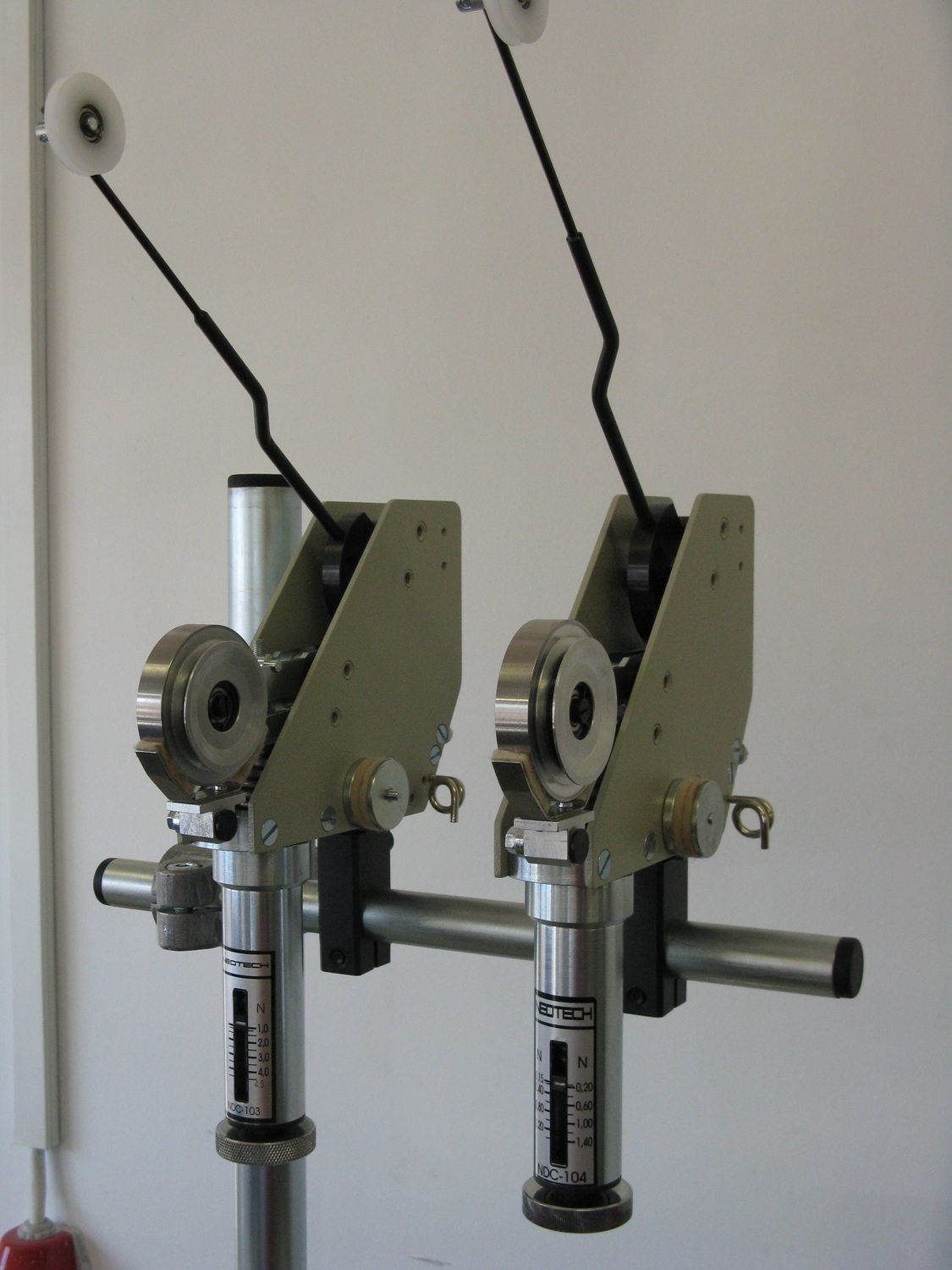

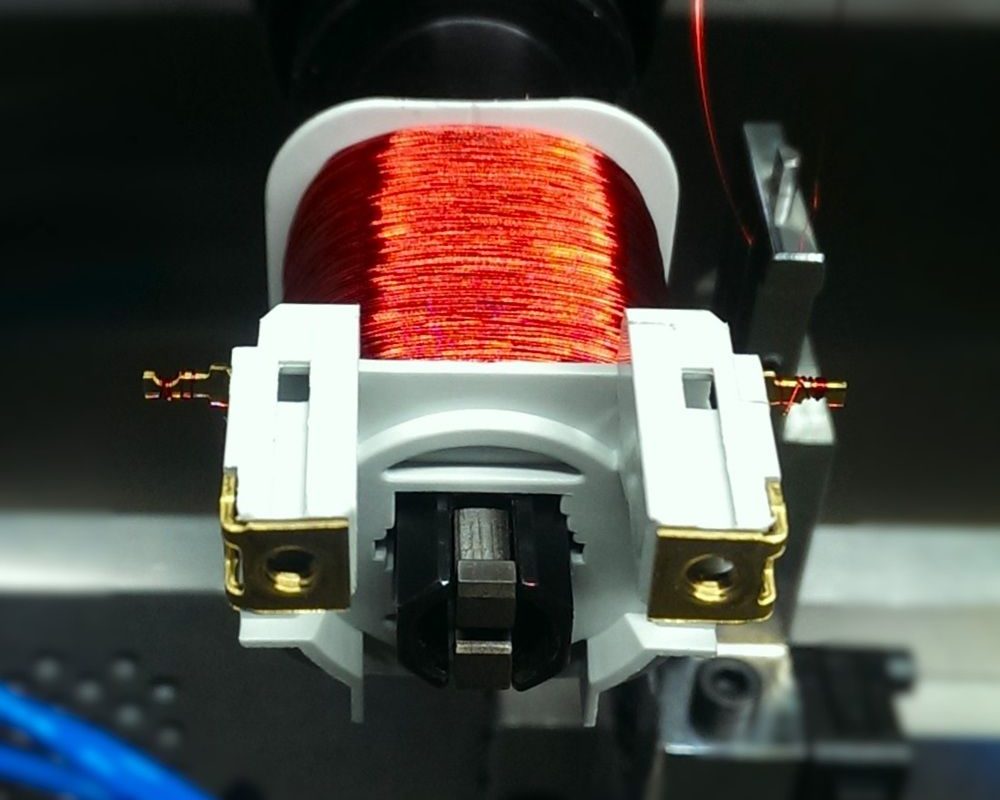

Gallery:
Products:
Description
NCJ-3X winders can be used as basic machines in production plants or in service. These devices are microprocessor controlled and equipped with a color touch panel for communication with the user.
The simplified mode of operation of the winder makes it easier to use in service. The advanced version of the machine software allows you to describe any sequence in the program: spindle movements, layer winding, guide movements, machine stop times. Proper use of the software allows you to perform coil starts, ends and taps. A PC can be used to program the winder. The winder communicates with the PC via an RS232 connection. (Since the RS232 connection is not standard in modern computers, a USB/RS232 converter can be used).
Technical parameters

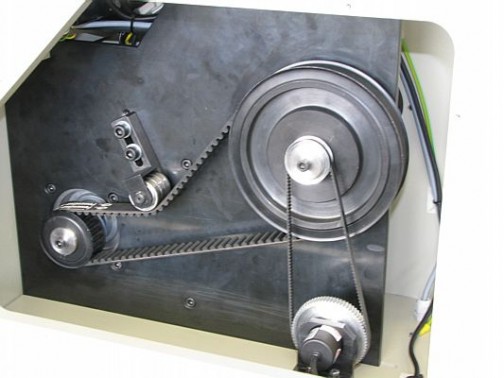

Parameter | NCJ-32F | NCJ-34F | NCJ-32S2 | NCJ-34S2 | NCJ-32S4 | NCJ-34S4 | ||
| Max coil diameter | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | ||
| Max coil length | 250 mm | 450 mm | 250 mm | 450 mm | 250 mm | 450 mm | ||
| Feed range | 200 mm | 400 mm | 200 mm | 400 mm | 200 mm | 400 mm | ||
| Feed resolution | 0,005 mm | |||||||
| Max feed speed | 500 mm/s | |||||||
| Spindle drive | Induction motor + inverter | 3000 rev/min (2,4 Nm) | 3000 rev/min (5 Nm) | |||||
| Max. winding speed | 7600 rev/min | 8300 rev/min | ||||||
| Dimensions (L × W × H [m]) | 1×0,75×1,2 | 1,25×0,75×1,2 | 1×0,75×1,2 | 1,25×0,75×1,2 | 1×0,75×1,2 | 1,25×0,75×1,2 | ||
Mass | 120 kg | 140 kg | 110 kg | 130 kg | 120 kg | 140 kg | ||
Drive | PLC controller + touch panel | |||||||
Power connection | 230 V / 50 Hz | |||||||
Power usage | <2,5 kVA | <2 kVA | <4,5 kVA | <2 kVA | <4,5 kVA | |||
Additional equipment

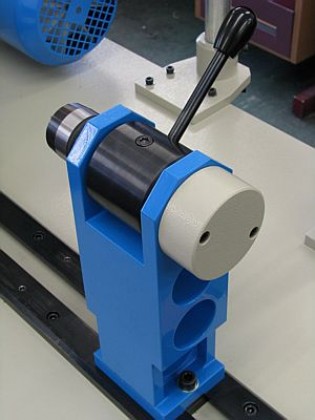

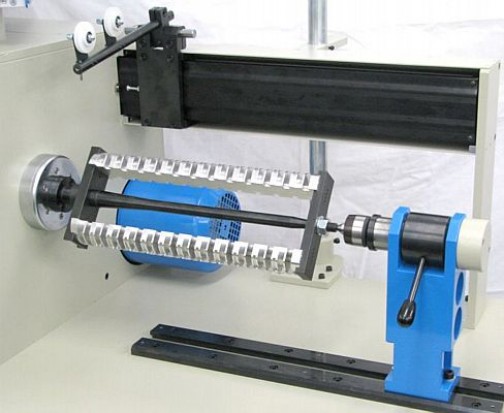

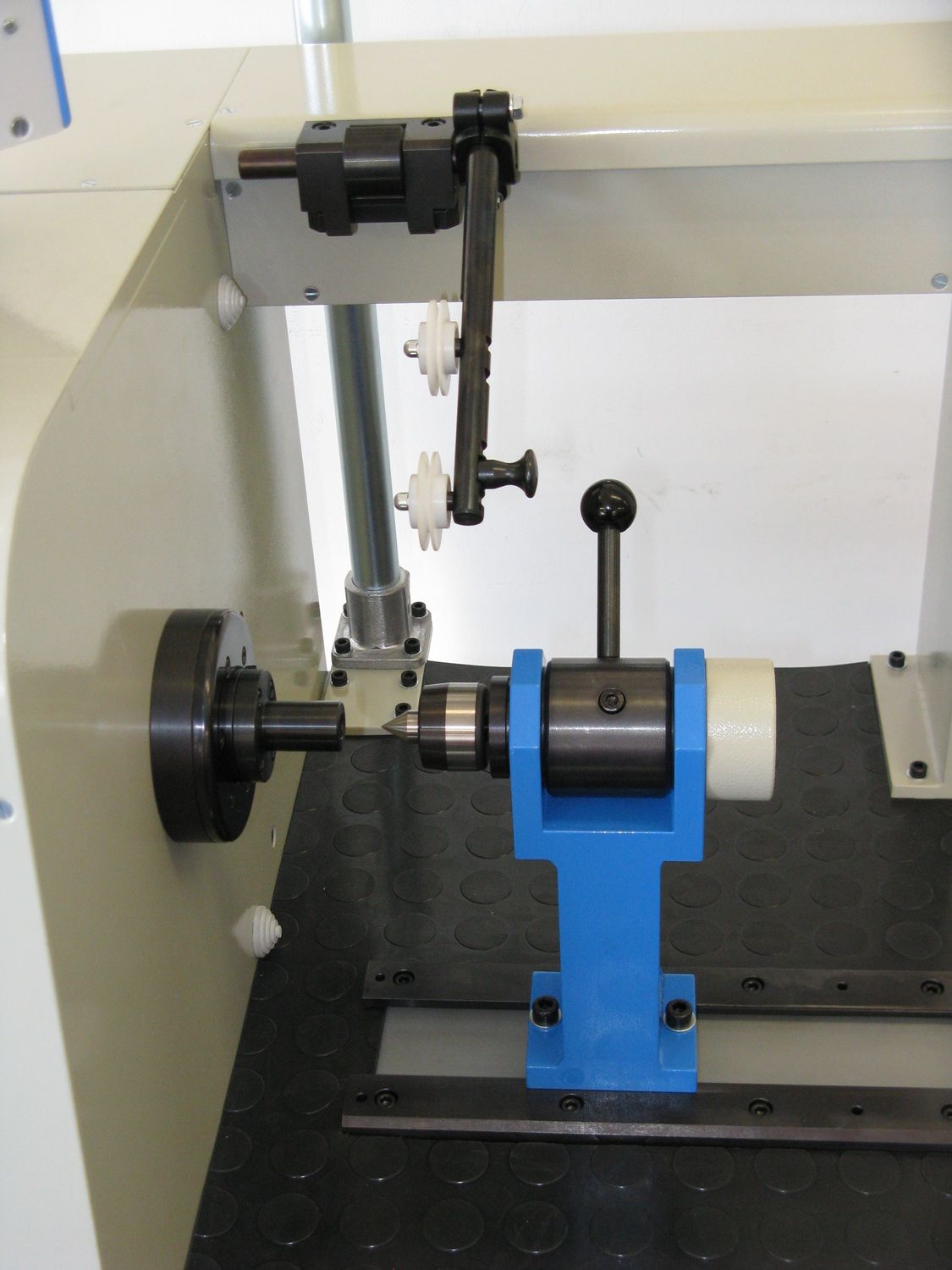

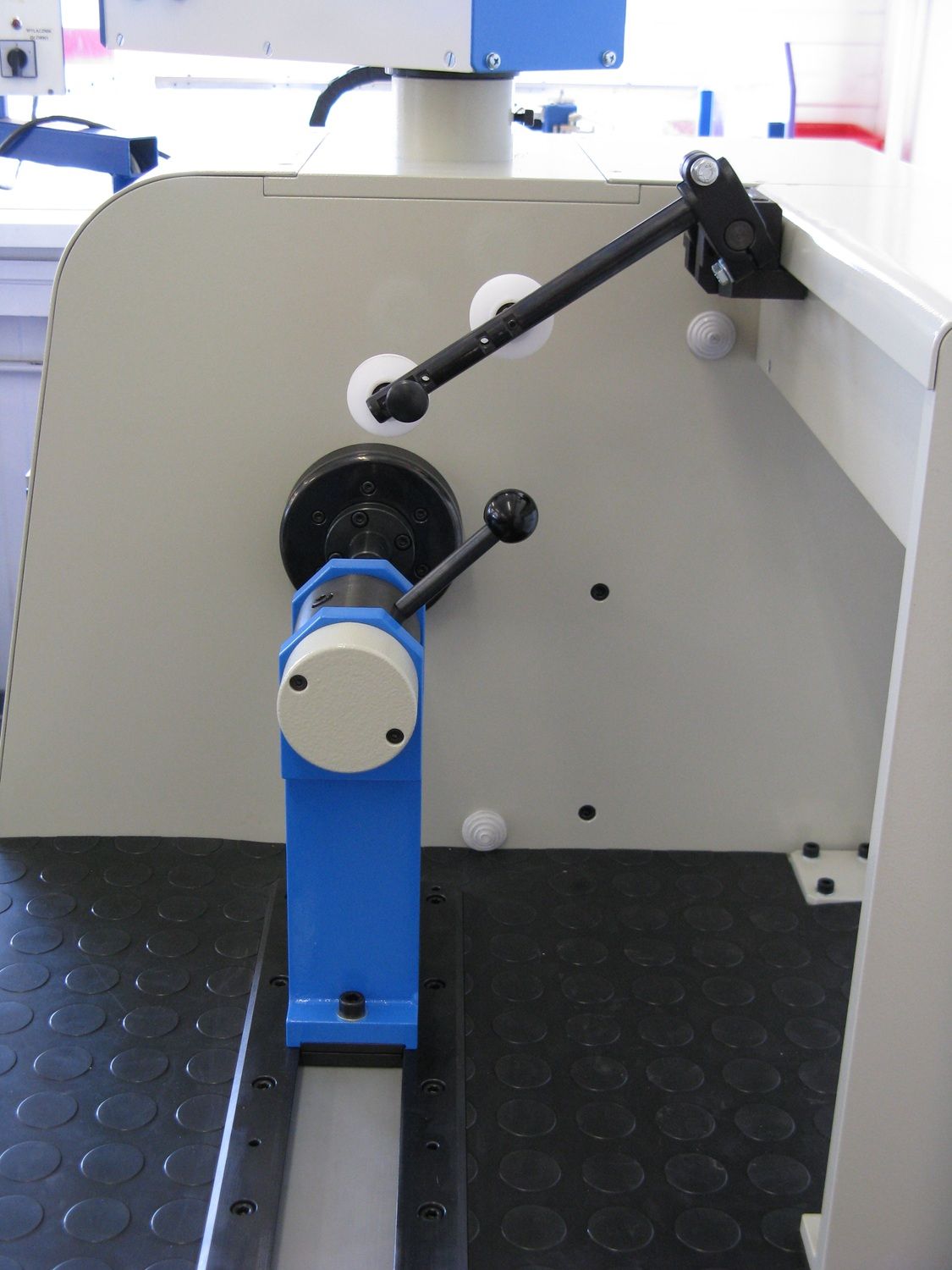

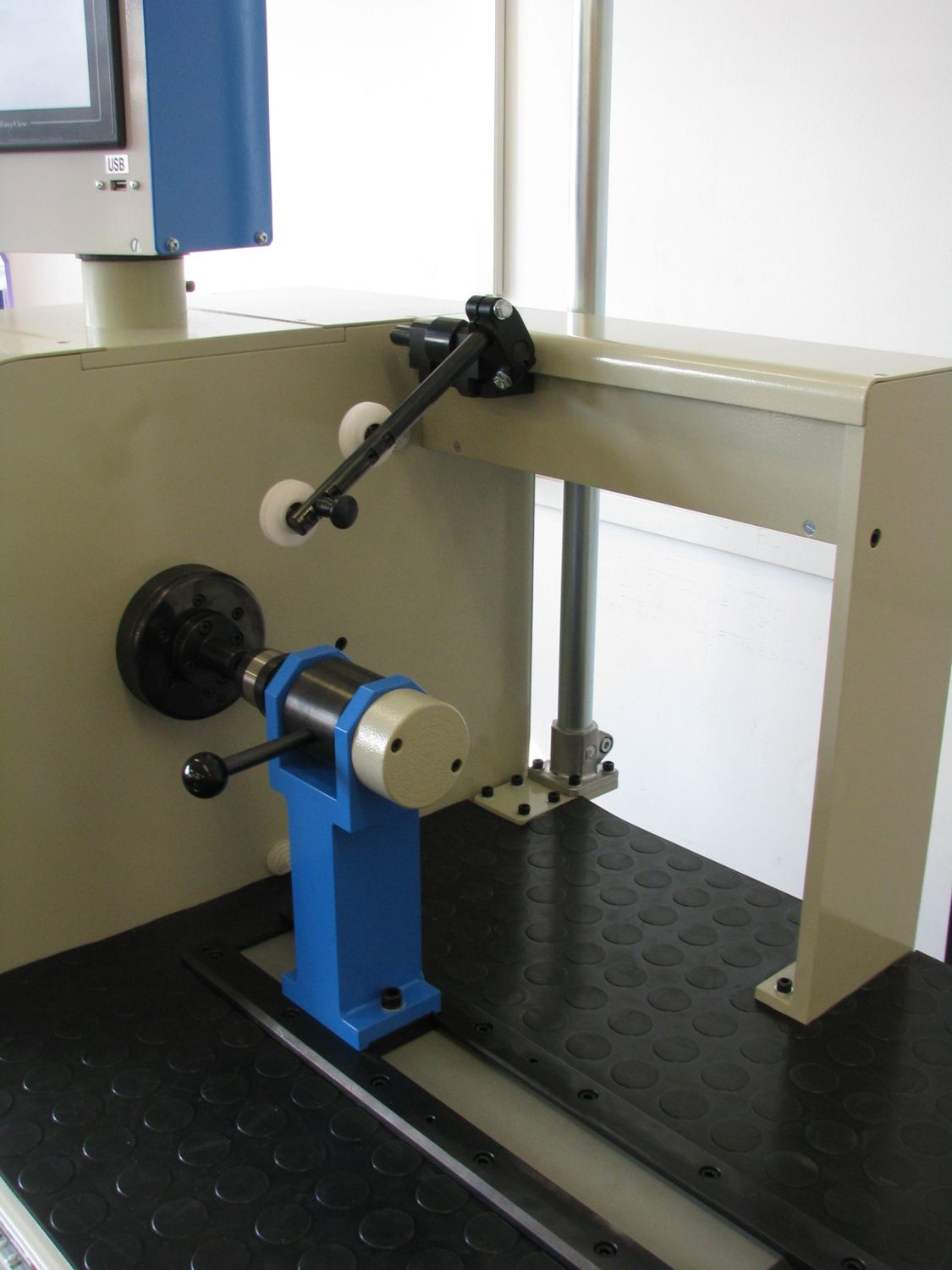

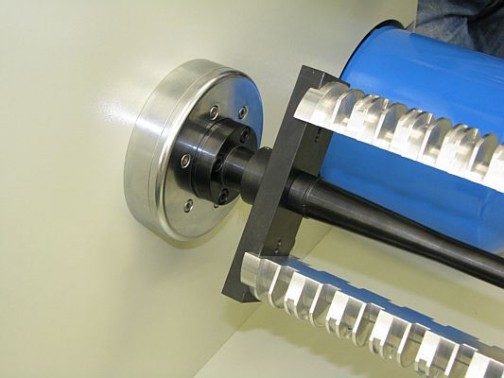

As standard, the winders are equipped with a single wire guide. Additionally, you can buy a tailstock supporting the carcass. The tailstock can be closed manually or pneumatically. NCJ-xKNR and NCJ-xKNP respectively. The winder allows for winding several carcasses simultaneously on a common mandrel. For such winding, it may be necessary to precisely set the wire guide for each carcass individually. This is possible thanks to the guide with precise position adjustment type NCJ-PR.
Additional equipment | Description |
NCJ-3KNR | Tailstock – manual drive |
NCJ-3KNP | Tailstock – pneumatic drive |
NCJ-PR | Wire guide with precise adjustment |
NCJ-PS | Standard wire guide |
NCJ-WN | Foot switch with spindle speed control |
| NCJ-210 | Attachment for winding large diameter coils |
| NCJ-ST32 lub 34 | Table for winder |
