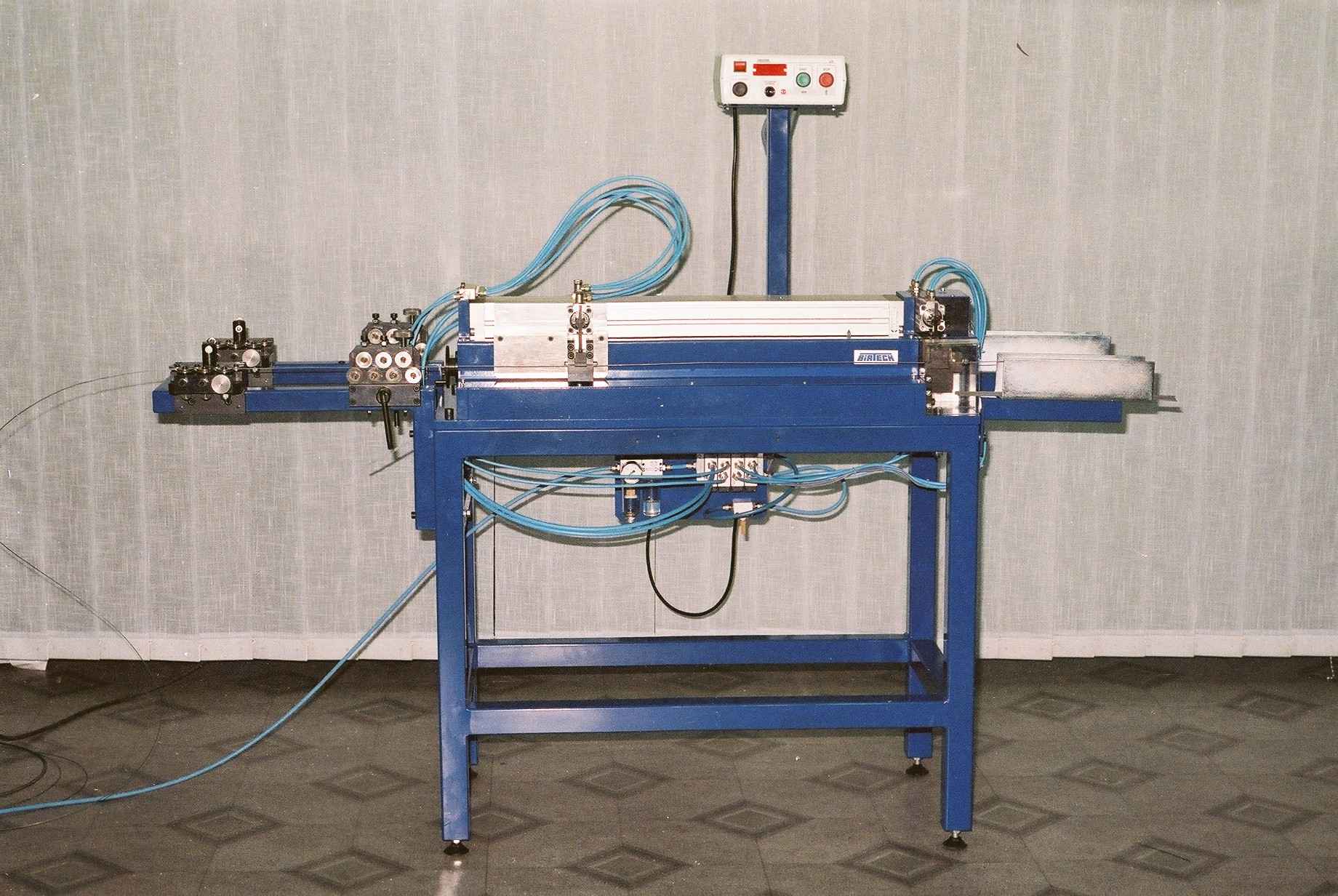

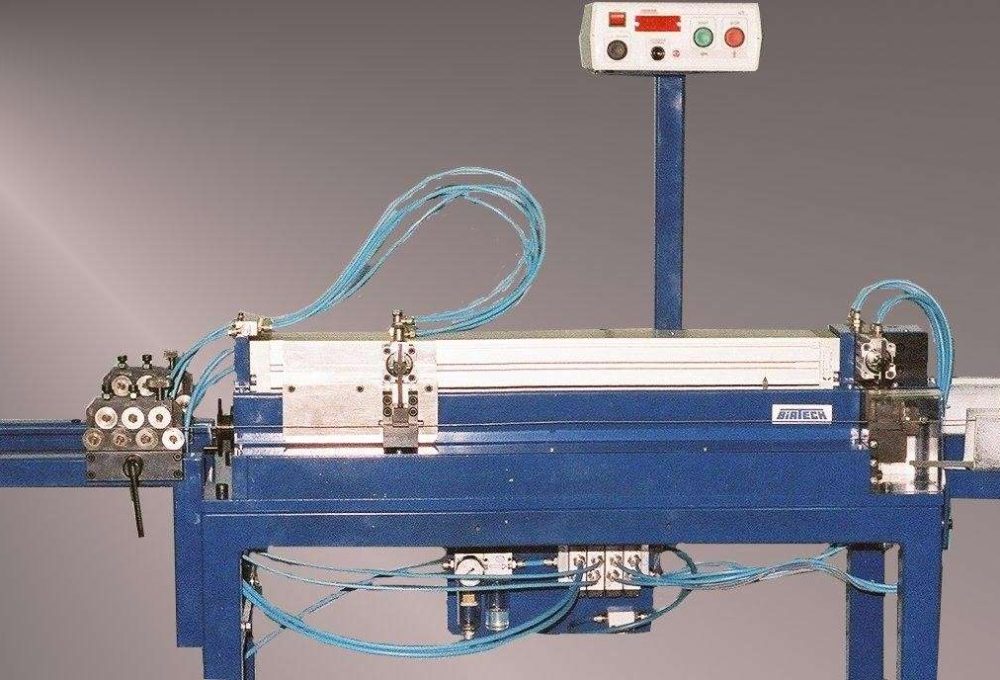

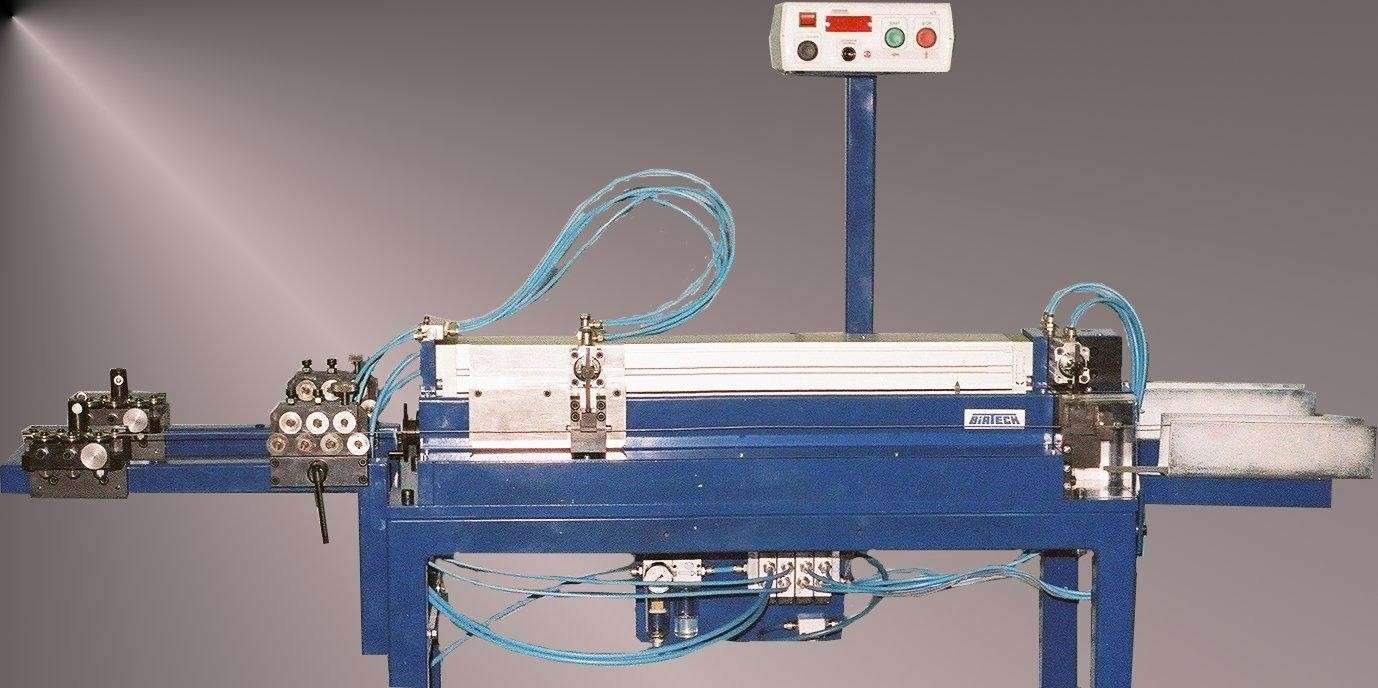

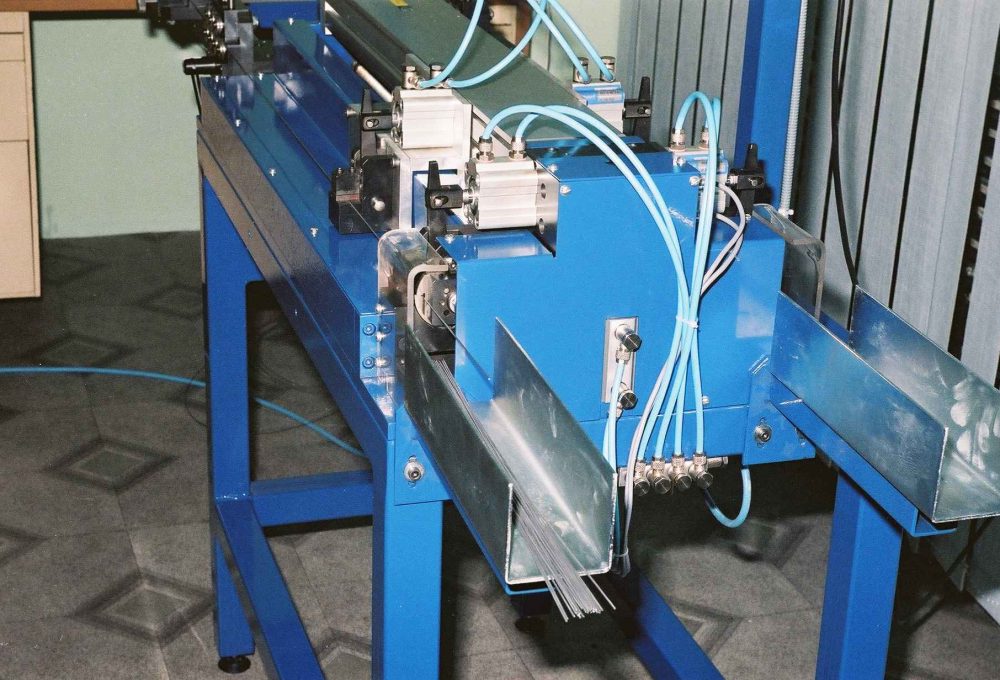

UCD-01 is a device for measuring and cutting steel or copper wire. The machine has a double measuring and cutting system to increase the efficiency of the device.

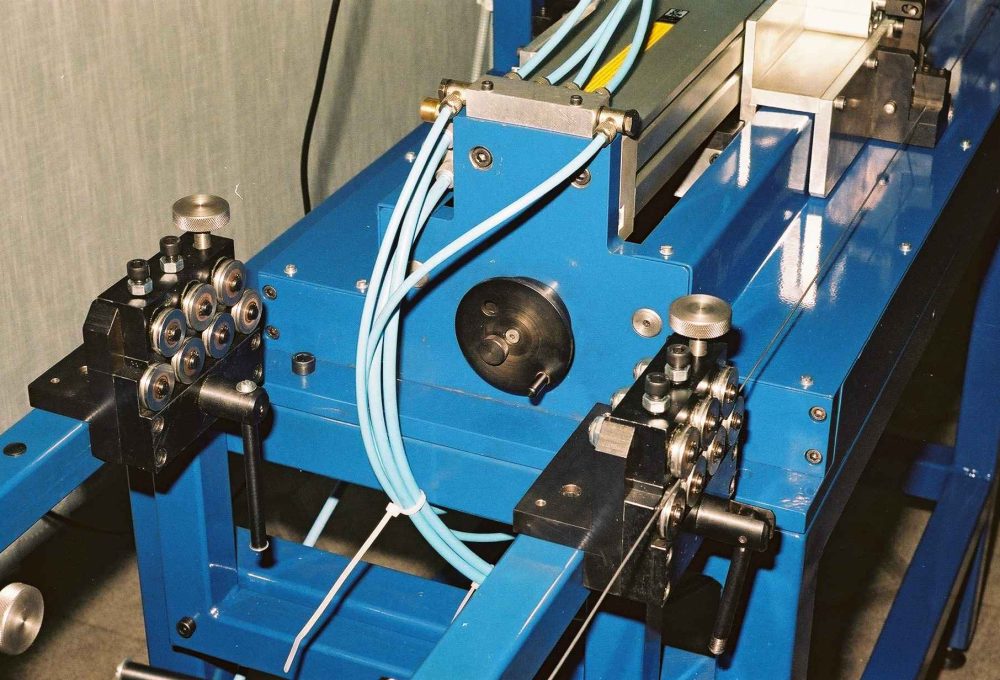

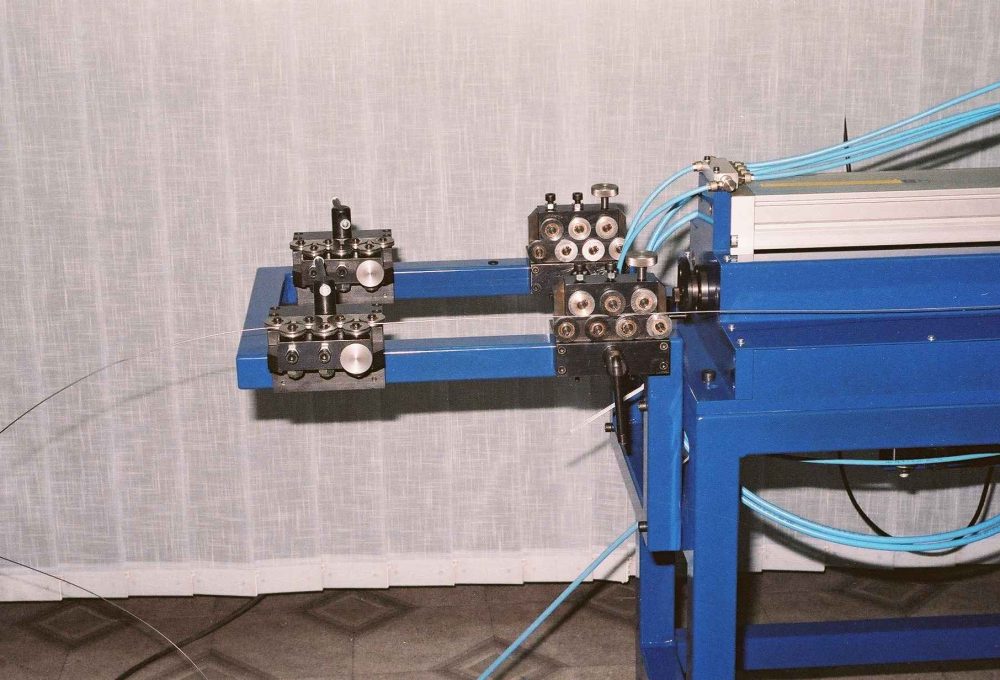

The machine is equipped with a two-plane straightening system. The measuring length is set mechanically. The controller counts the cut elements and allows programming the quantity to be made. The device works with unwinders, e.g. ODD-01.
Gallery:
WIRE MEASURING AND CUTTING MACHINE
Technical parameters:
Parameter | UCD-01 | |||
| Steel wire diameter | 0,5 ÷ 2 mm | |||
| Copper wire diameter | 0,8 ÷ 4 mm | |||
| Max. length of cut wire for single cut | 500 mm | |||
| Max. length of cut wire for multiple cutting | Limited by the length of the receiving table | |||
| Precision | 0,1 mm | |||
| Power | 230 V / 50 Hz | |||
