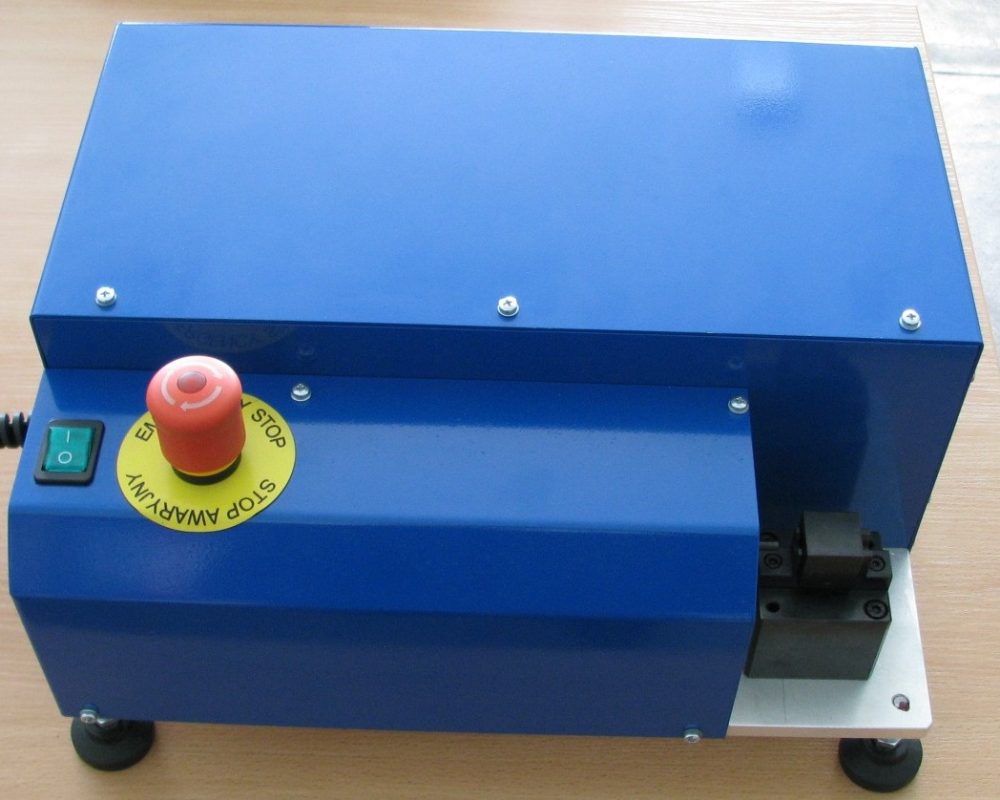

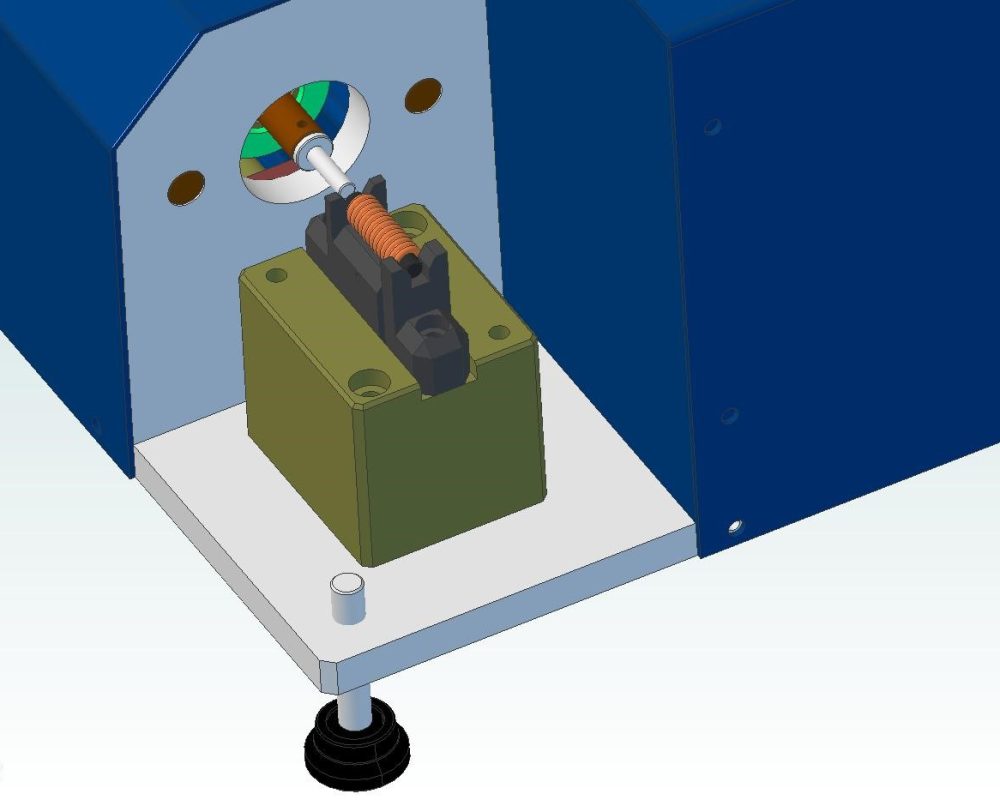

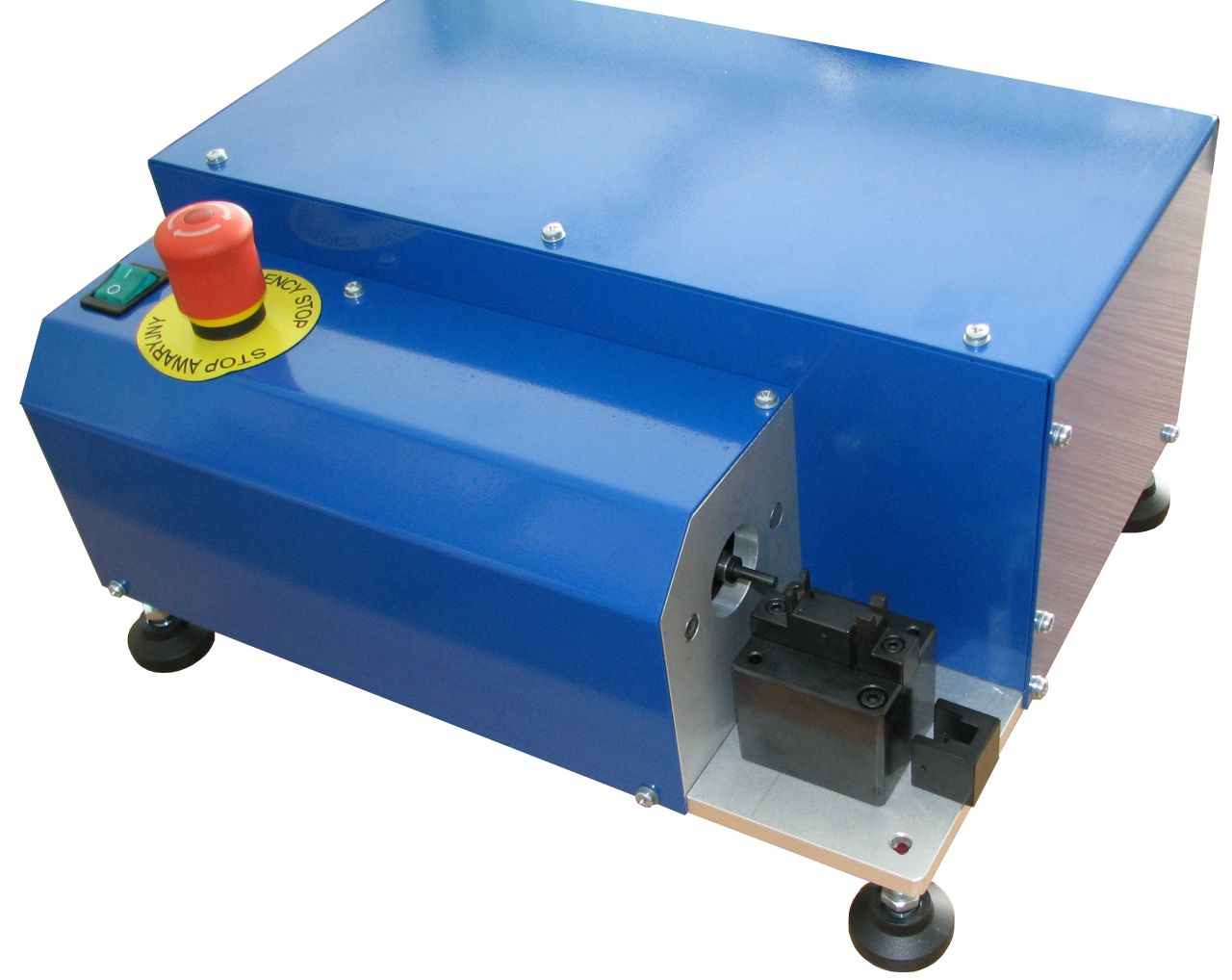

The device is designed to measure the core insertion force in Z-type chokes.
The device driver is any PC with Windows XP or later equipped with a USB port. The device itself does not have control logic.
Gallery:
Technical parameters:
Parameter | SWR-DZ | |||
| Force measurement range | max. 50 N | |||
| Operating temperature | 15 ÷ 30°C | |||
| Dimensions (L × W × H) [m] | 0,4 × 0,3 × 0,2 | |||
Mass | 19 kg | |||
Power connection | 230 V / 50 Hz | |||
Power consumption | 0,068 kVA | |||
