The UWT-01 cutting device is a specialised machine, used to cut out narrowings in silver tape for high-voltage fuses. The device allows cutting out tape with a thickness in the range of 0.03 ÷ 0.4 mm.
UWT-01 enables smooth adjustment of the cut-out division value. It is possible to make replaceable die elements, which allows obtaining a tape in accordance with technological requirements.
The UWT-01 machine operates in an automatic cycle. Continuous operation is possible until the tape is finished in the unwinding reel or work with a set length of tape to be made.

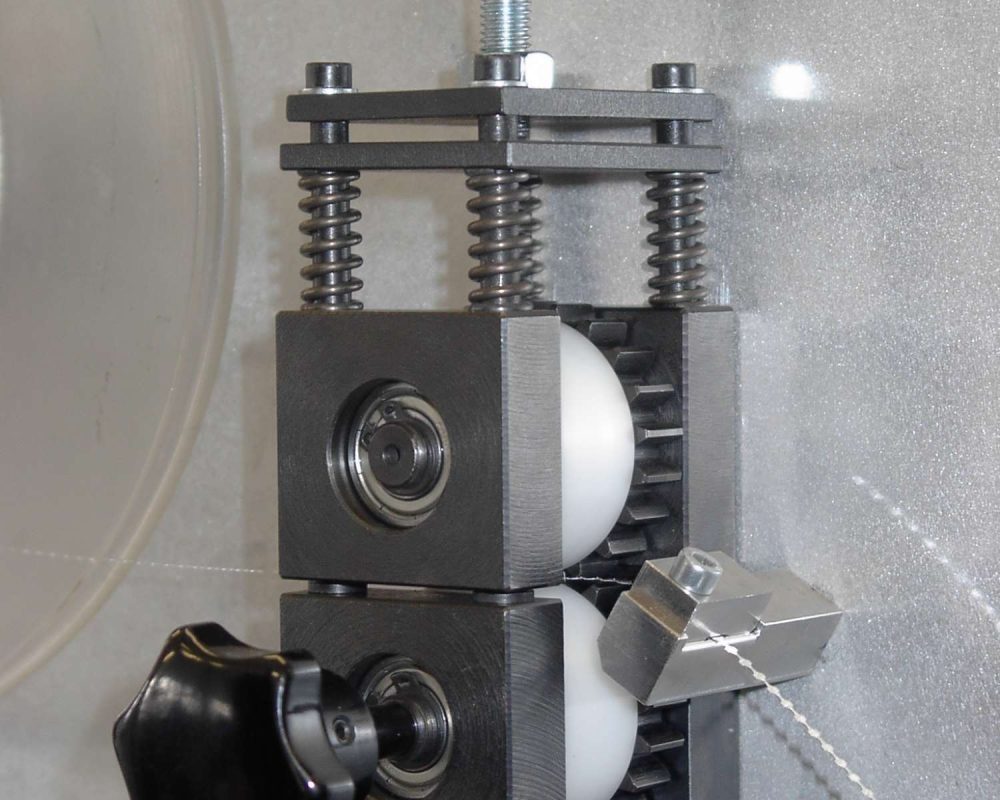

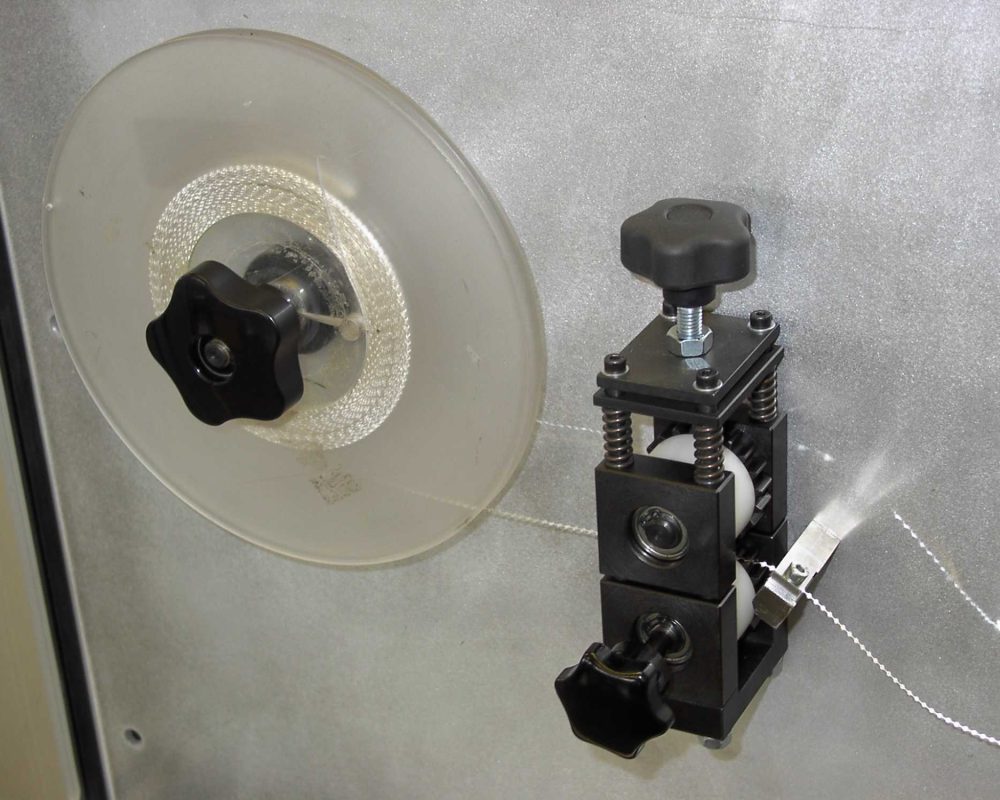

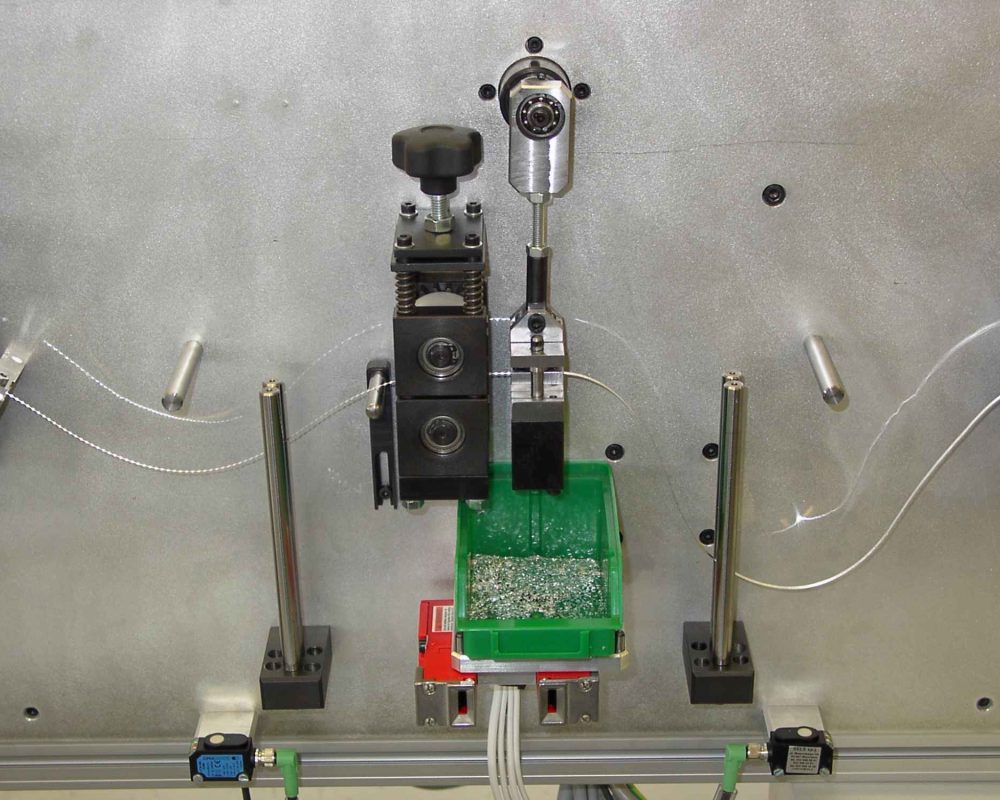

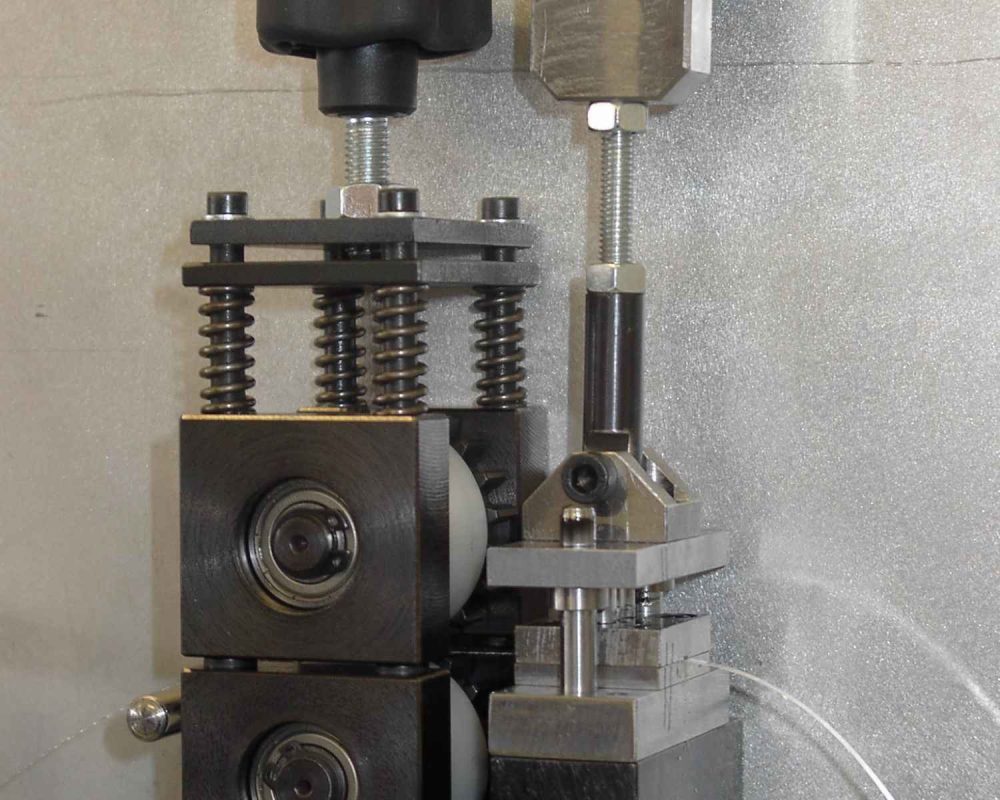

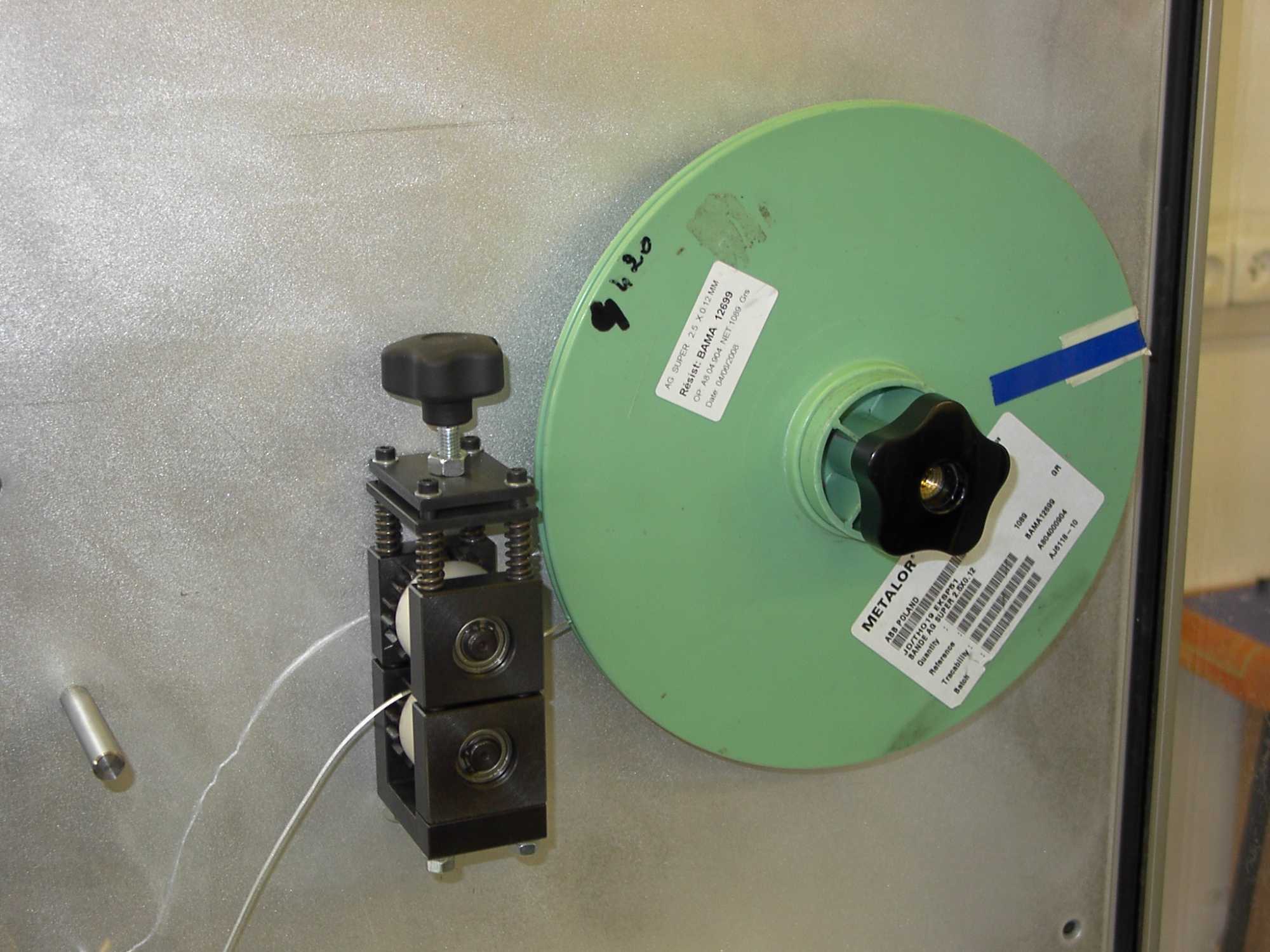

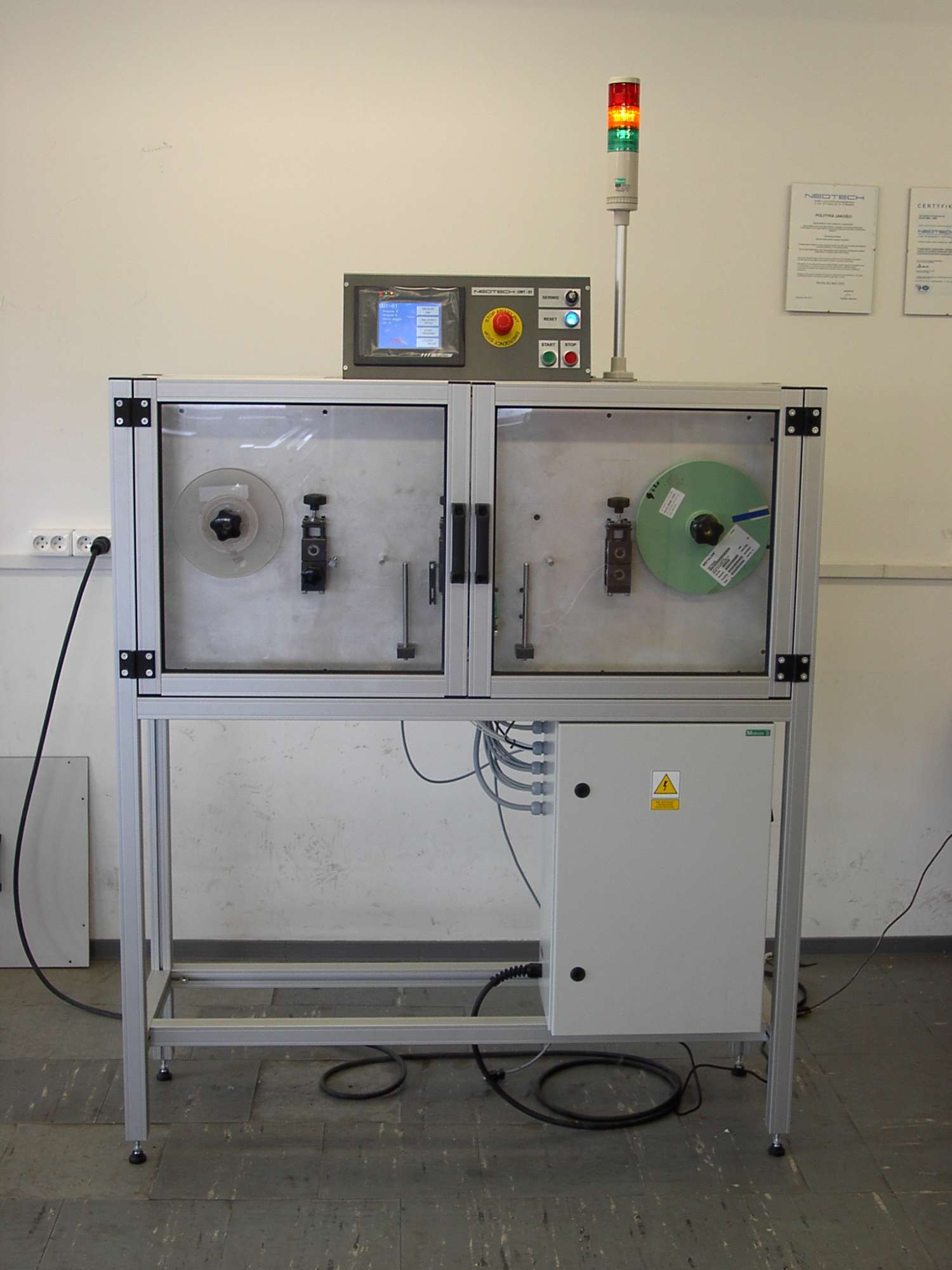

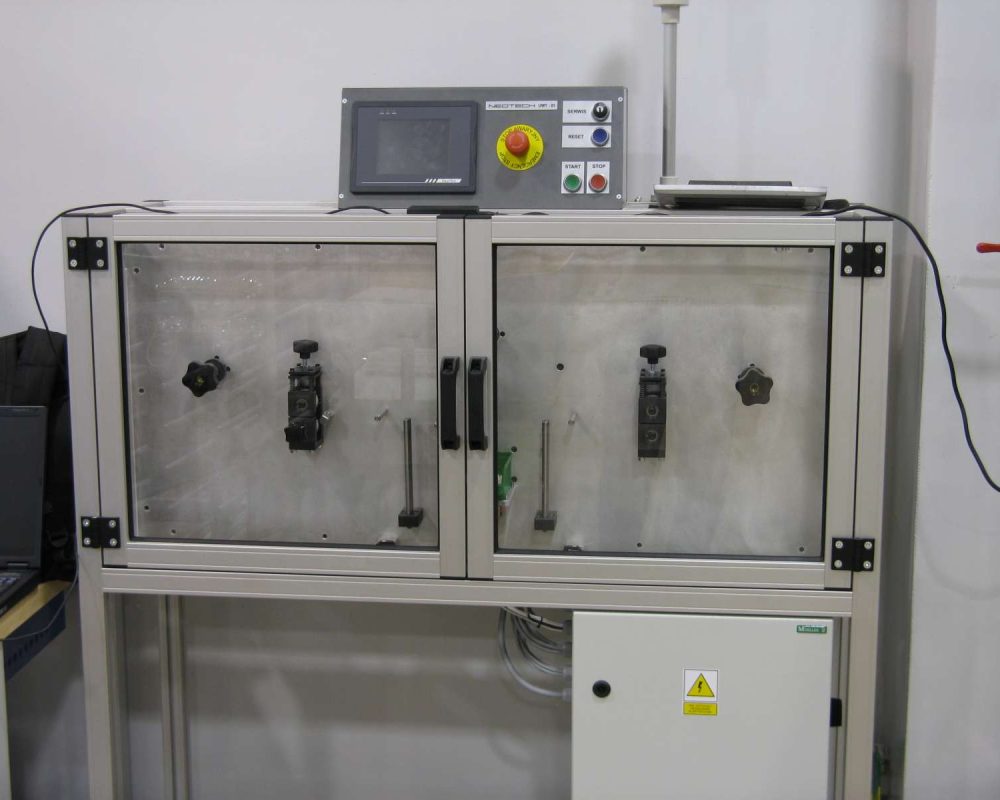

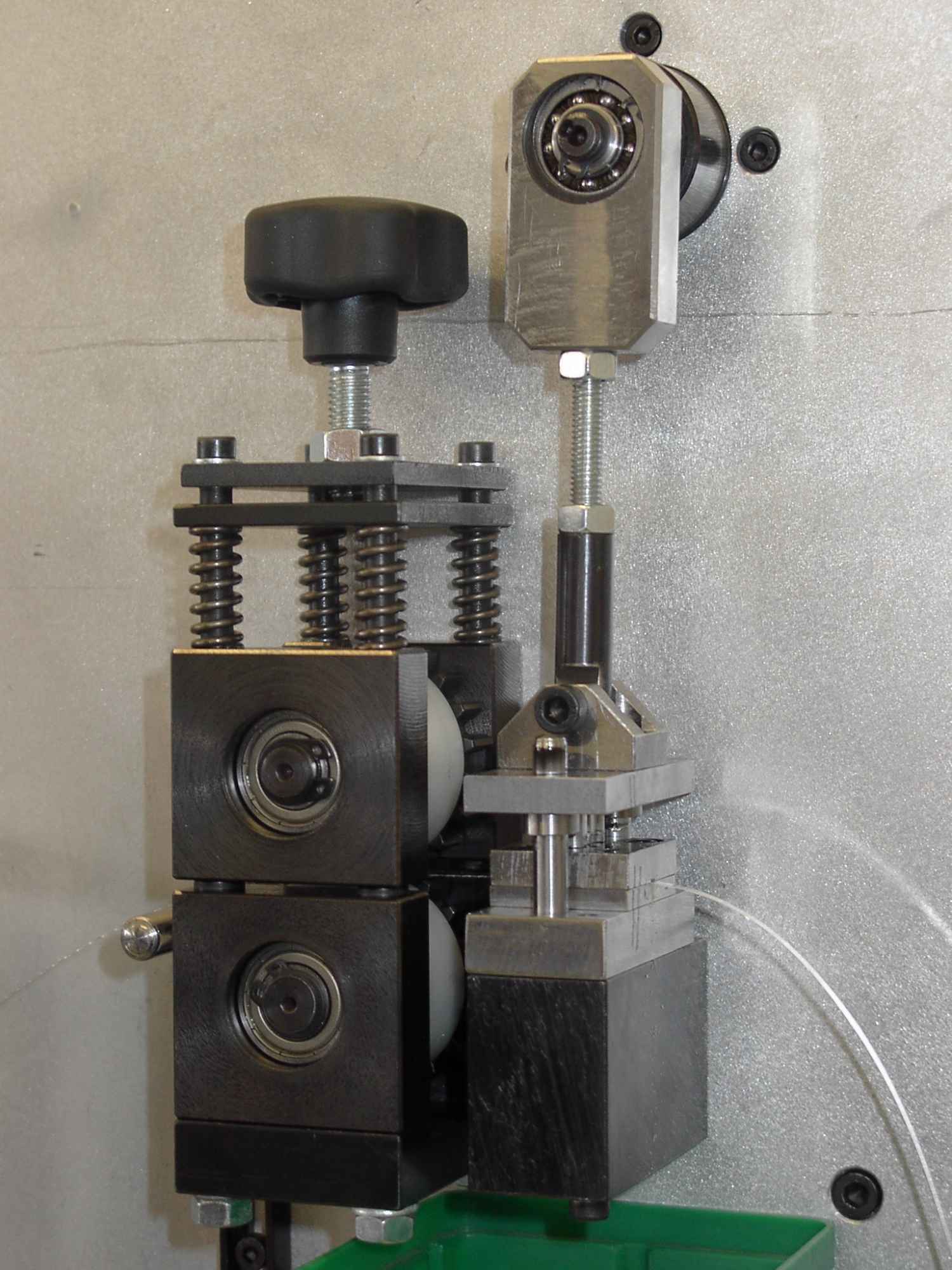

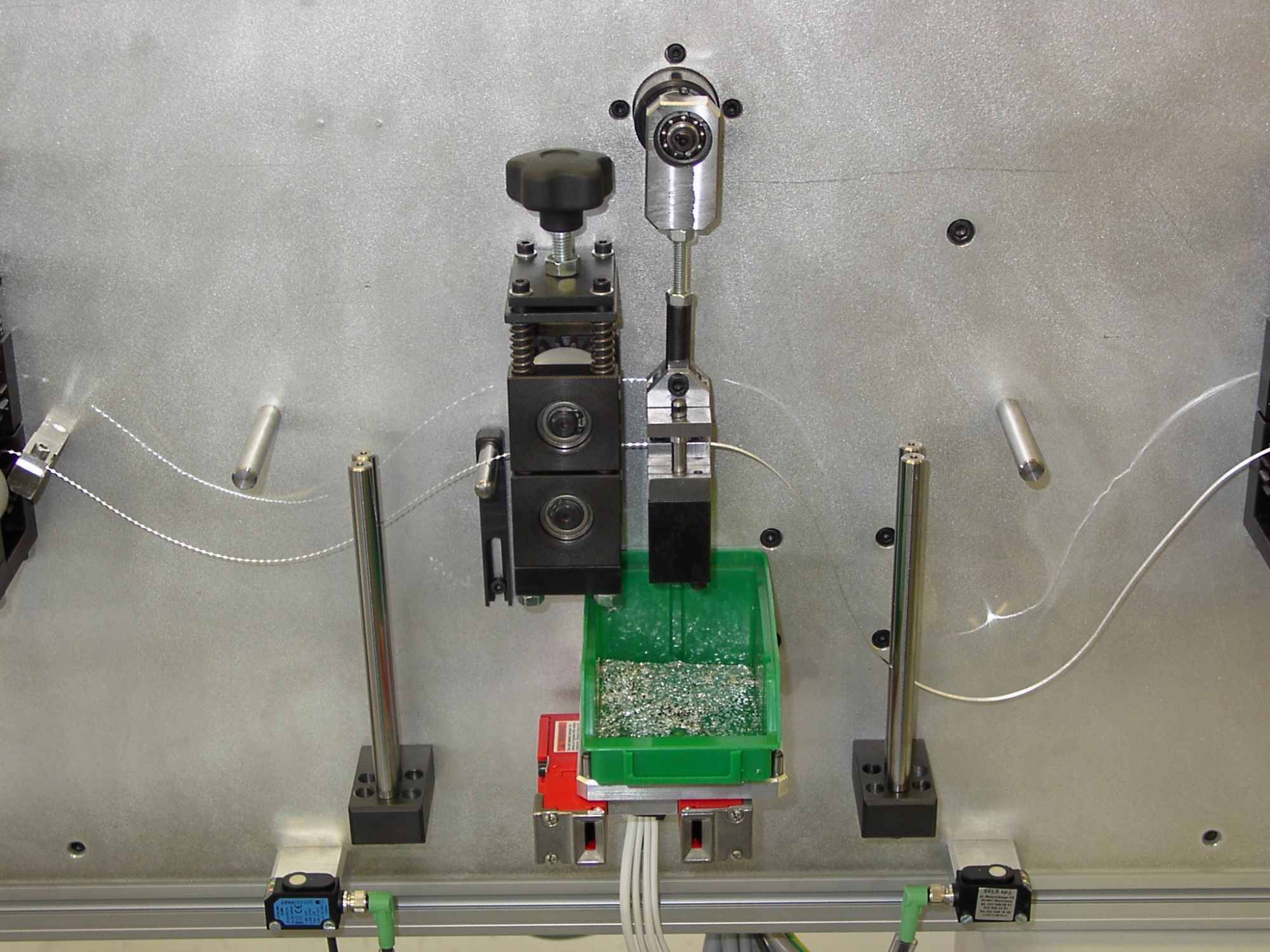

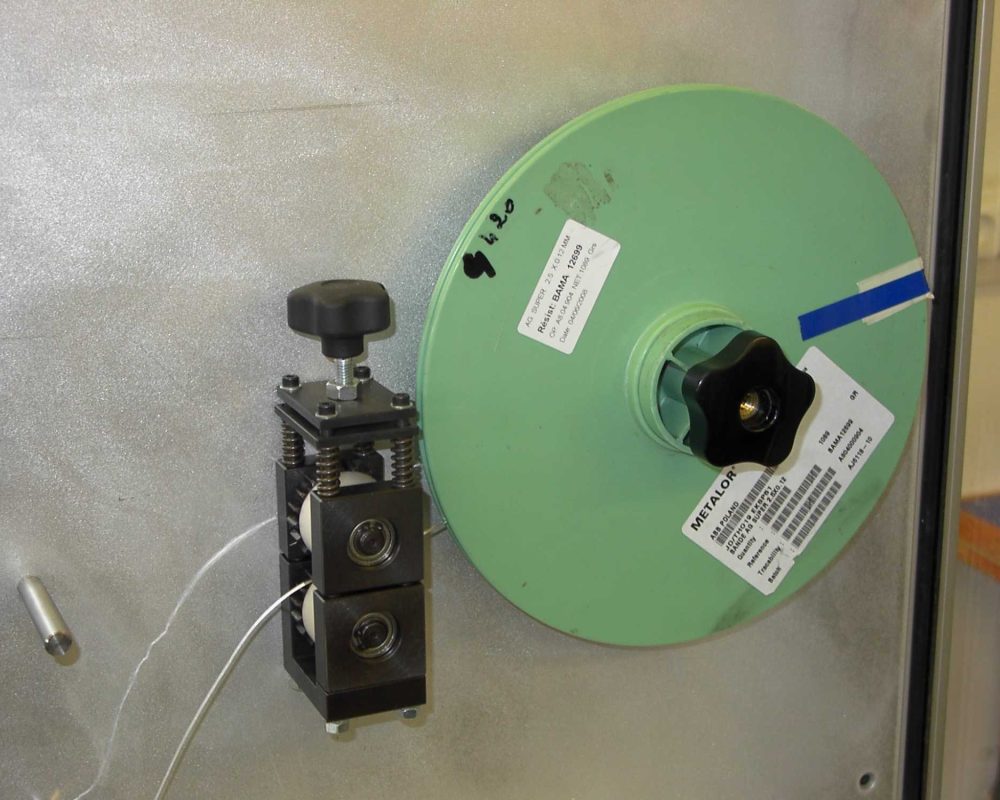

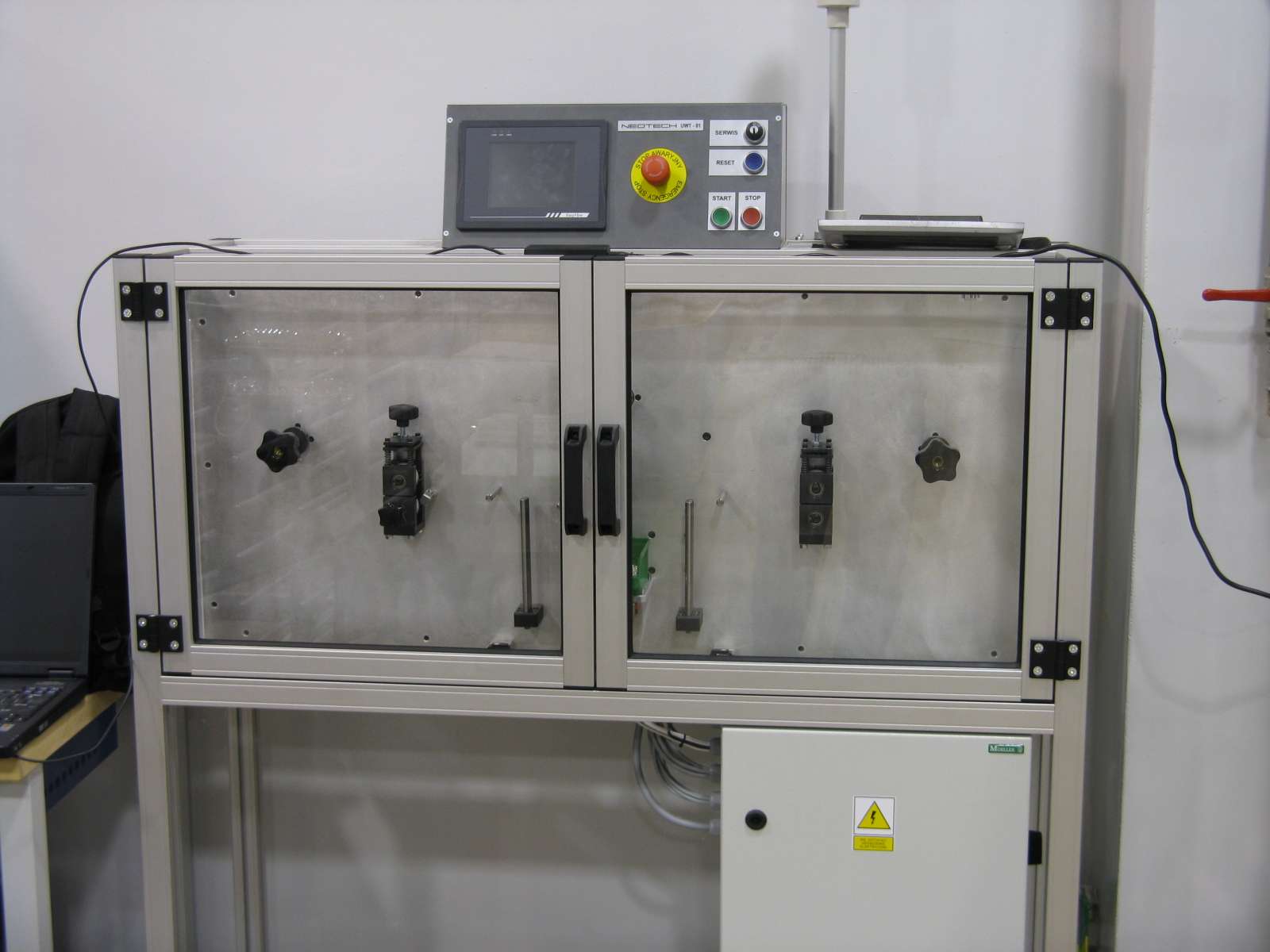

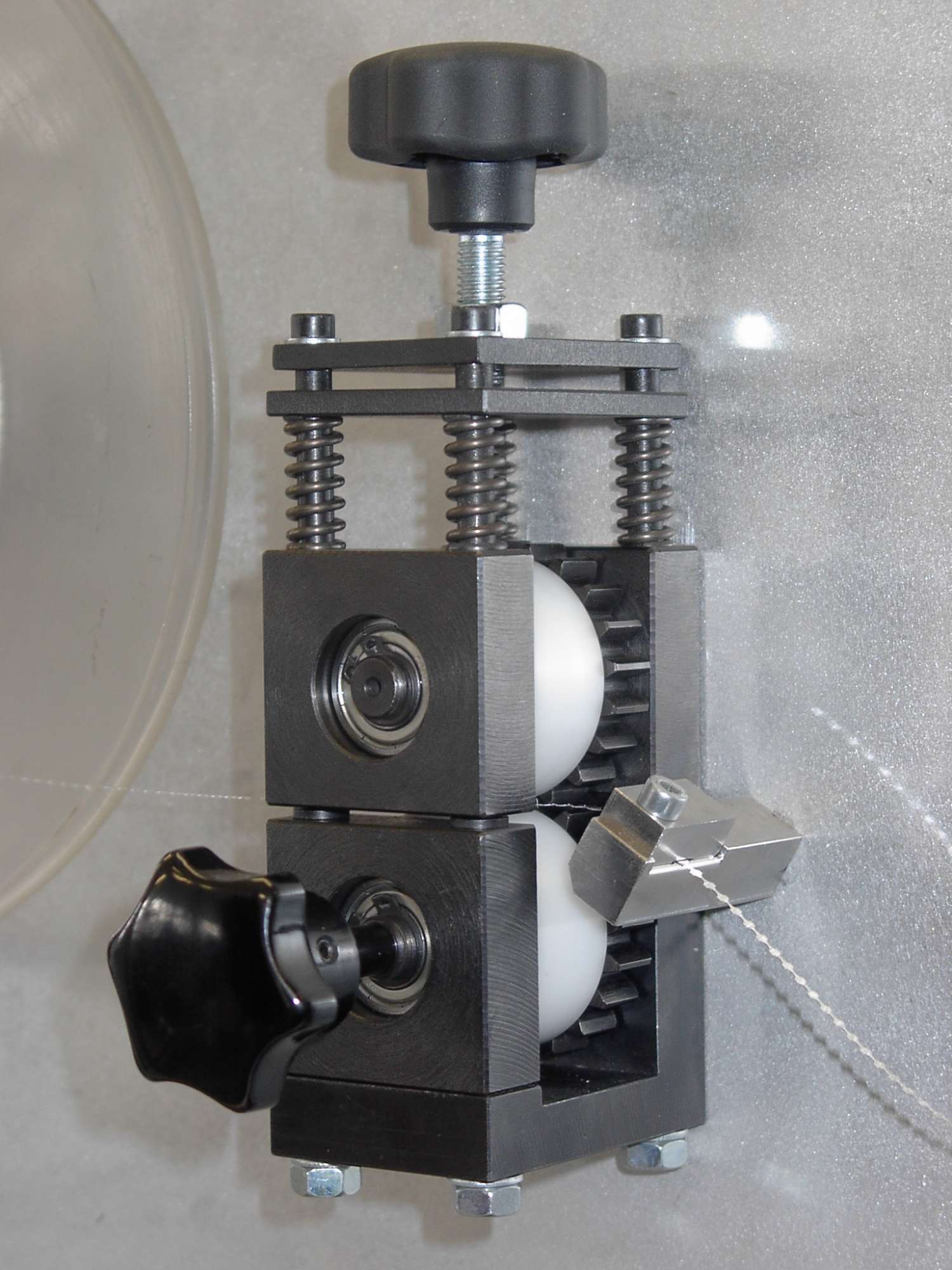

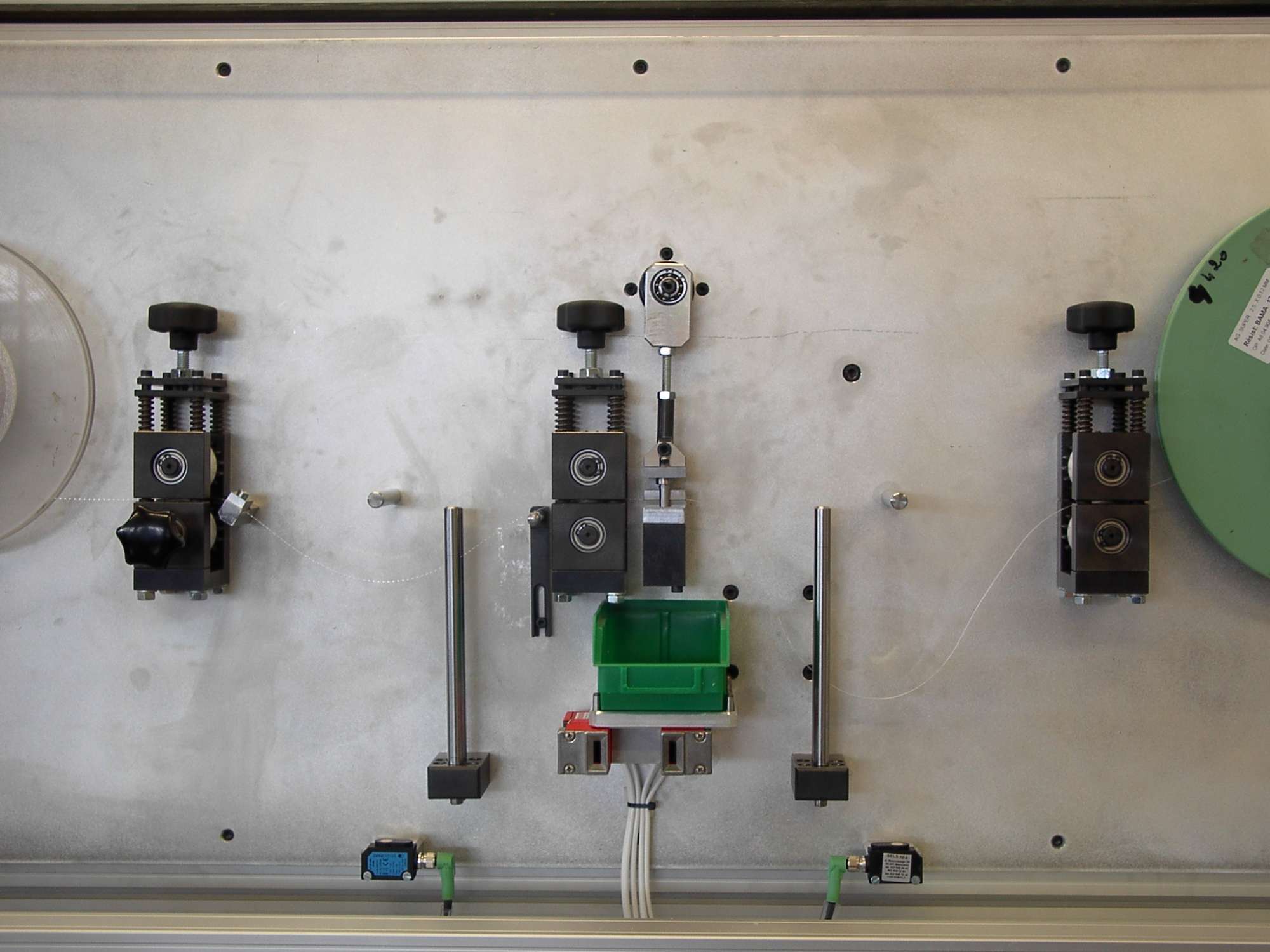

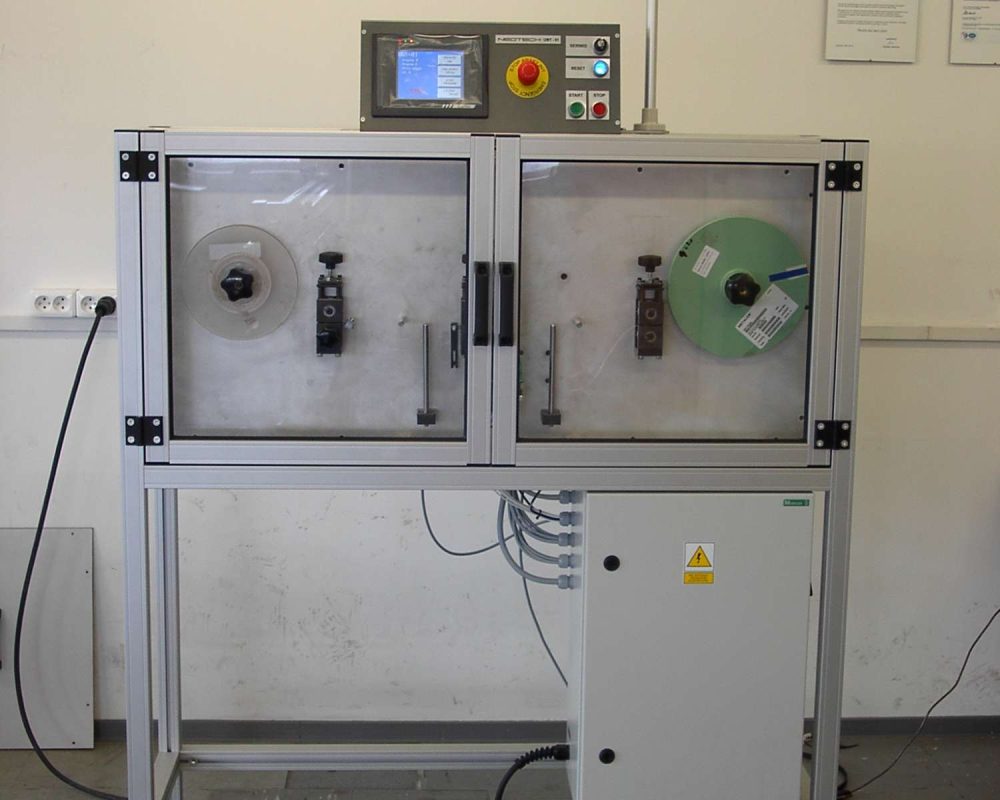

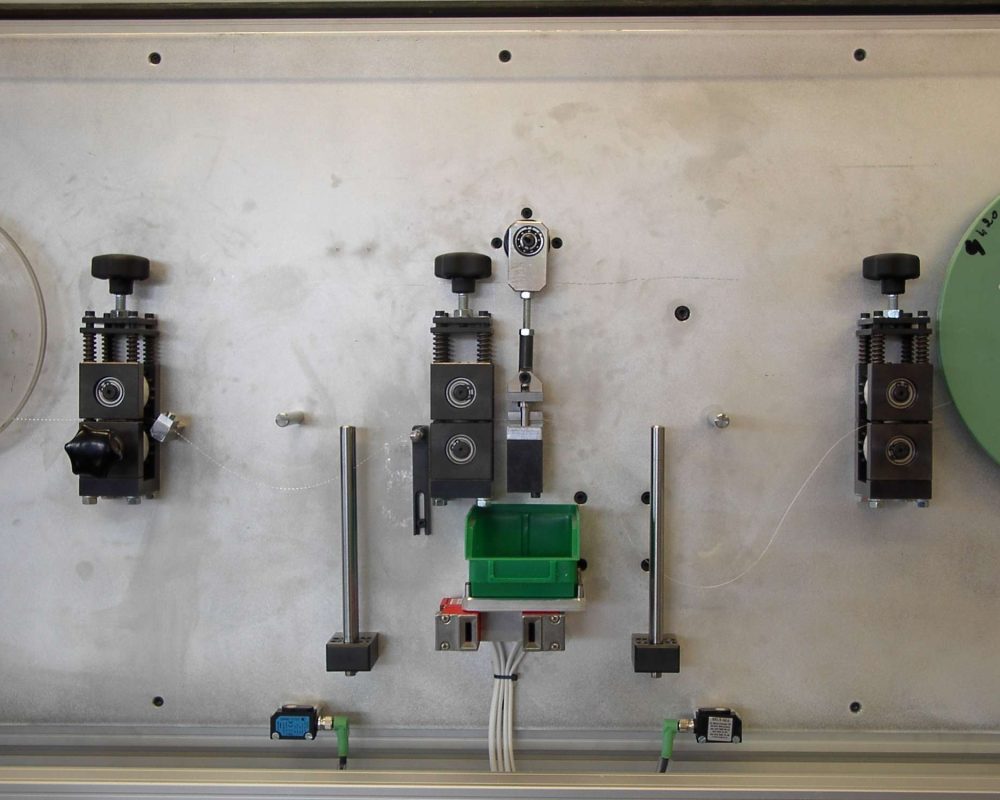

Gallery:
Parameter | UWT-01 | |||
Dimensions (L × W × H [m]) | 1,25 × 0,48 × 2,18 | |||
Mass | 200 kg | |||
Power | 230 V / 50 Hz | |||
Power usage | 1 kVA | |||
