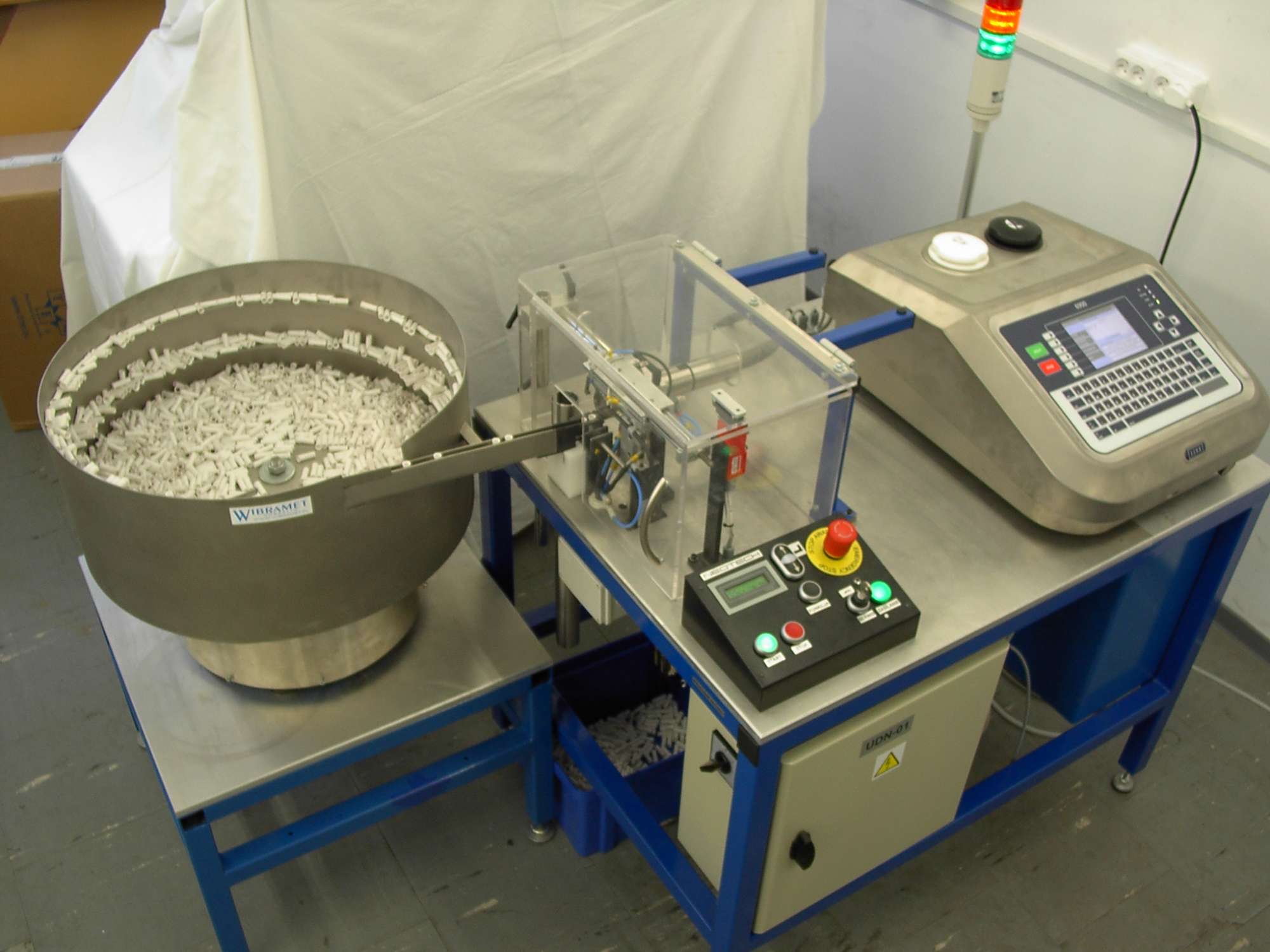

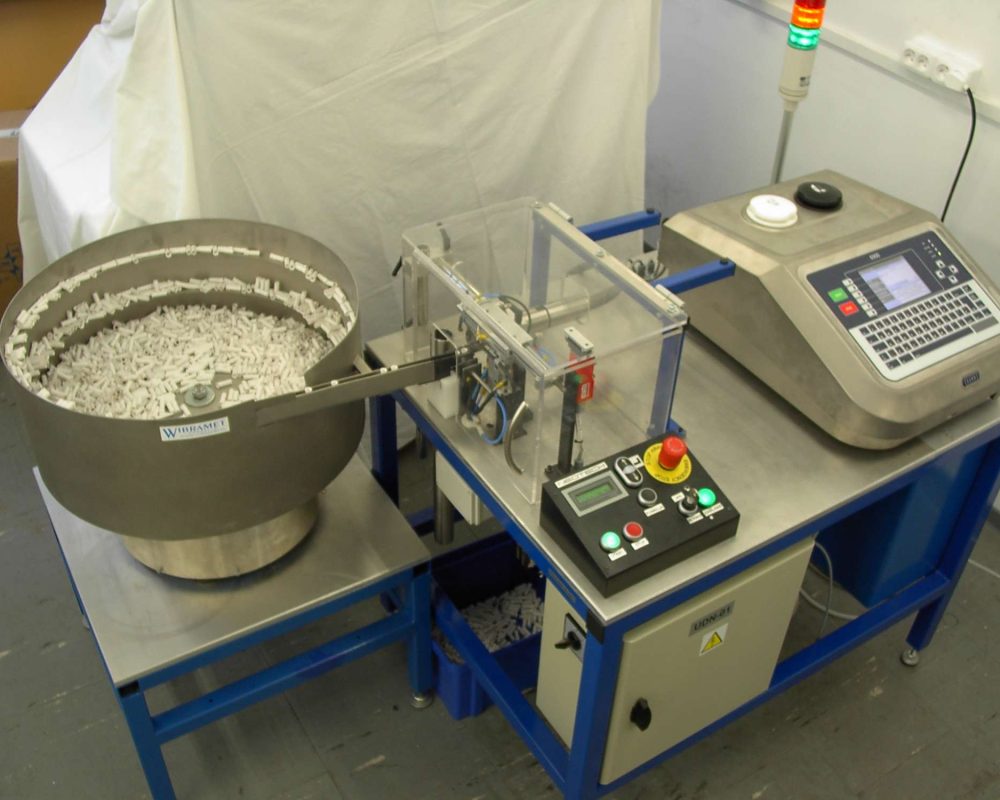

The UDN-01 printing device is used to automatically print on plastic frames for the purpose of marking them.
Thanks to the use of replaceable vibratory feeder trays, it is possible to mark different types of frames.
Gallery:
Description

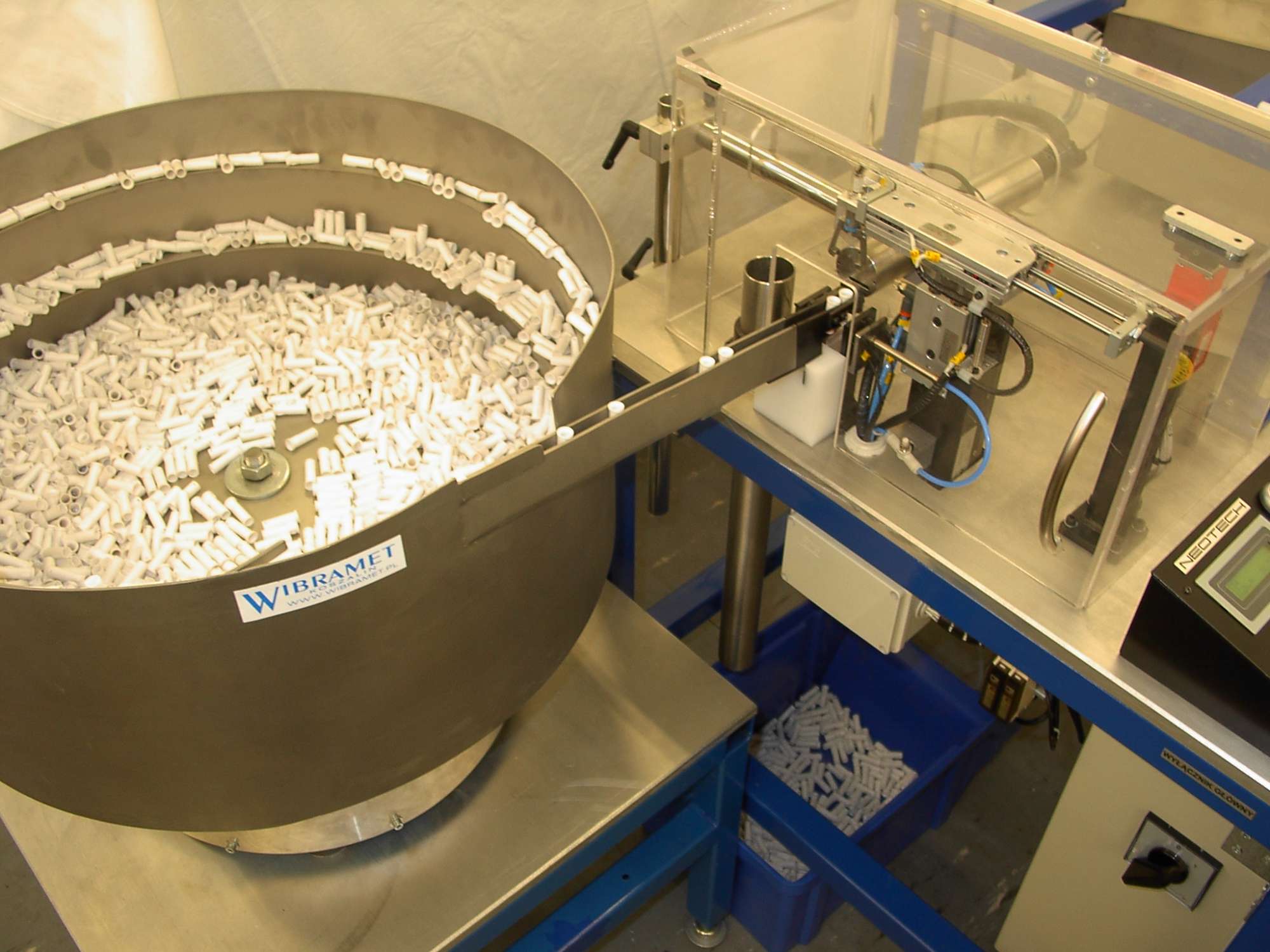

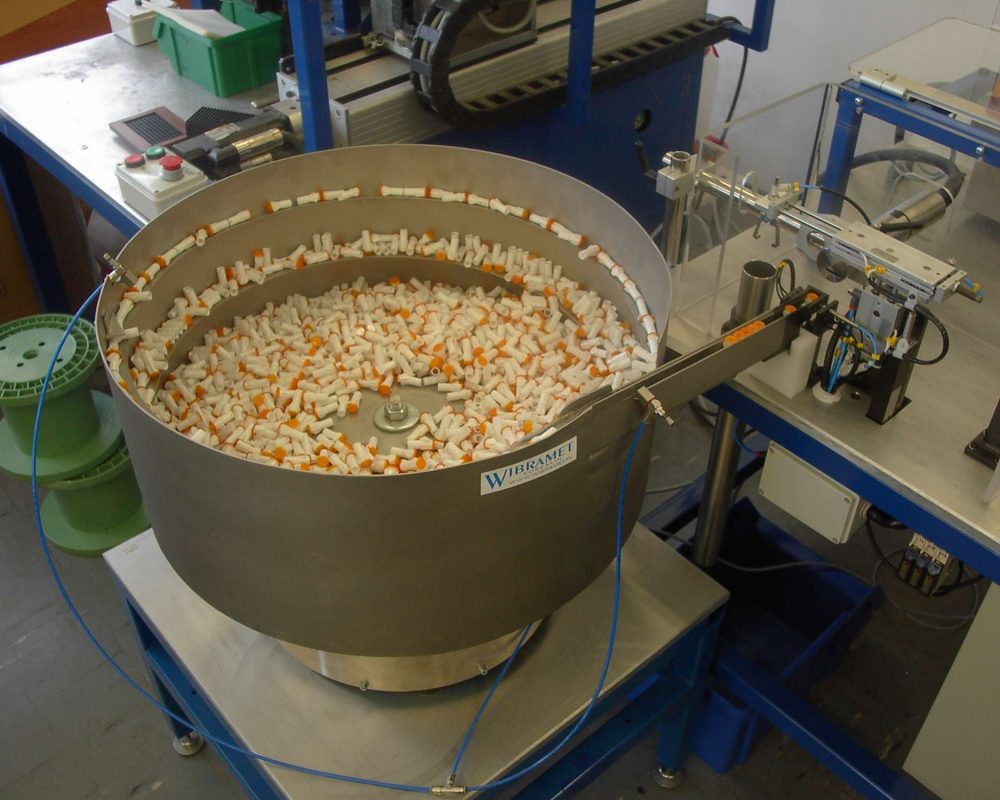

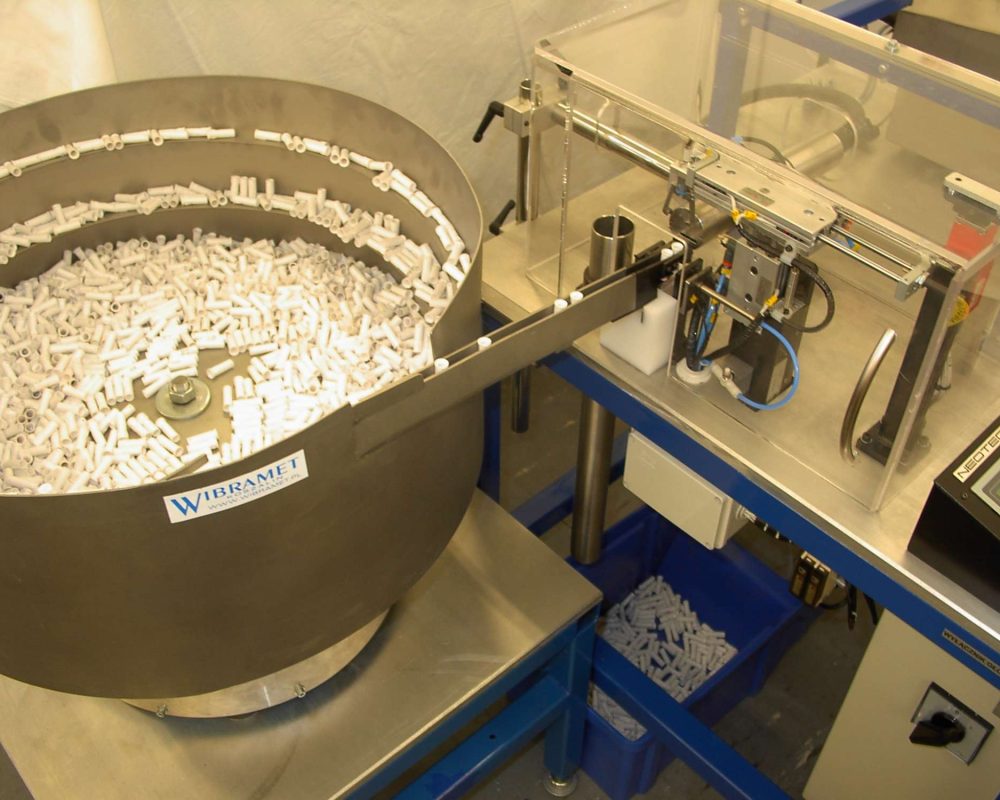

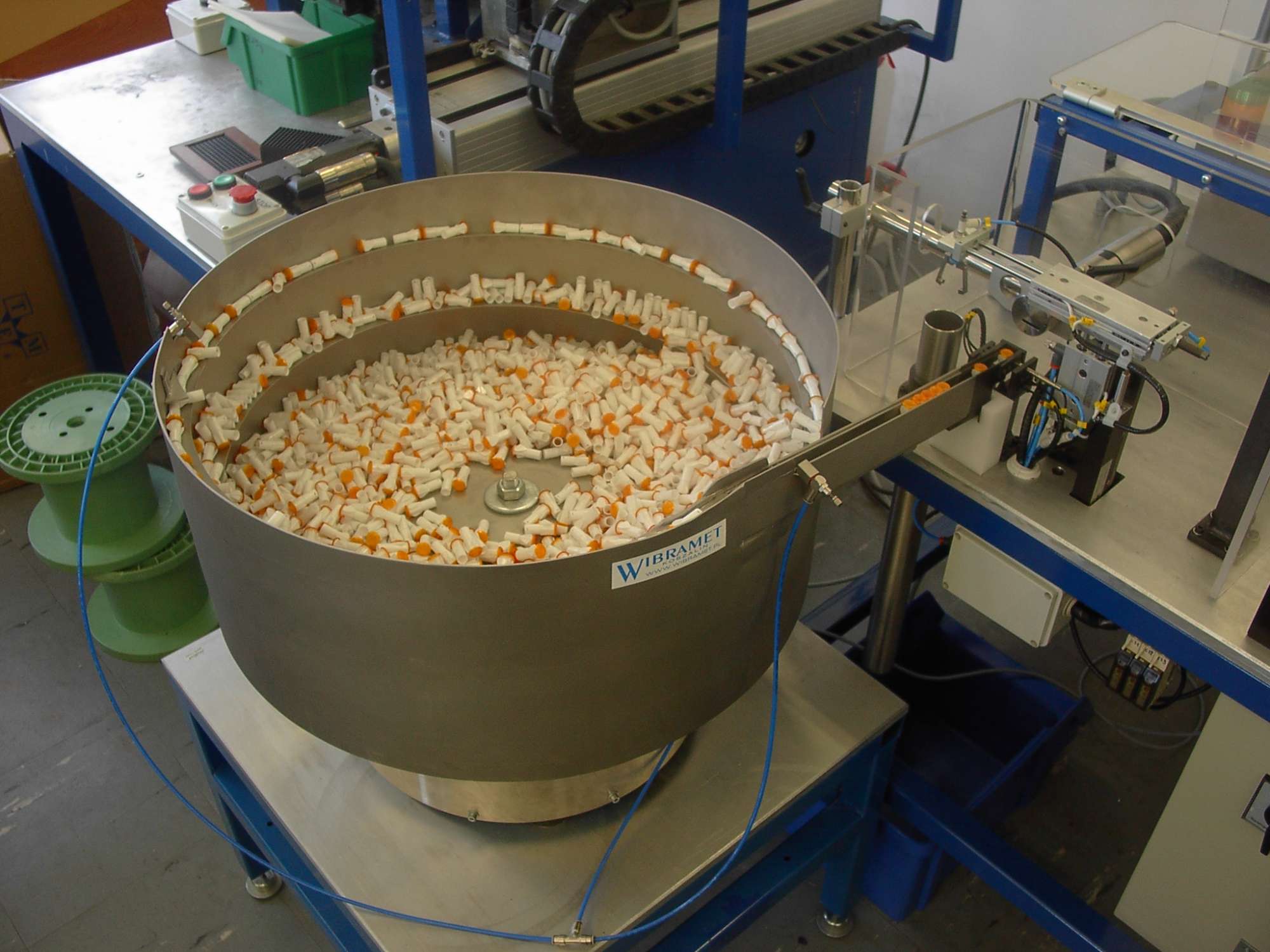

The operation of the machine comes down to filling the vibratory feeder container with holders and starting the device. The vibratory feeder together with the replaceable container and magazine constitutes the orientation and feeding system of holders to the positioning unit.

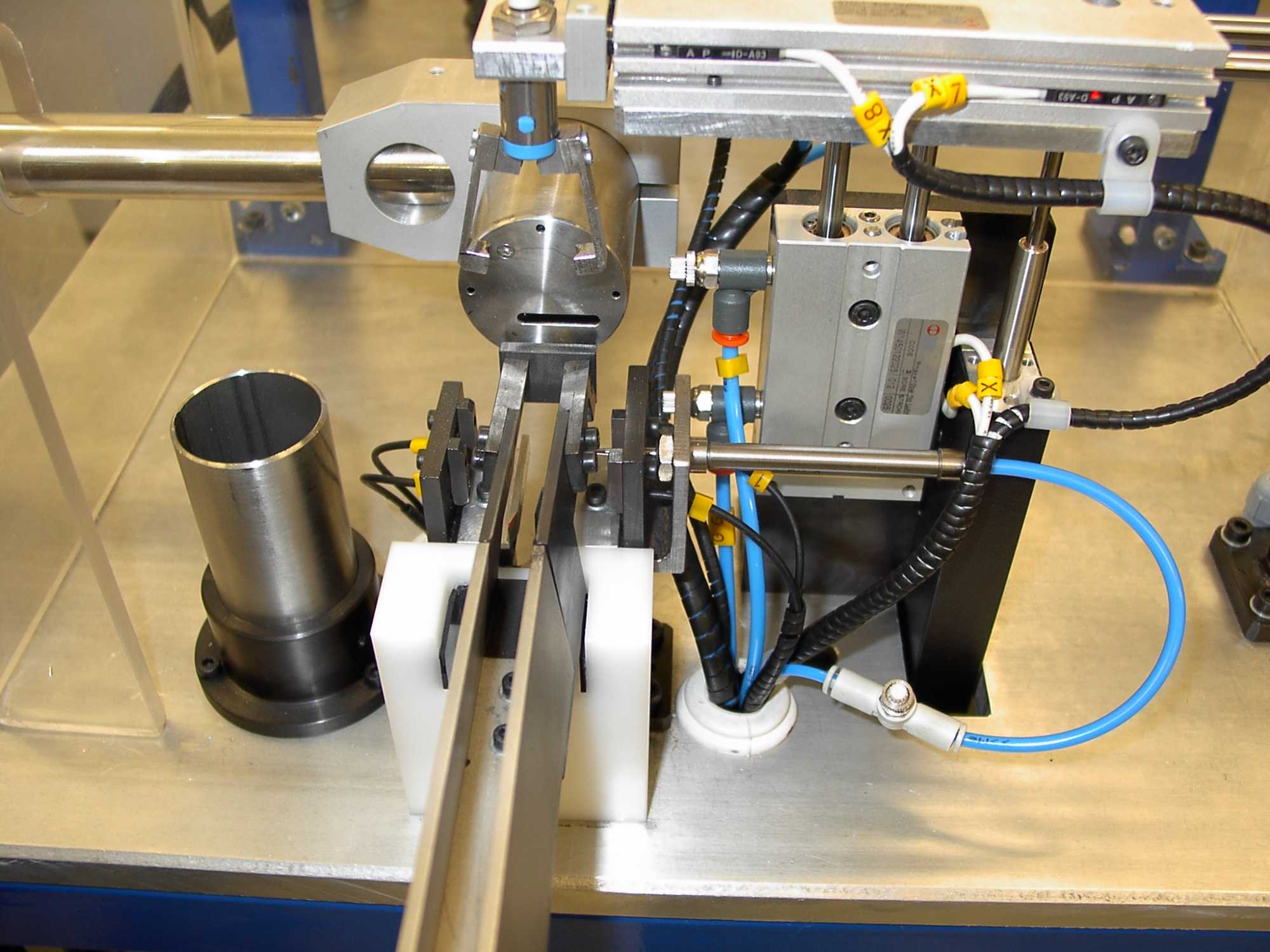

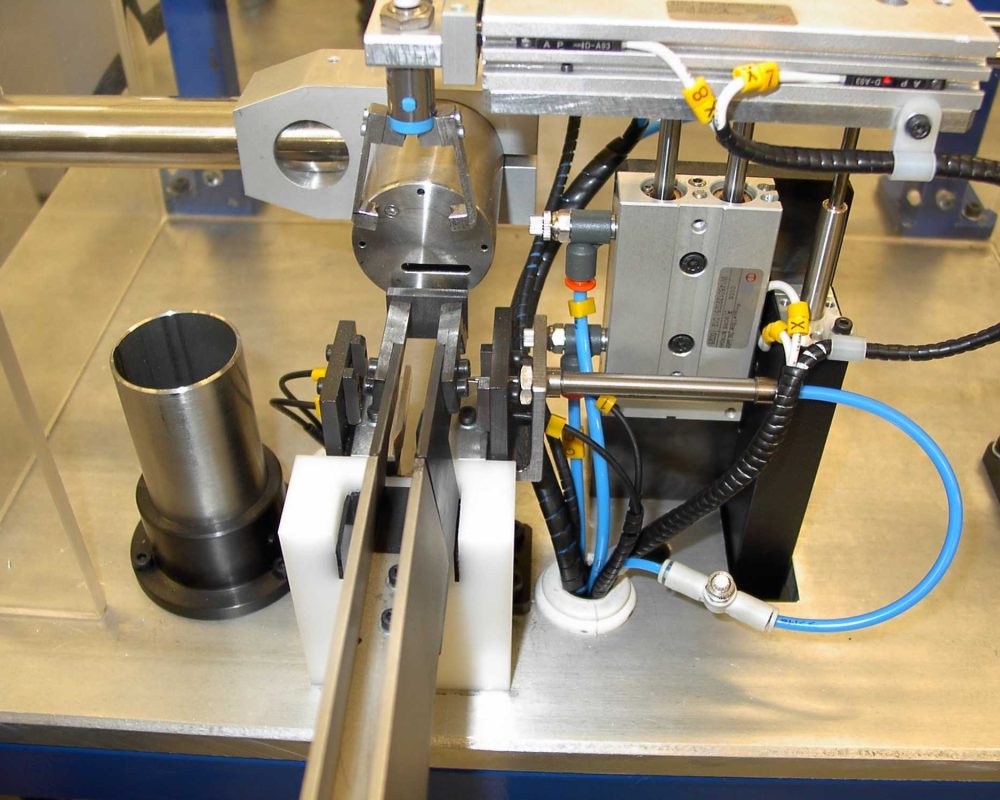

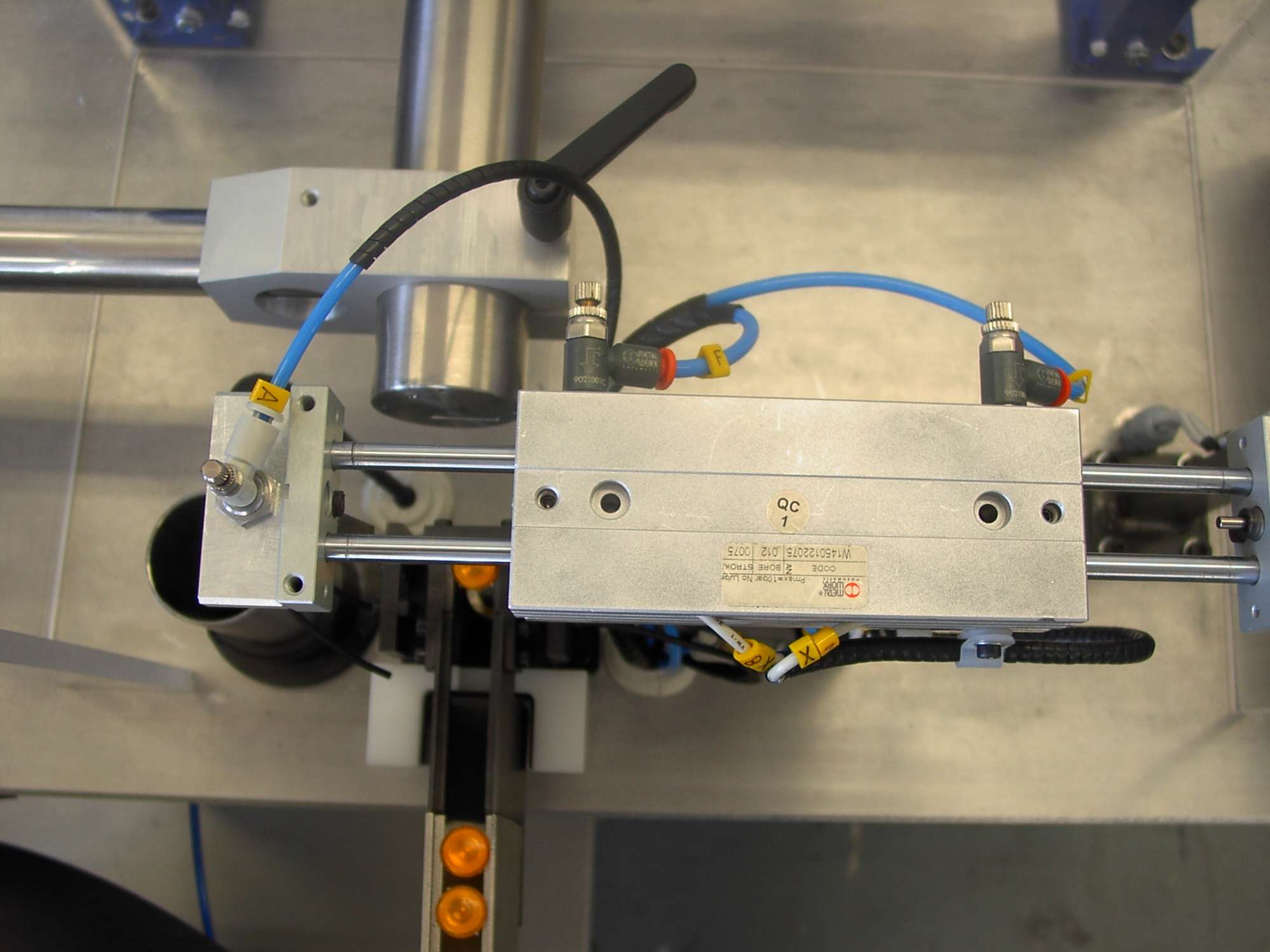

An appropriately oriented holder is grabbed by the gripper and during transfer to the dropping zone, the print is made. The UDN-01 printing device operates in an automatic cycle.
Technical parameters
Parameter | UDN-01 | |||
Dimensions (L × W × H [m]) | 1,6 × 1,1 × 1,3 | |||
Mass | 130 kg | |||
Power | 230 V / 50 Hz | |||
Power usage | 0,5 kVA | |||
Pneumatic supply from the network | 0,6 MPa | |||
Air usage | 20 Nl/min | |||
Noise emitted | 74 dB | |||
