Professional device for straightening, measuring and cutting steel wire - manufactured by NEOTECH

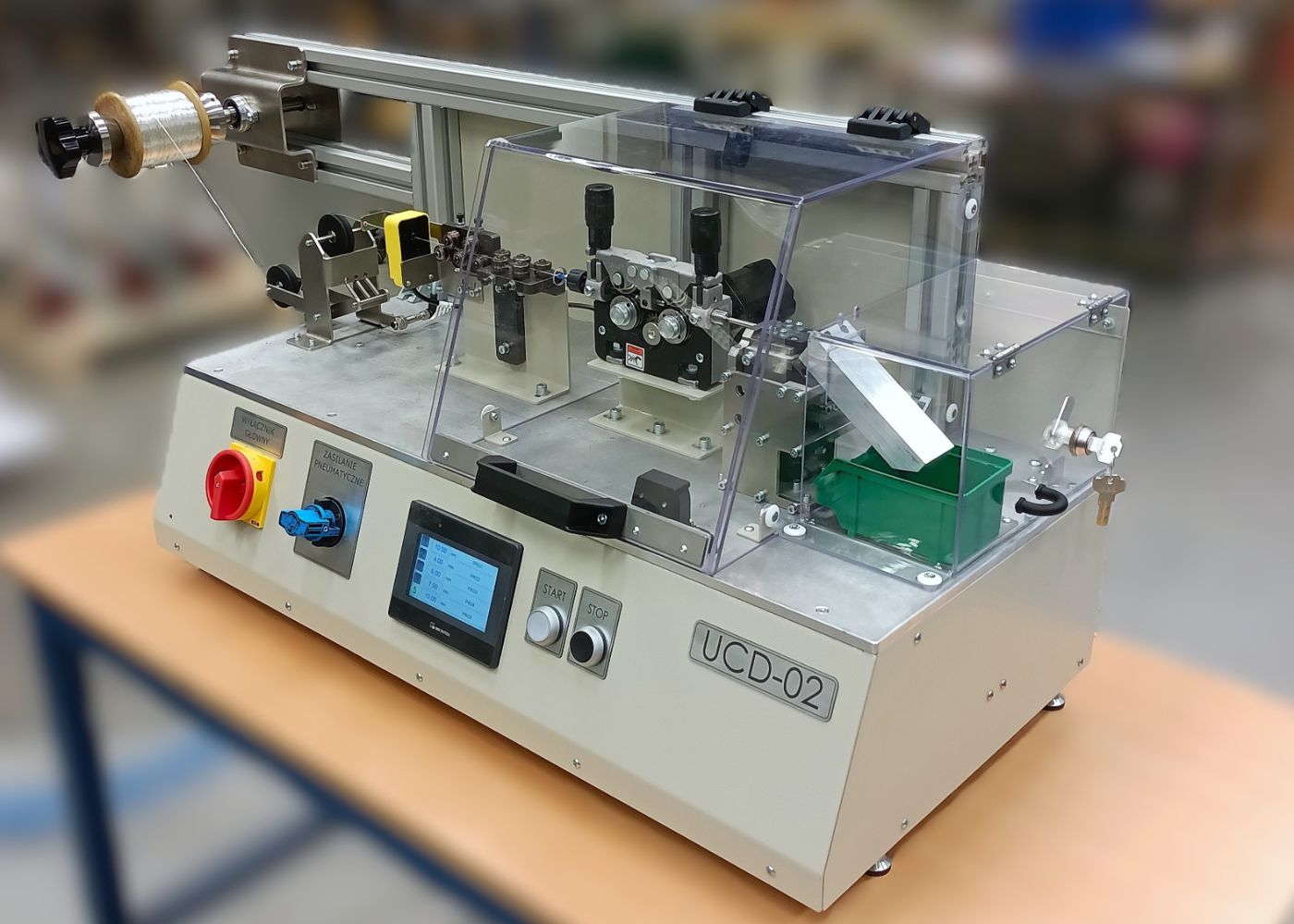

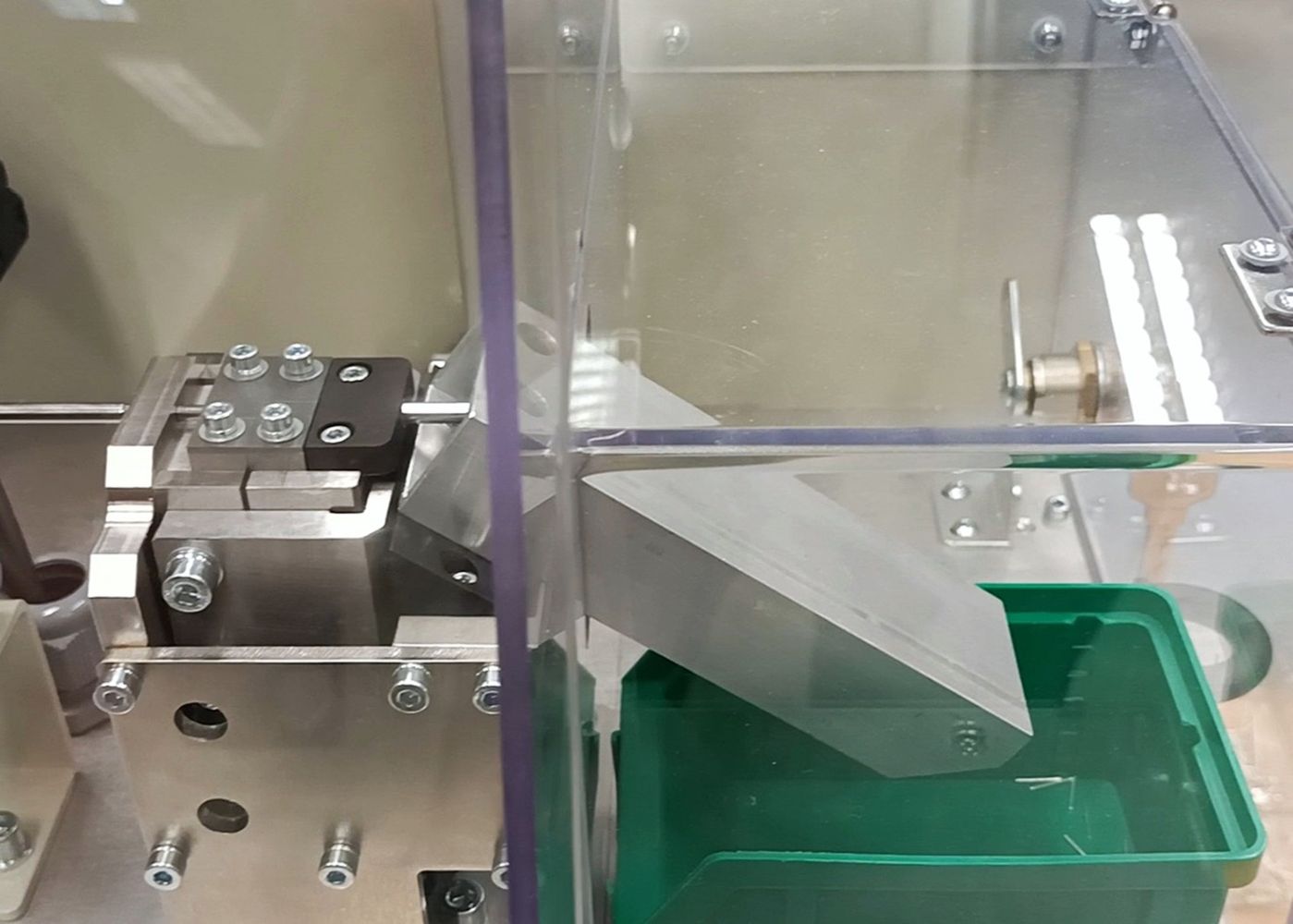

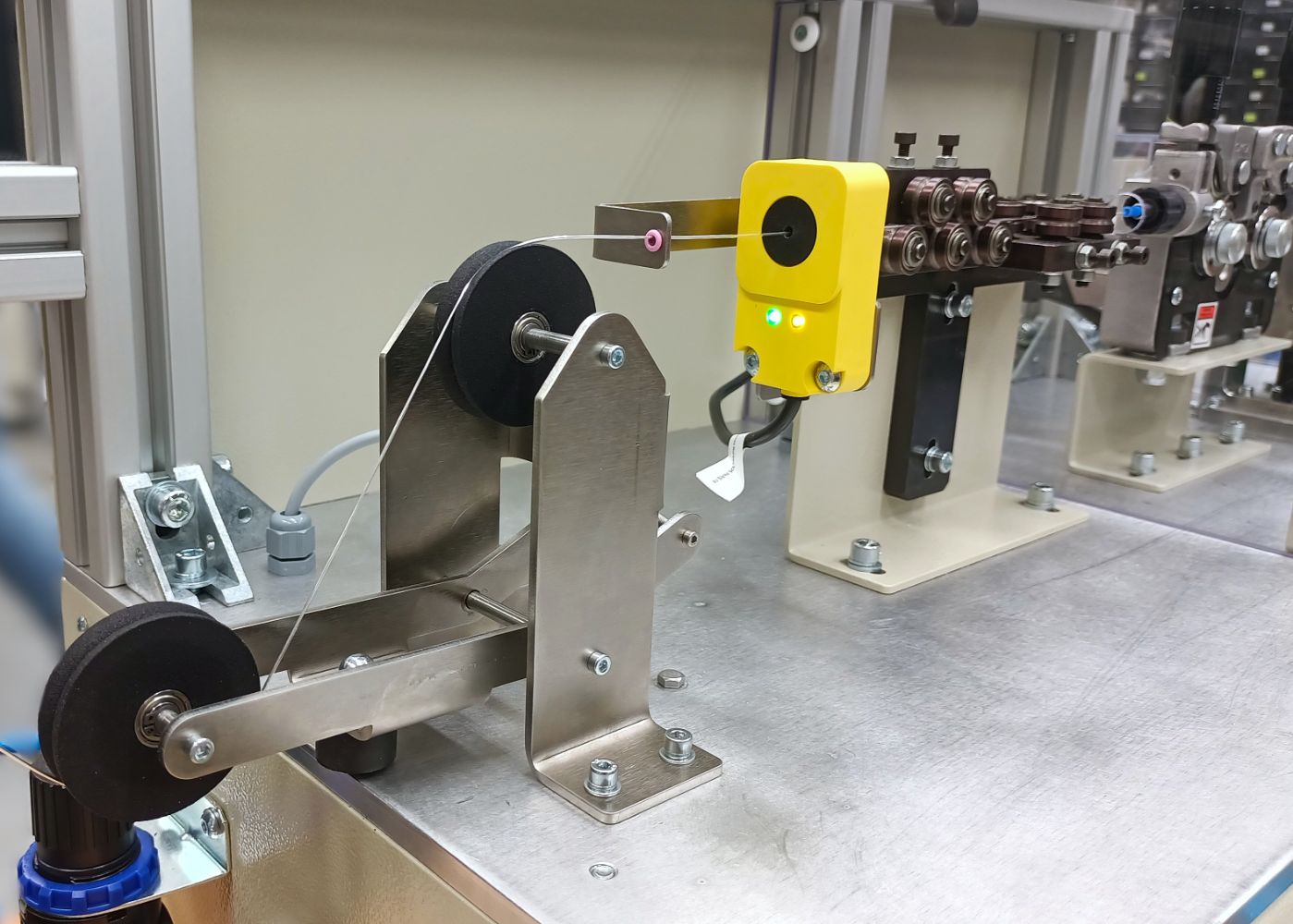

The UCD-02 is a powerful, automatic industrial device designed for precisely straightening, measuring, and cutting steel wire into pre-determined lengths. The machine draws wire from a spool, then straightens it, and using a pneumatic guillotine, precisely cuts it into sections according to a pre-set program. Finished components are delivered directly to a receiving container, streamlining the production process.
Machine gallery:
Intuitive control is provided by a modern HMI touchscreen panel, enabling quick selection of work programs, setting cutting parameters, and making necessary adjustments. The UCD-02 is a reliable solution for companies seeking automation and consistent quality in steel wire processing.

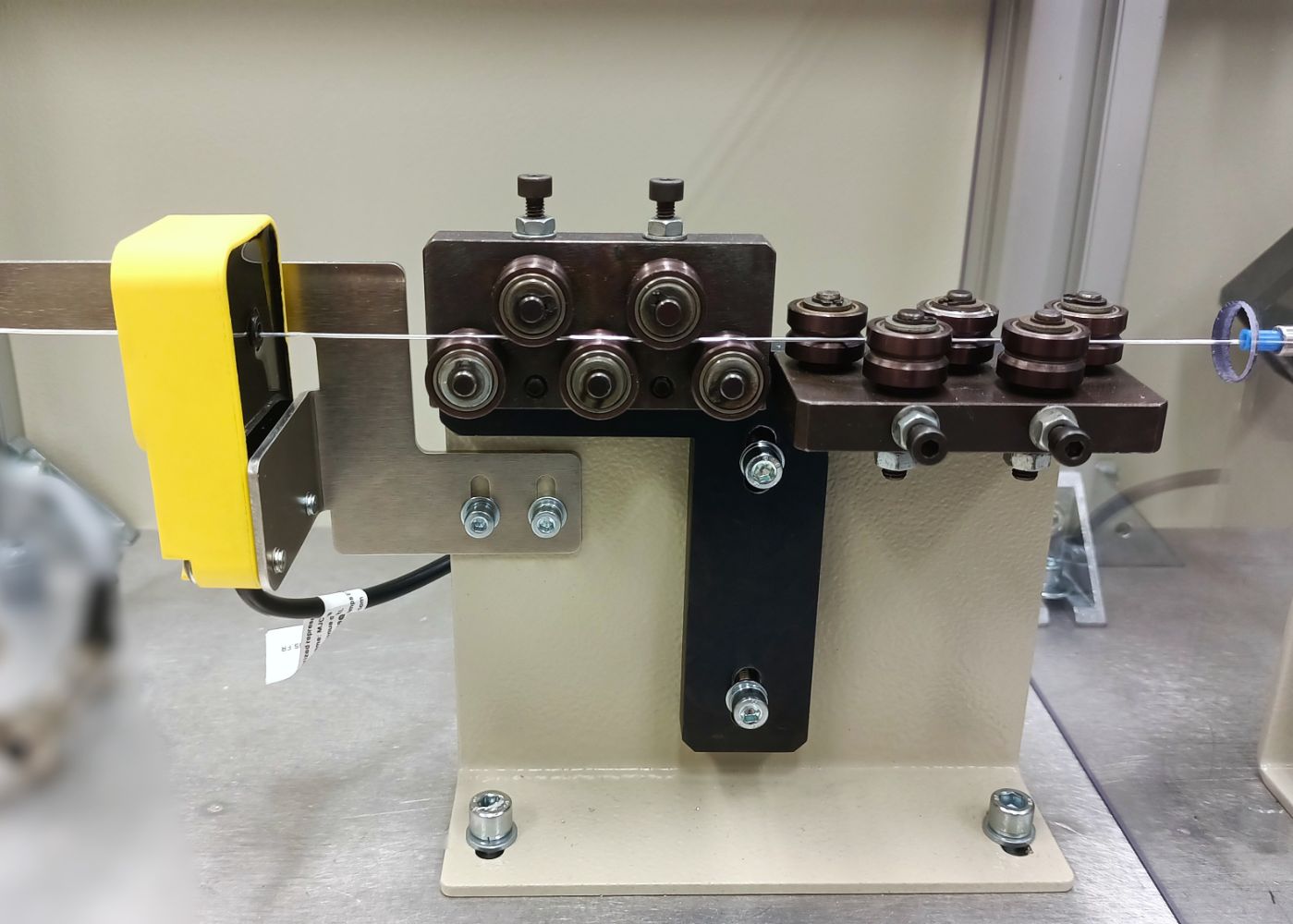

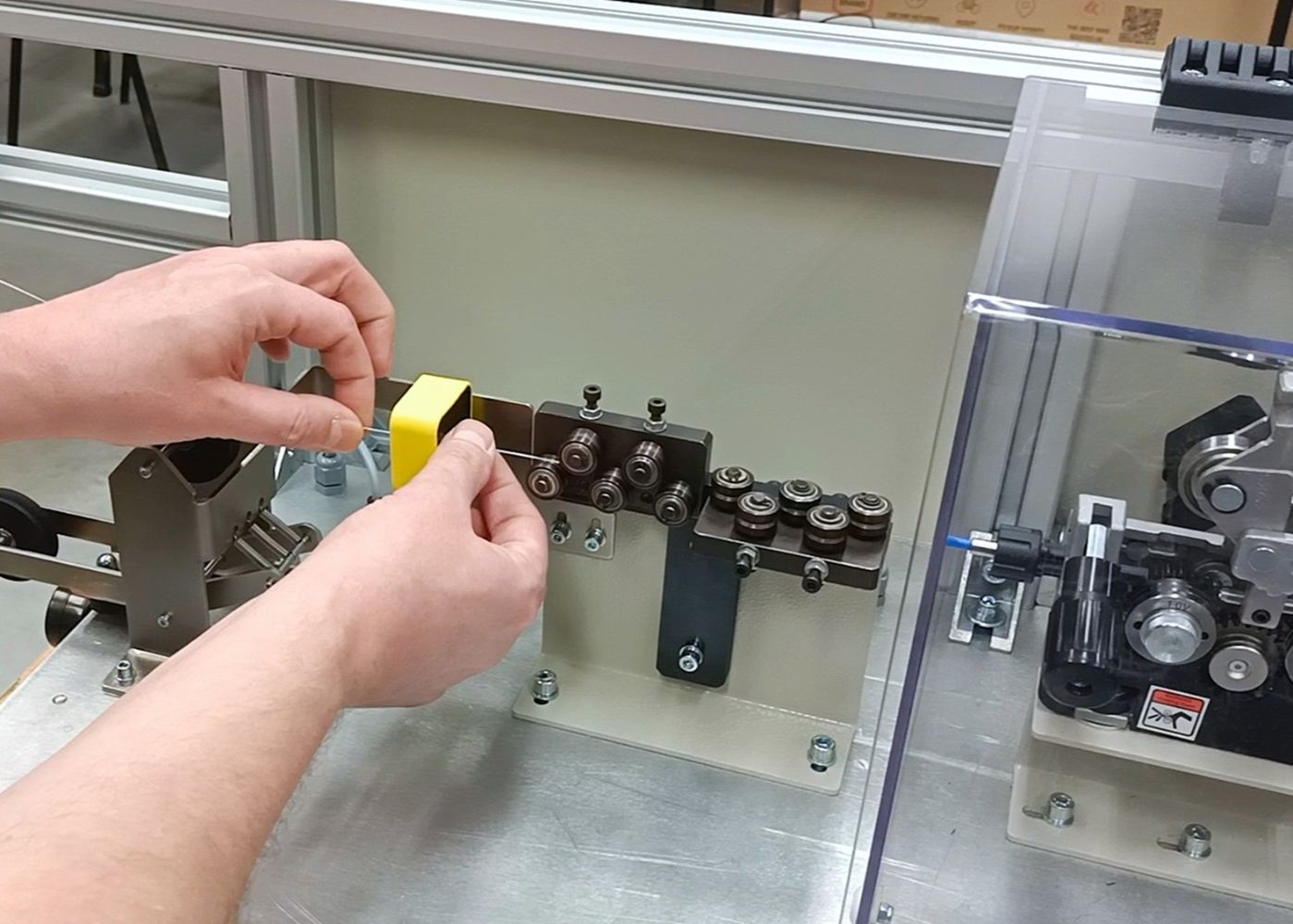

The UCD-02 is built on a robust, load-resistant frame. The entire device weighs 49 kg, meaning it can be operated on a tabletop! The cassettes with straightening rollers allow for work with wires of varying diameters and ensure repeatability – the same shape of each wire section. The UCD-02 is equipped with an electronic safety device that stops the machine if the cover is opened during the operating cycle.
Technical parameters:
Parameter | UCD-02 | |||
| Steel wire diameter | 0,5 ÷ 2 mm | |||
| Copper wire diameter | 0,8 ÷ 4 mm | |||
| Maximum length of cut wire for a single cut | 500 mm | |||
| Maximum length of cut wire for a multiple cuts | limited by the length of the receiving table | |||
| Precision | 0,1 mm | |||
| Power | 230 V / 50 Hz | |||
The UCD-02 is a reliable and efficient solution for production plants requiring continuous, repeatable, and precise steel wire processing. Because it’s our own device—designed and manufactured by NEOTECH—we can customize it to your individual needs: in terms of wire type (rod, strand), material, precision, and length.
Contact
If you have any questions, need more information, or would like to place an order, please contact us.
