Air Cored Coils – Precision and Versatility. We offer specialized production of coreless inductors, so called air coils.
The air cored coils produced by NEOTECH are inductors without a core or carcass. They can be adapted for automatic assembly. Our main value is high quality – this is demonstrated by taking care of the high stability of our products’ parameters through precision of workmanship.
The air coils we wind are tailored to your technical requirements. They work perfectly as passive inductive elements of low inductance in electronics and as antennas in wireless communication systems, RFID, filters and high-frequency applications.

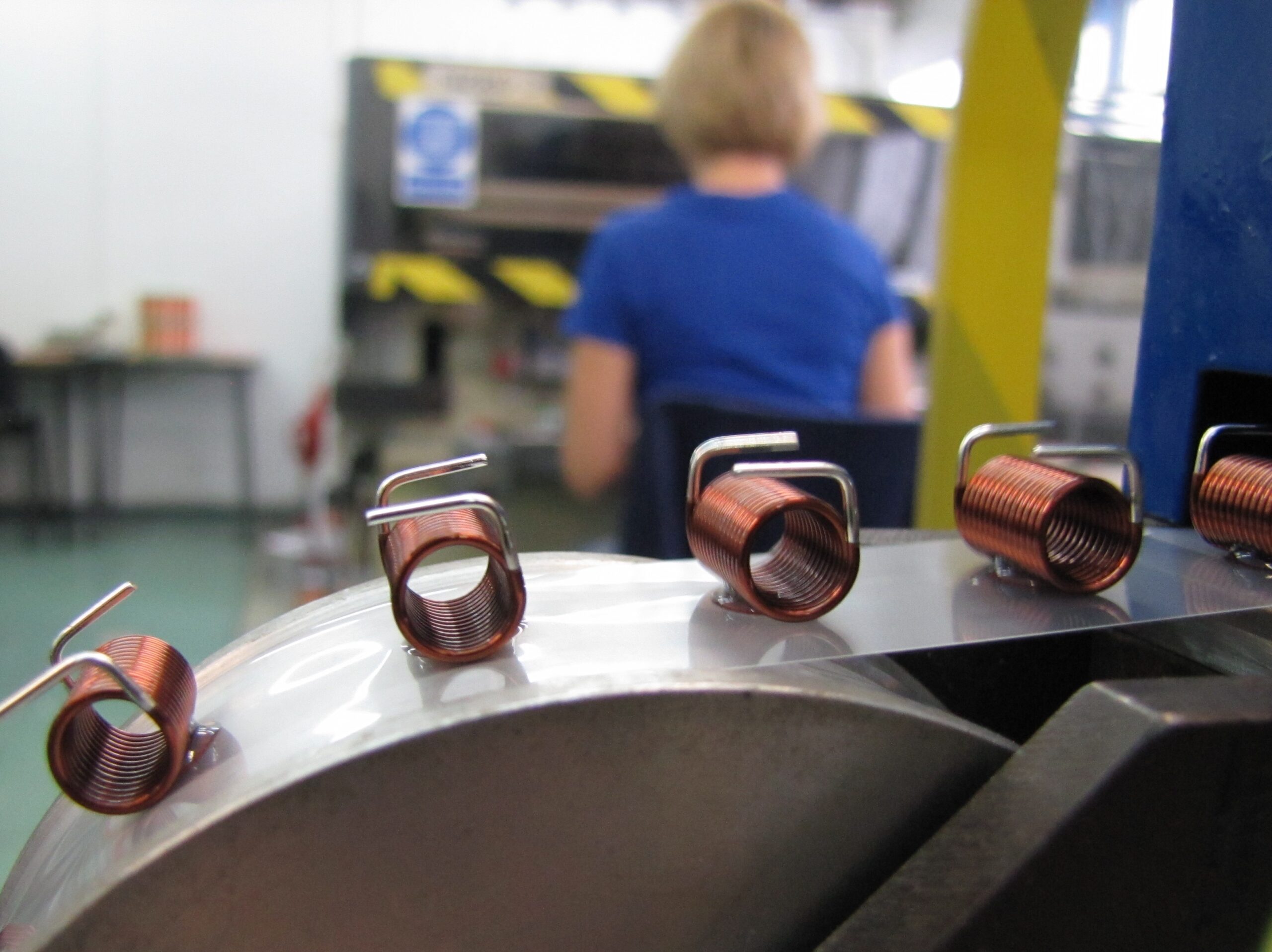

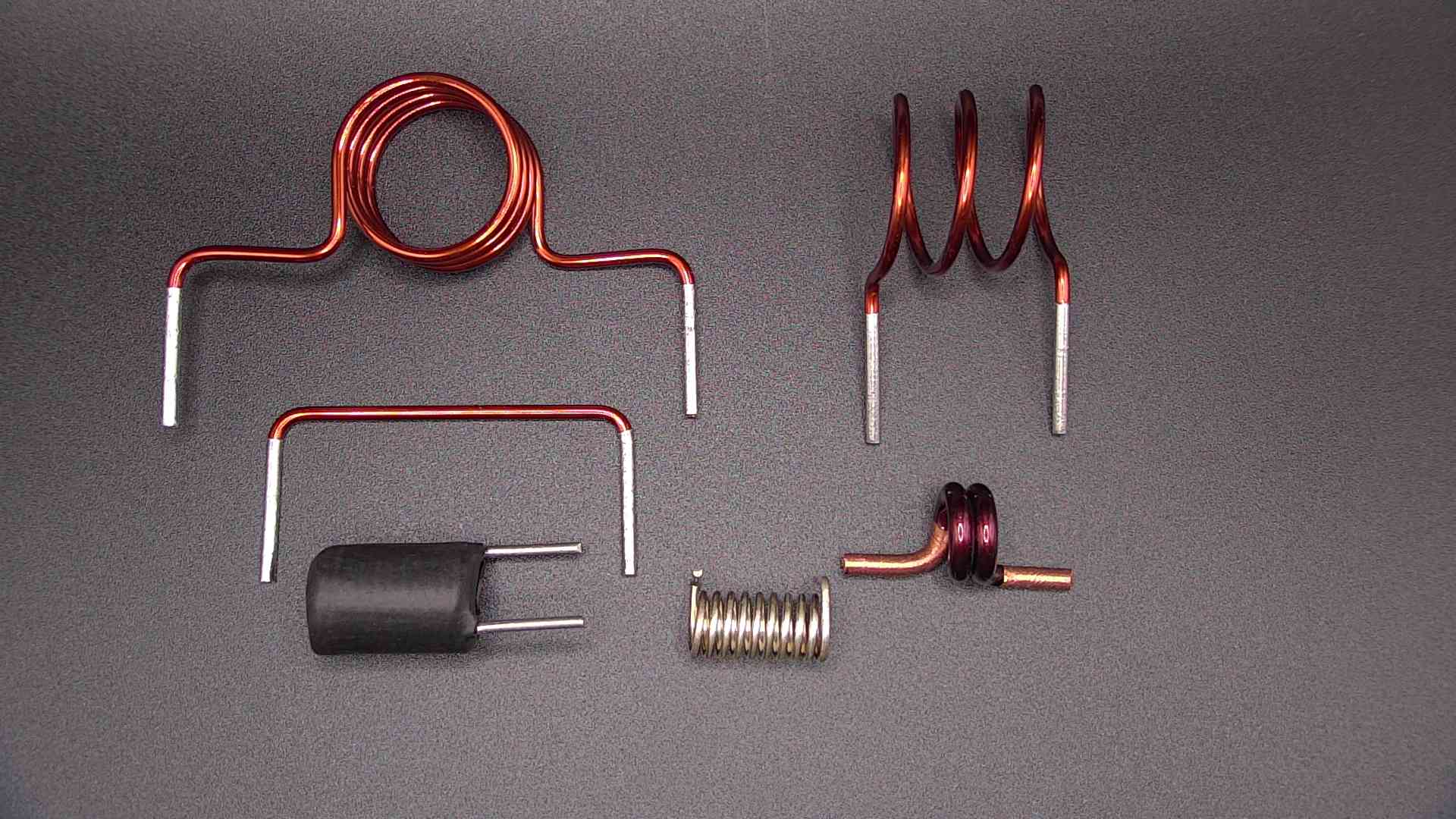

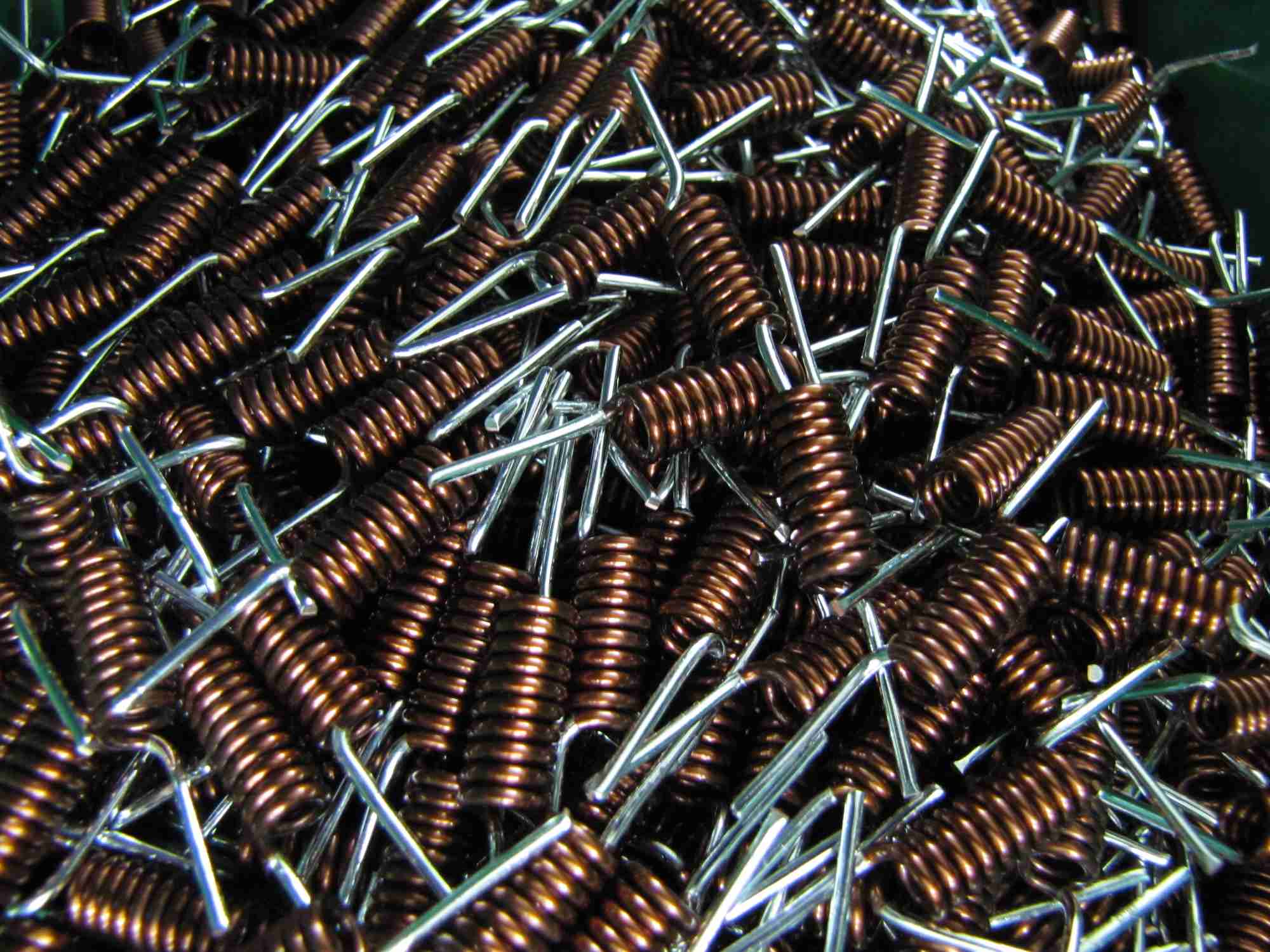

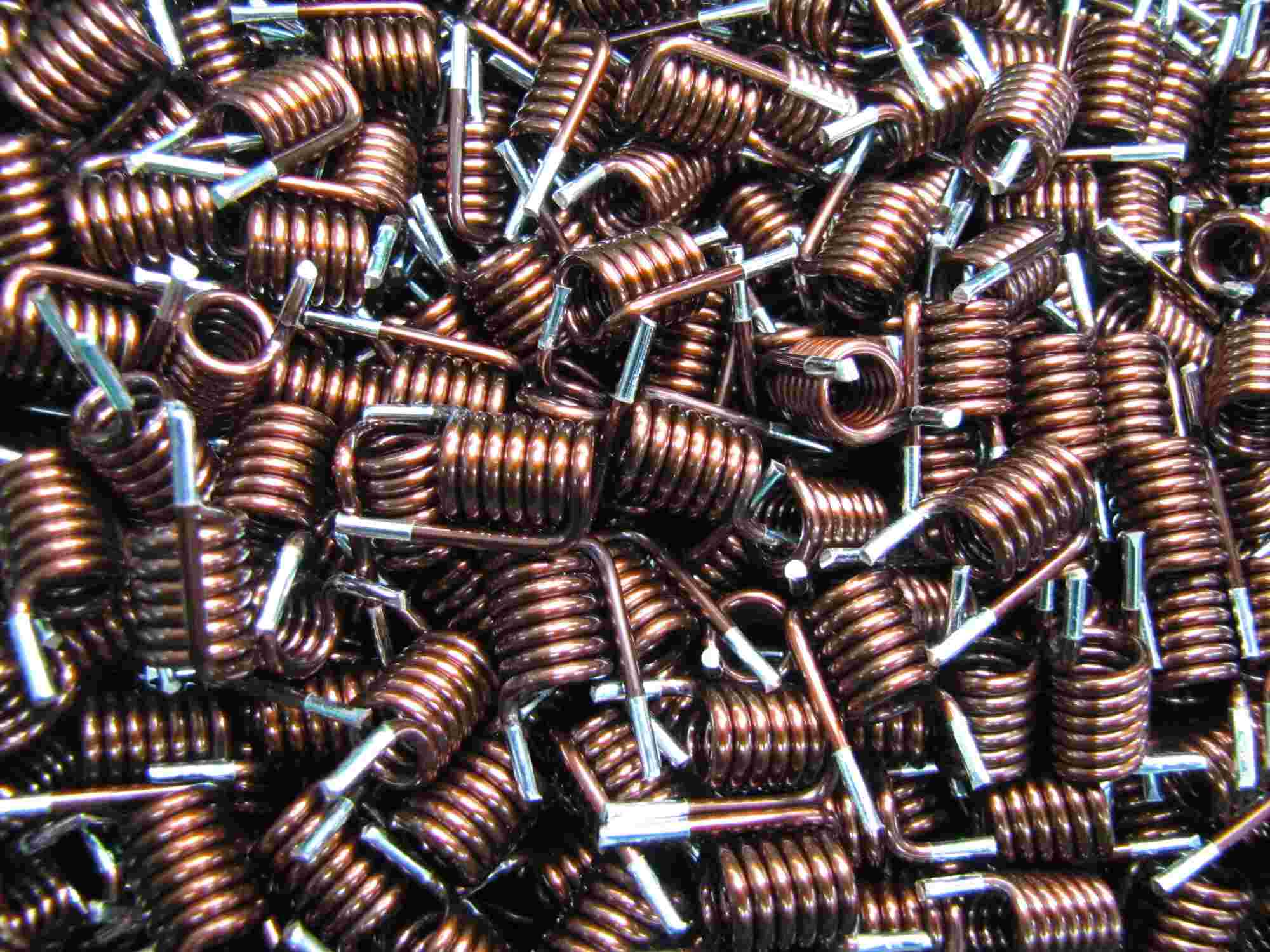

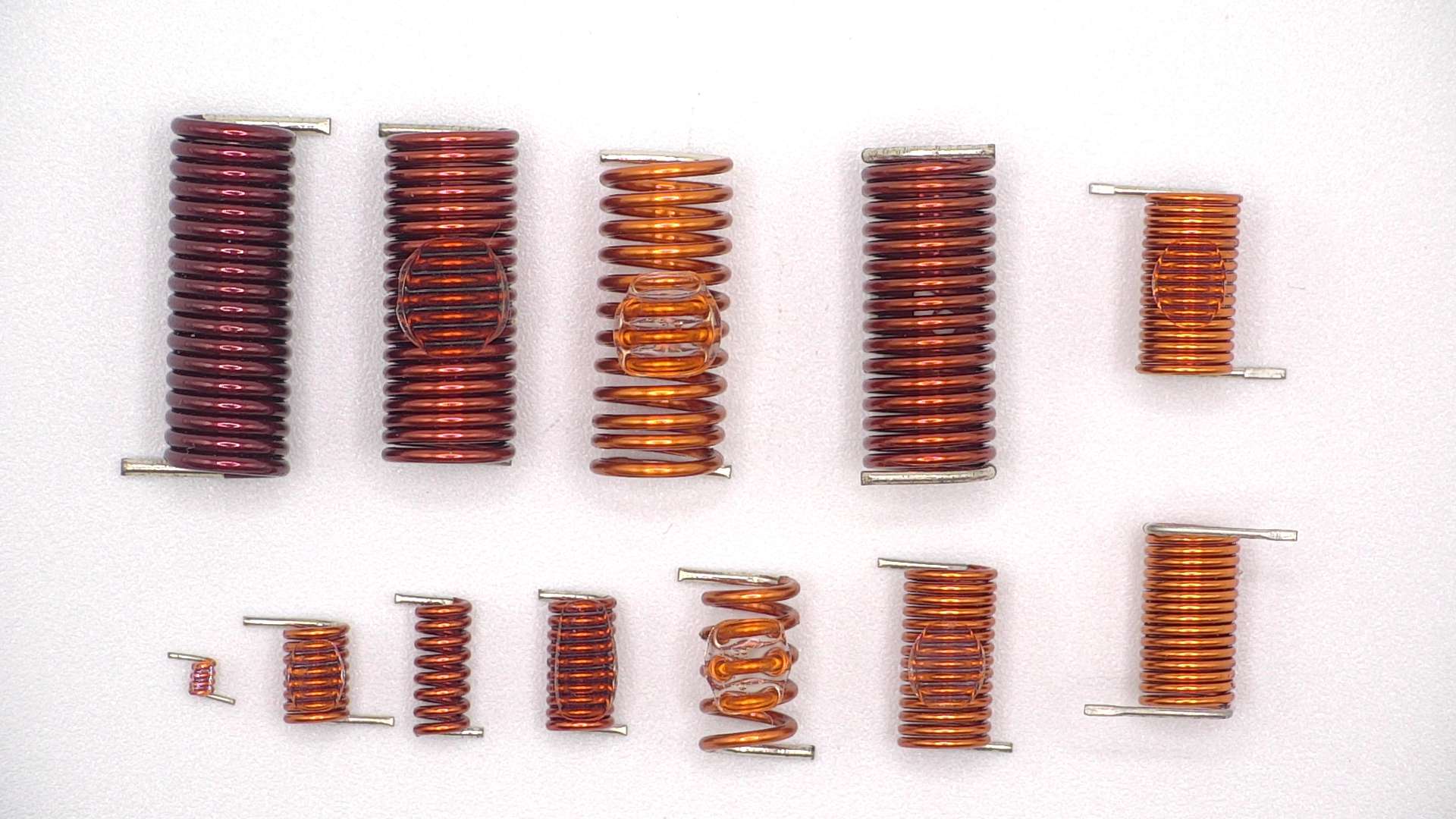

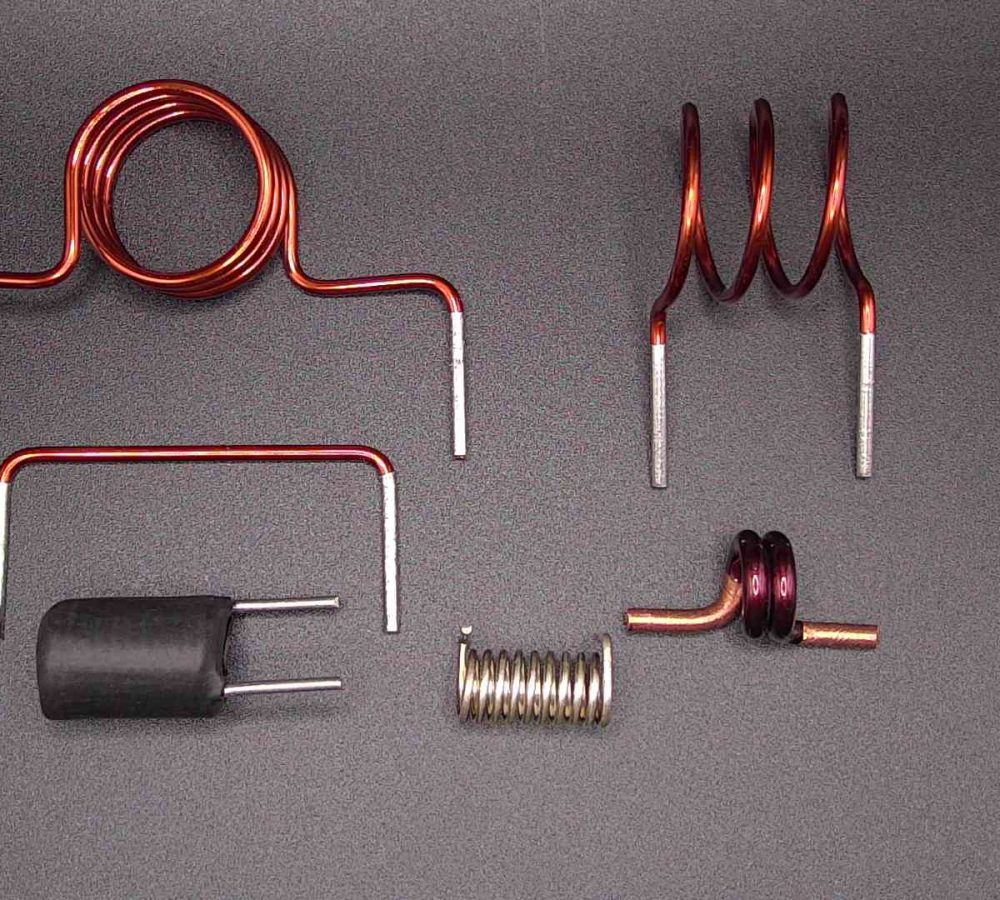

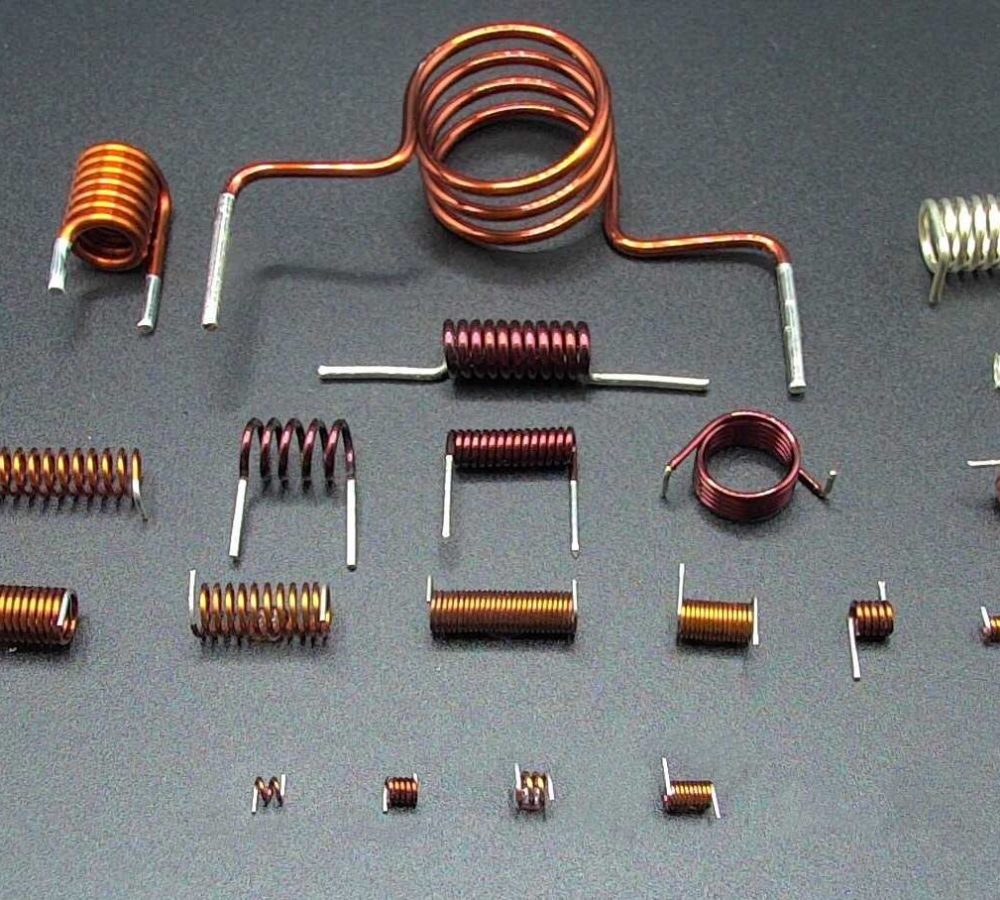

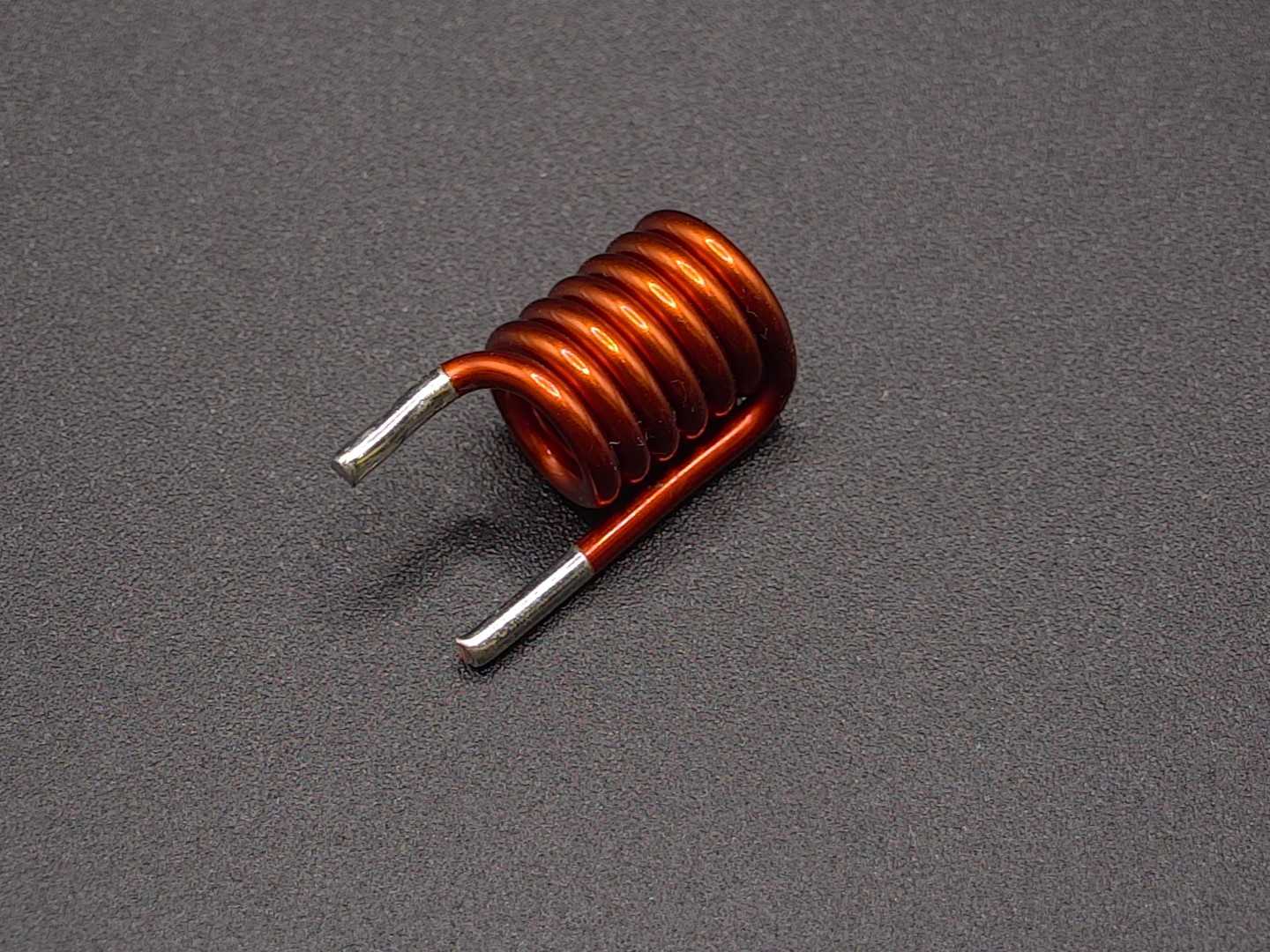

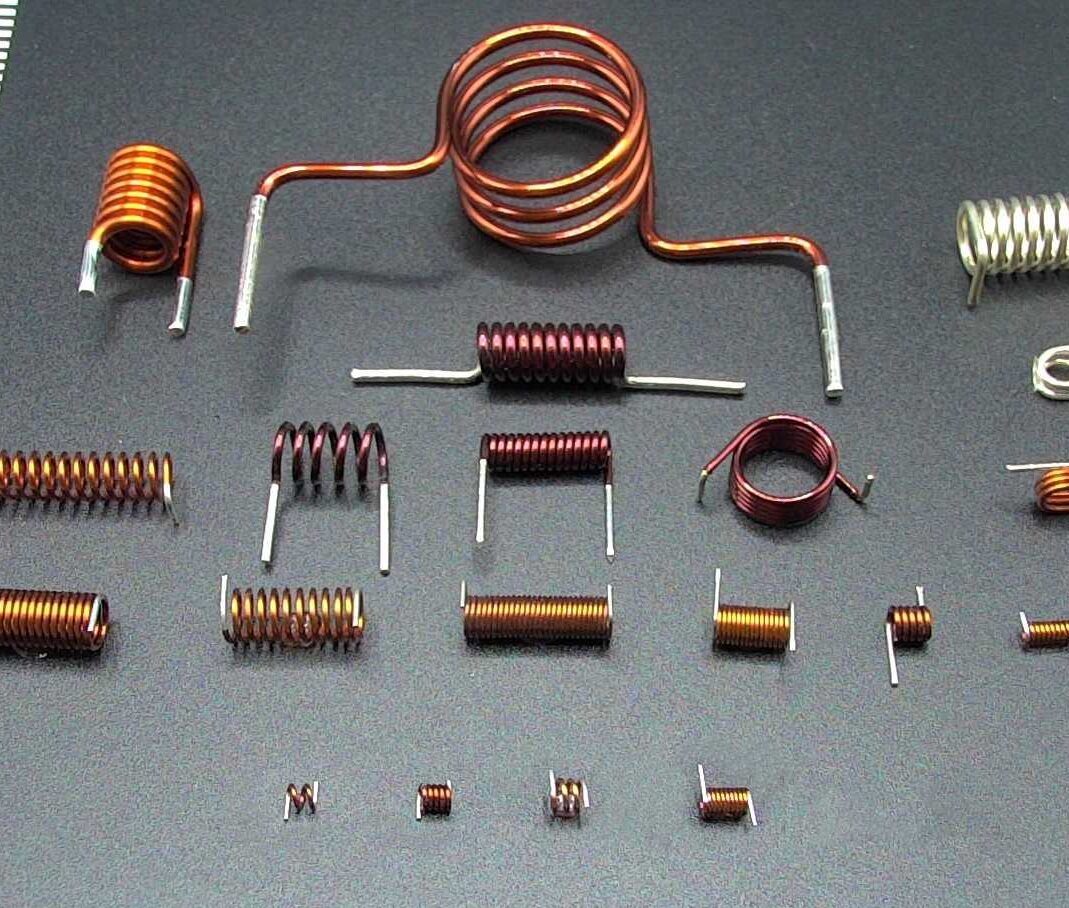

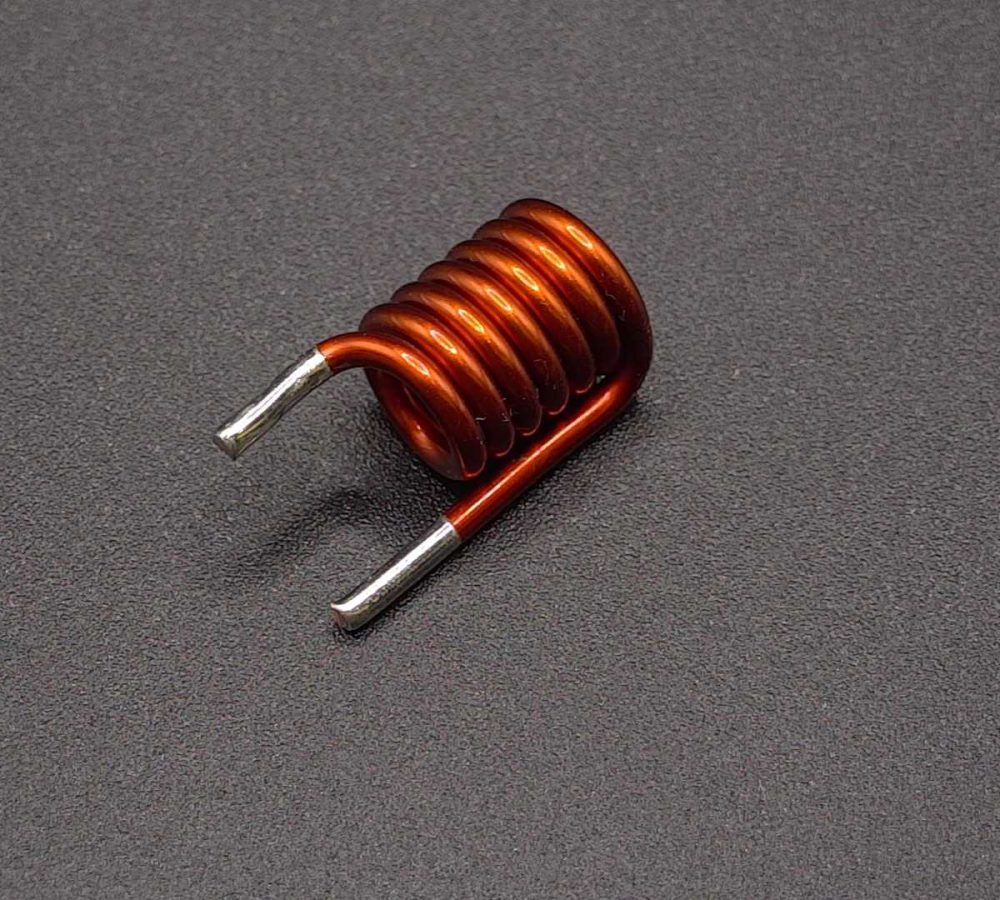

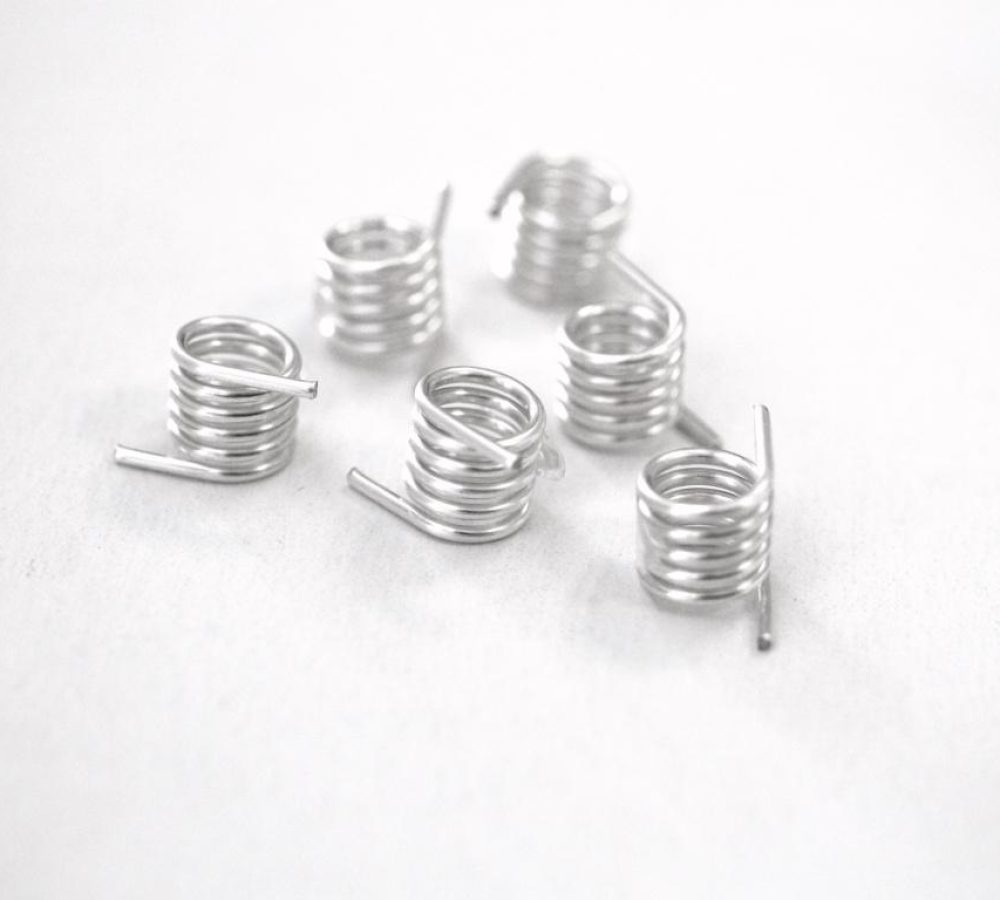

Product photos:
Air Coils Production Possibility
We manufacture air coils to individual customer orders, according to the documentation provided or our own design developed for the customer’s needs. Below are the approximate ranges of mechanical parameters:
| PARAMETER | AIR COILS | |
| Wire type | Solderable and unsolderable: CuL 155 – 200, Gr.1 – 2 (typical) | |

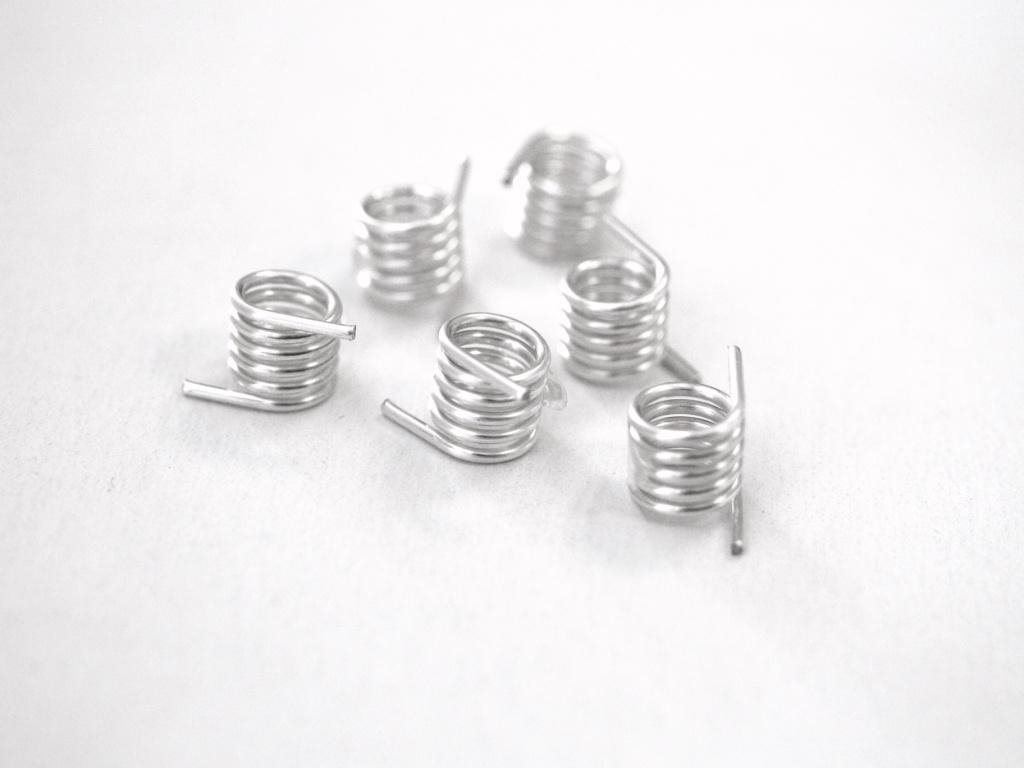

| CuAg coated wires for HF applications | ||
| Other types of wires are available on request. | ||
| Wire siameter | Minimum | 0.20 mm |
| Maximum | 2.80 mm | |
| Other wire diameters are available on request. | ||
| Winding direction of the winding | Left, Right | |
| Number of winding layers | Typical | 1 |
| Multilayer air coils can be manufactured on request. | ||
| Coil shapes | Typically – Cylindrical. Coils arranged in a compact or slotted manner. | |

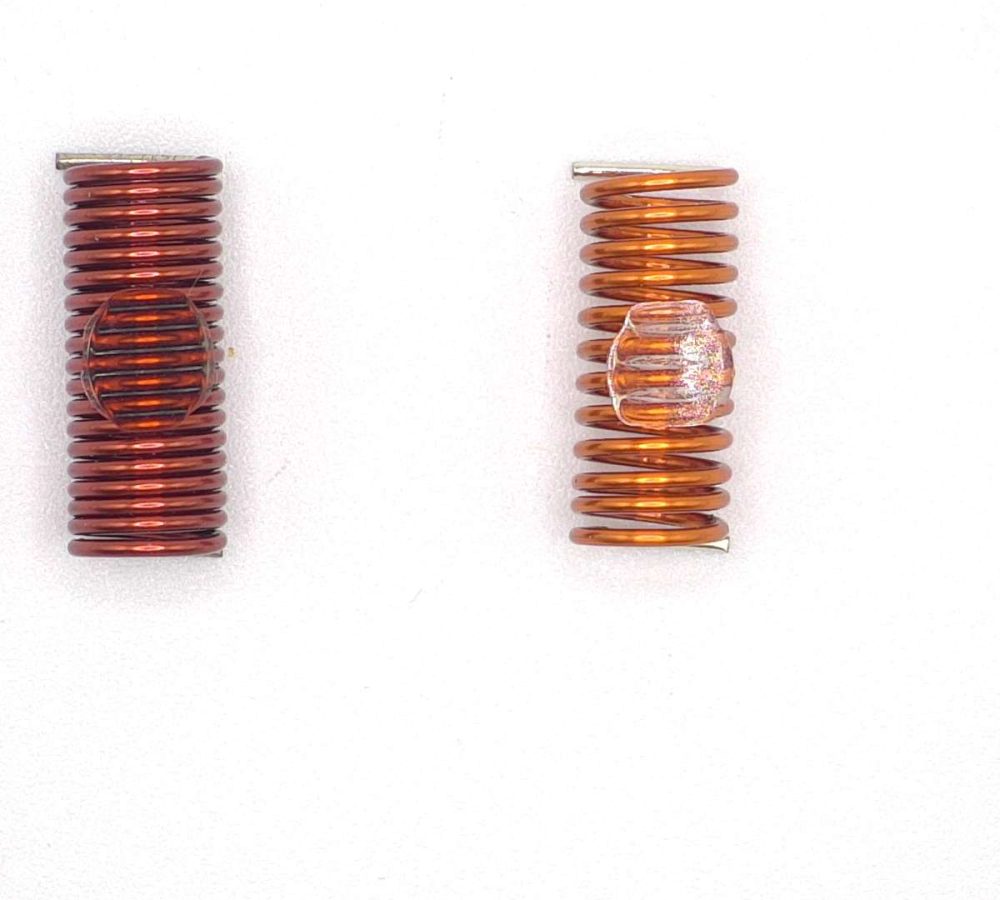

| Possibility of placing a UV glue point for automatic assembly (Pick & Place machines). | ||
| Unusual shapes or requirements – Possibility of individual arrangement upon request. | ||
| Coil leads | Typically – Insulated, Stripped or Tinned. | |
| Other designs are available upon request. | ||
| Location and shape of the coil leads | Axial, radial, parallel or shaped shape. | |
| Length to be determined. | ||
| Pinout according to body and customer requirements. | ||
Tinning | Lead-free Pb Free | |
| Leaded Pb (at the customer’s request) | ||

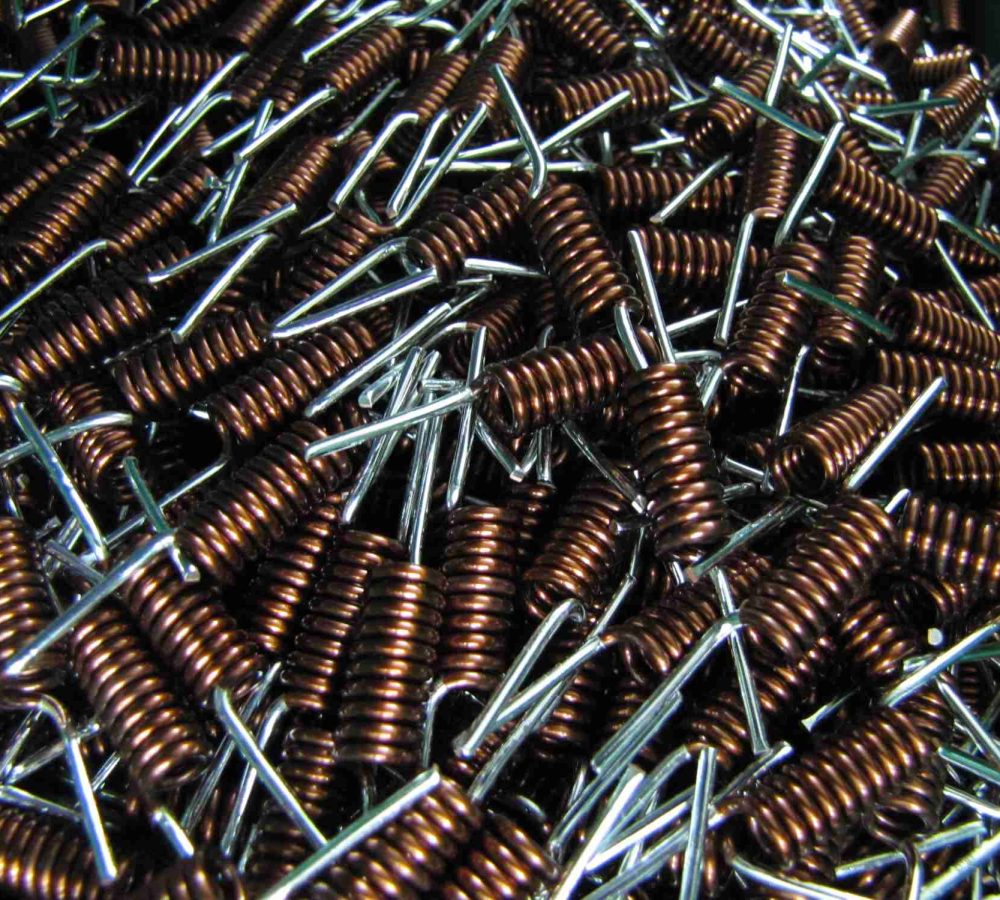

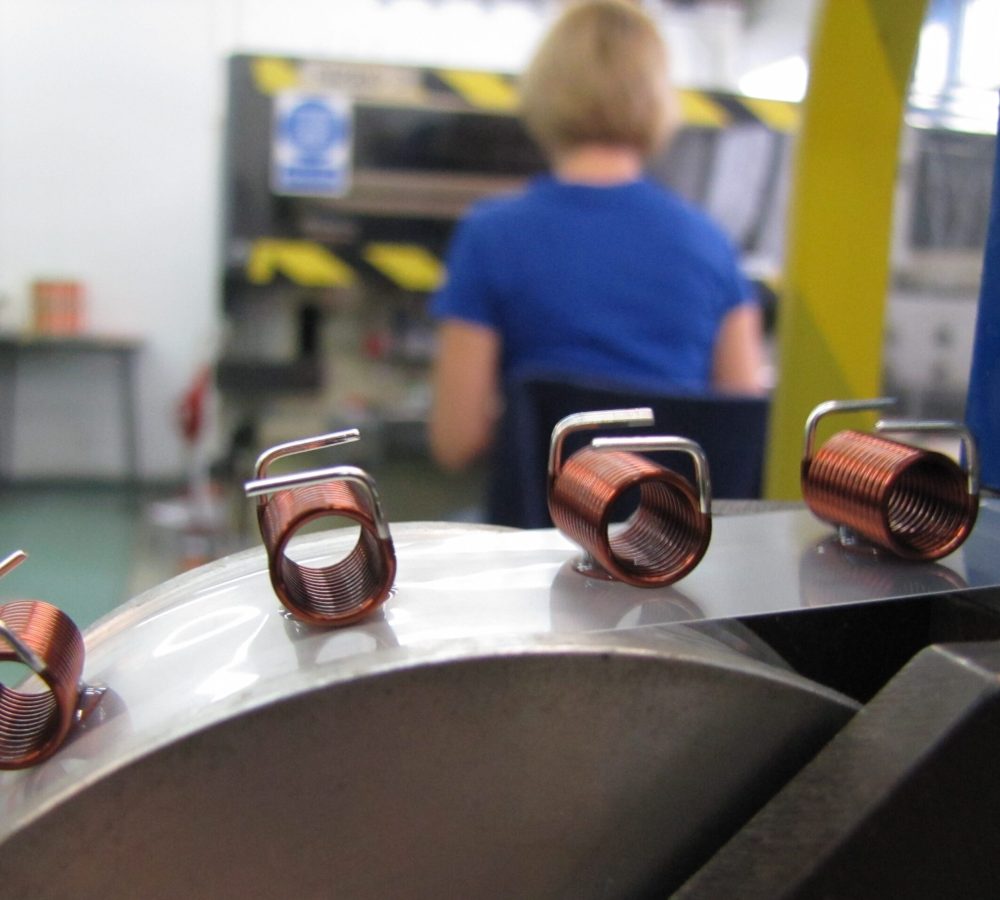

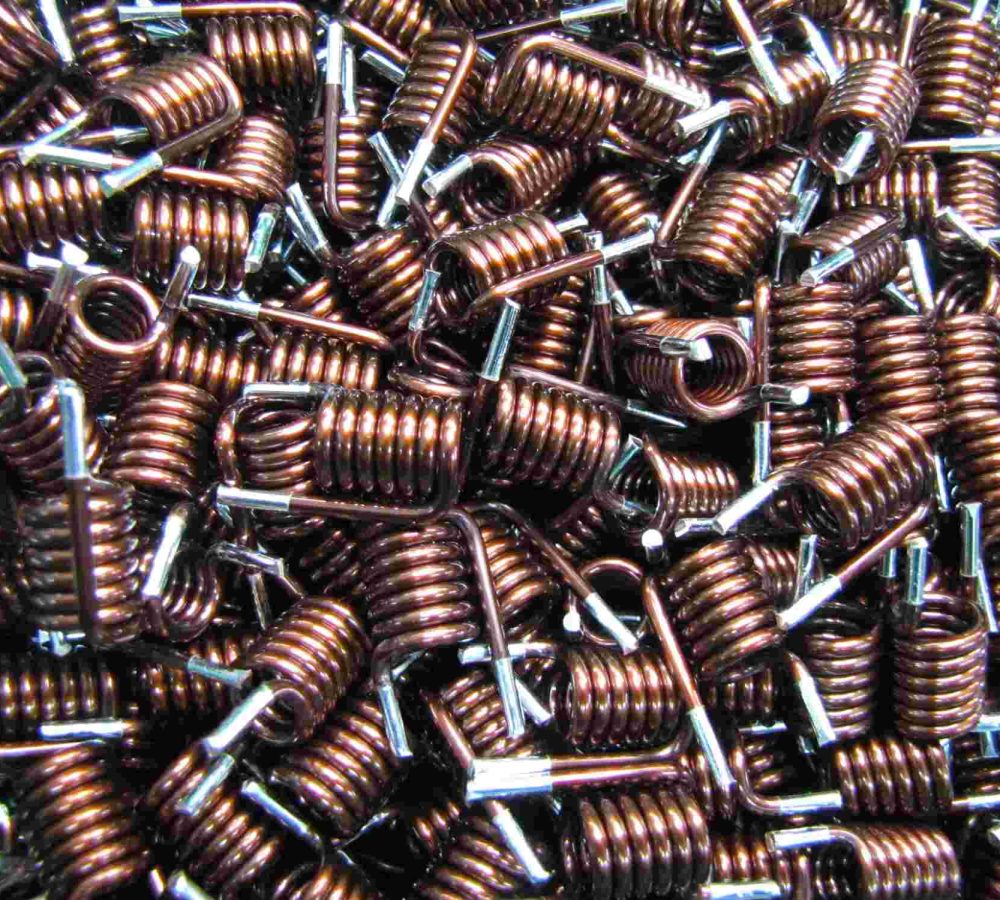

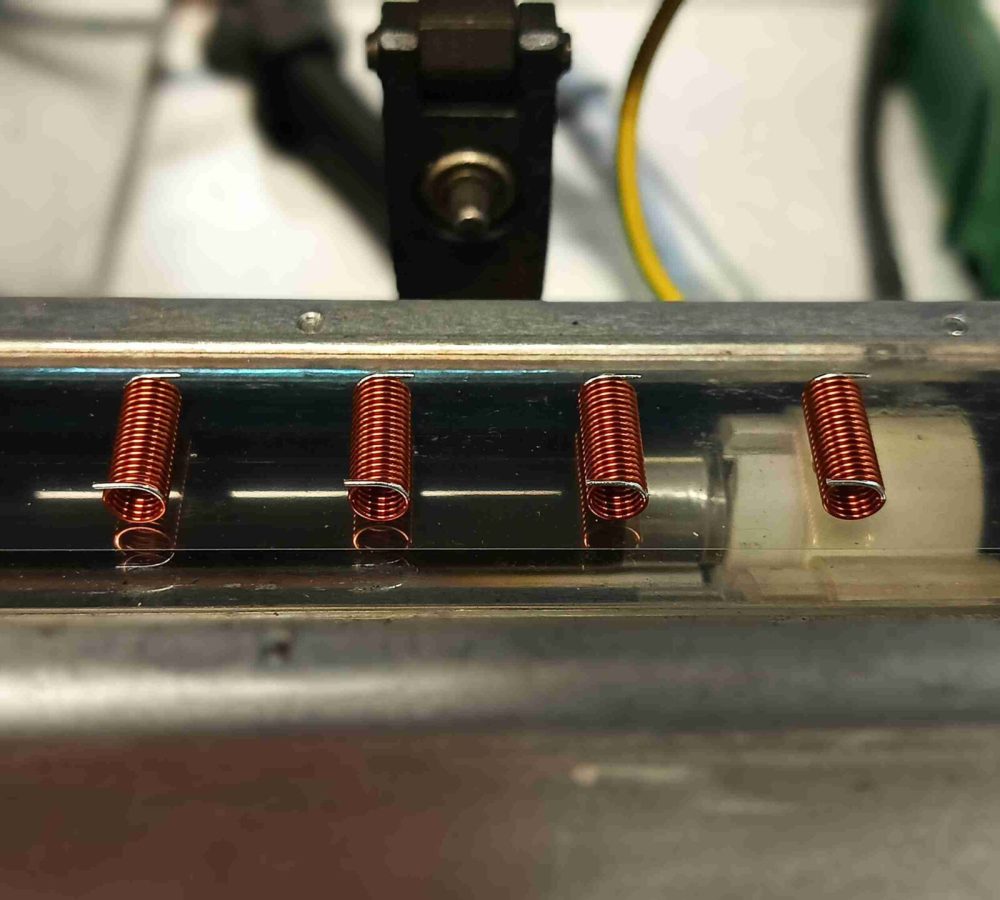

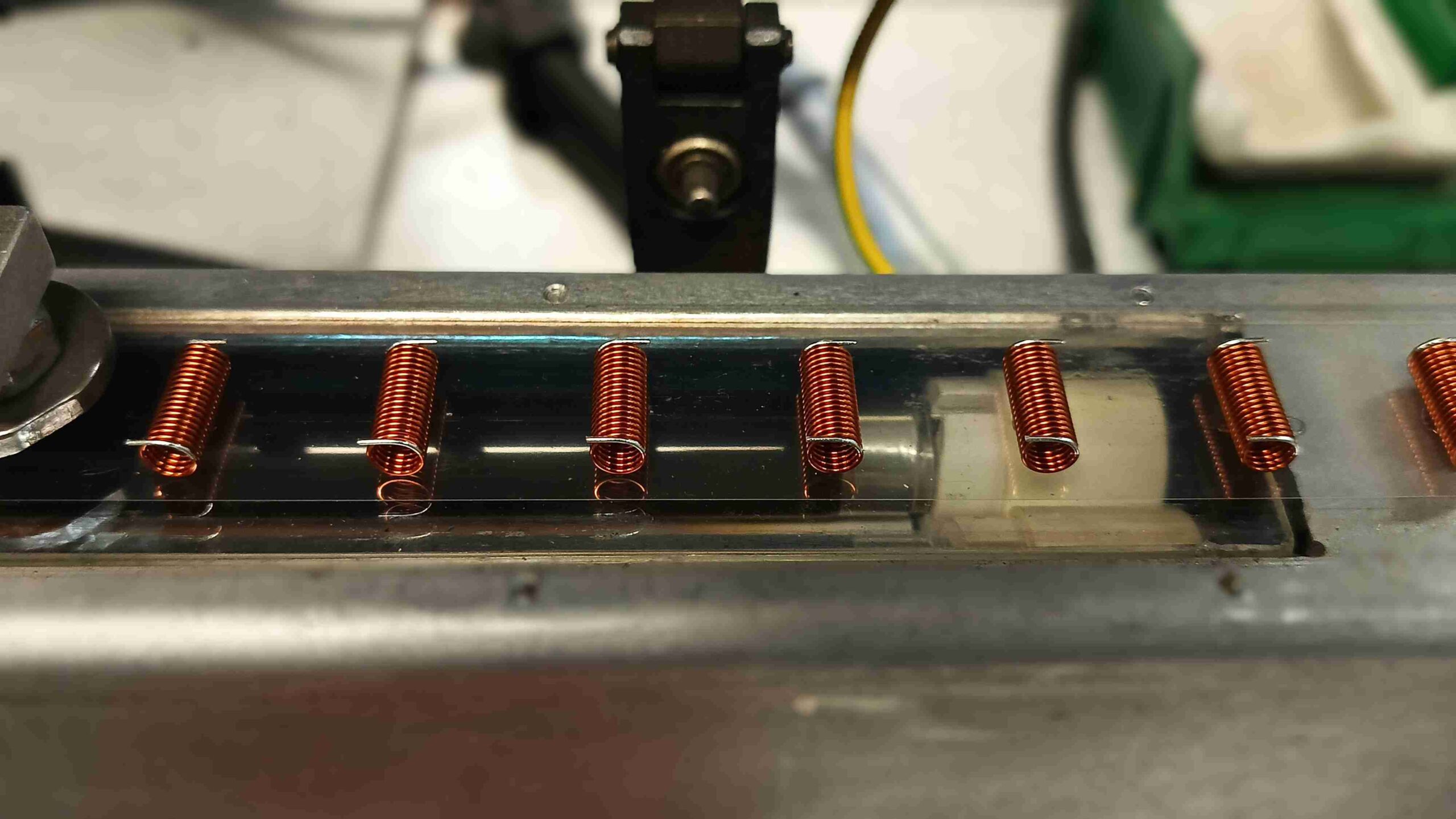

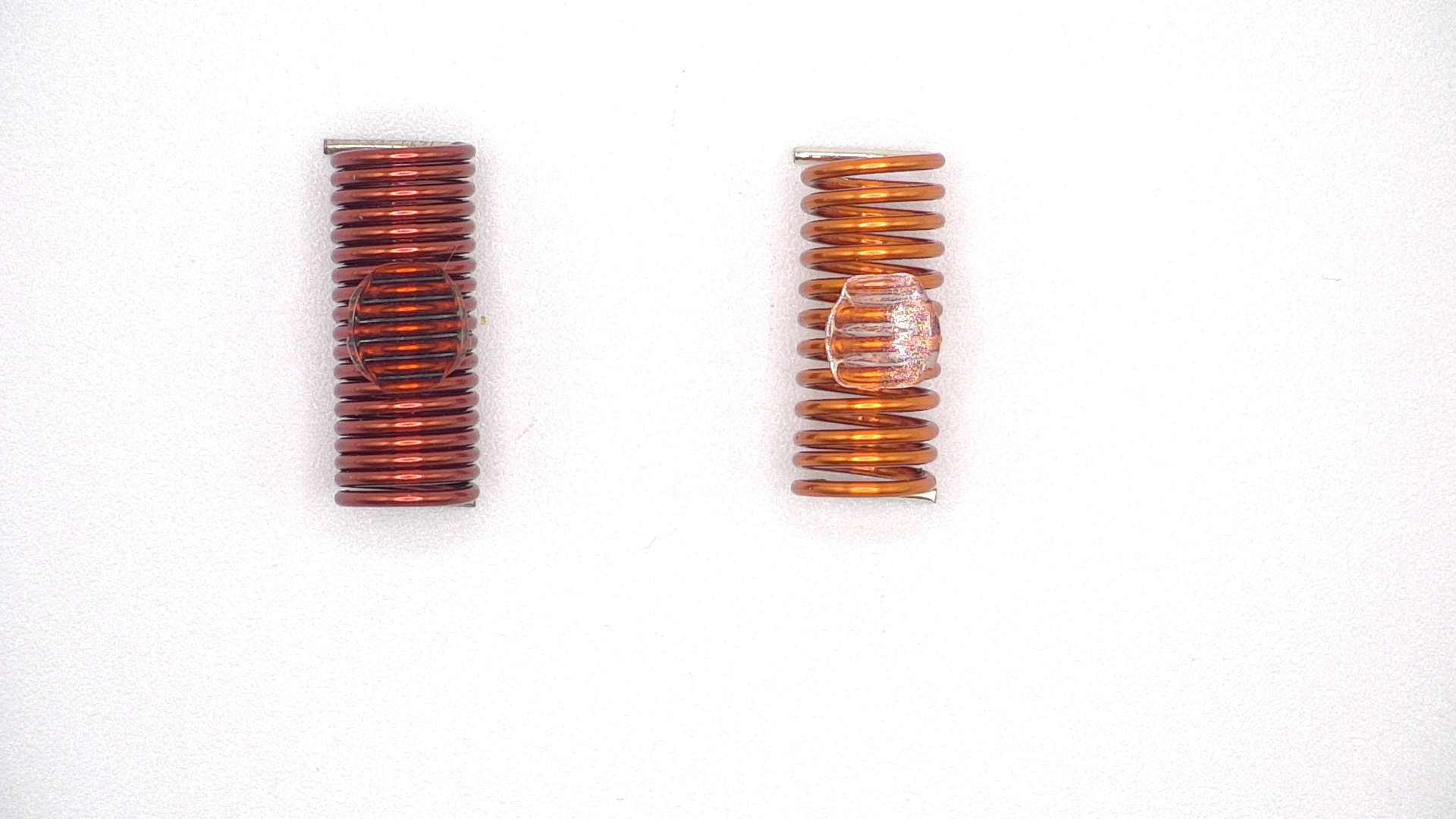

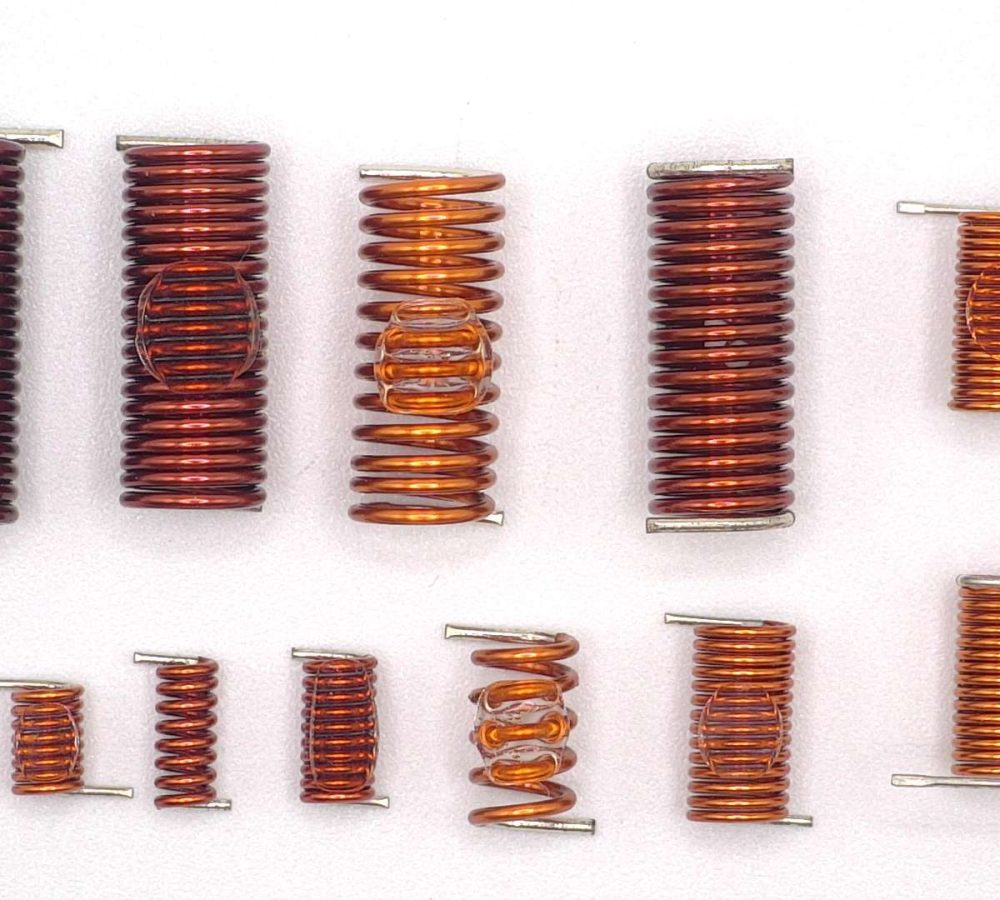

Surface Mounted Air Coils for Automatic Assembly
We specialize in the production of SMD and THT air-core inductors. We prepare them for automated assembly in SMT lines. At each stage of production, we use different adhesive dots tailored to customer requirements and component transport methods, ensuring stable component positioning during the pick-and-place process.
We also fulfill special orders and individual customer requirements, including winding air-core coils according to provided designs, ensuring full compliance with technical documentation and the highest precision.
This ensures that our SMD coils are fully compatible with modern automated electronics production systems, ensuring the assembly process is quick, accurate, and free from component damage.
Contact
If you have any questions, need more information or would like to place an order, please contact us.
