We are pleased to announce the introduction of a new generation of inductive components from Neosid – the Sd 76 and Bs 78 series, the direct successors to the renowned Sd 75 and Bs 75 models. These new products are designed for even higher performance, parameter stability, and optimized applications in modern electronics.
The Sd 76 series are modern ferrite axial chokes designed for through-hole (THT) assembly, including automated assembly. They combine minimal dimensions with a wide inductance range.
Key Features:
☑️ Wide inductance range: 3.3 µH – 150 mH
☑️ High parameter stability and production repeatability
☑️ Optimized high-frequency properties
☑️ Low RDC resistance and high Q factor
☑️ Compact design enabling high PCB density
☑️ RoHS and REACH compliance, halogen-free
Applications:
🔵 EMI interference suppression
🔵 Separation of high- and low-frequency circuits
🔵 Filters (low- and high-pass)
🔵 Telecommunications and video devices

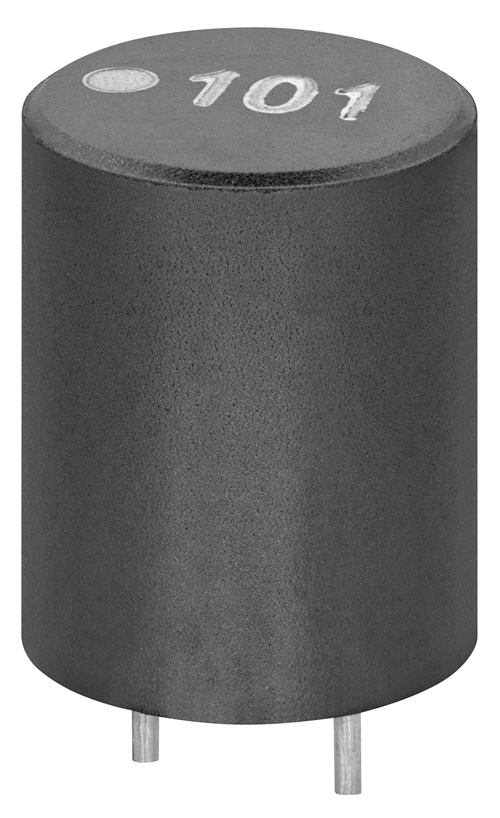

The Bs 78 series are magnetically shielded chokes designed for use in more demanding environments where reducing coupling and interference emissions is crucial.
Key Features:
☑️ Inductance range: 0.1 mH – 150 mH
☑️ Magnetic shielding: minimizes impact on surrounding components
☑️ High parameter stability and good frequency response
☑️ Extended operating temperature range: -40°C to +125°C
☑️ Optimized design for industrial applications
Applications:
🔵 Systems requiring low EMI emissions
🔵 Applications with increased temperature requirements
🔵 Selective filters and RF circuits
🔵 Advanced electronic and industrial systems
Samples: Available within 6 – 8 weeks
Mass production starts: Q2 2027
The Sd 75 and Bs 75 series will remain available until the end of 2029 (to ensure project continuity).
The new Sd 76 and Bs 78 series address growing market demands for miniaturization, electromagnetic compatibility, and operational stability of electronic systems.
If you are interested in samples or additional technical information, please contact us!
Discover unique 3D cube antennas that offer isotropic electrical and magnetic properties. The specially shaped ferrite antenna core maximizes the precision, efficiency and magnetic sensitivity of the antenna while significantly reducing the weight of the component. The antennas are available in several different sizes and adapted to various electronic systems.

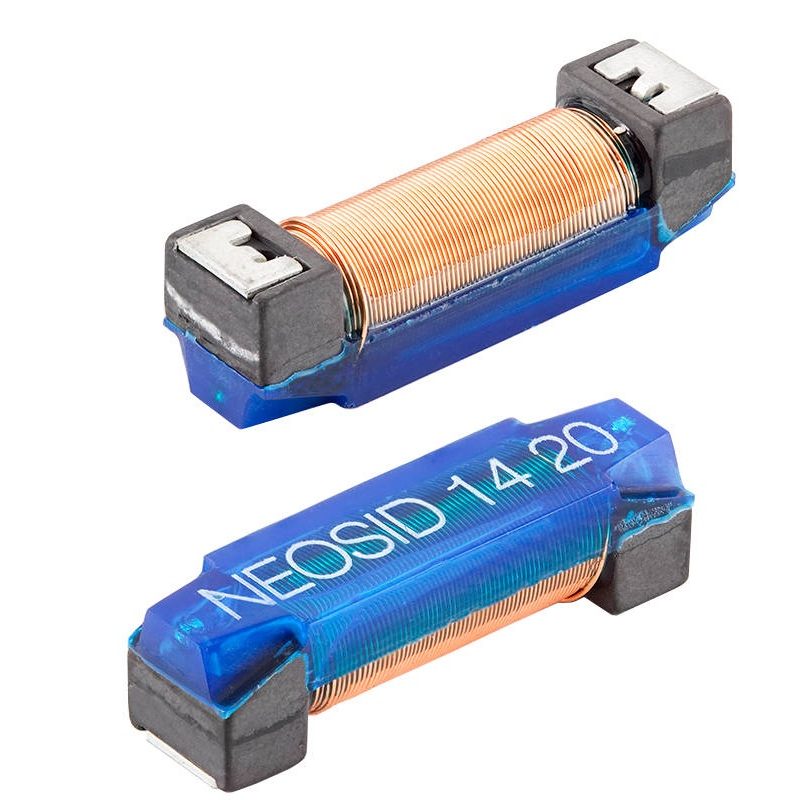

We present a selected element from the wide range of X/Y transponders. Non-standard "X/Y" transponders, including the MS 5420, for use in electronic systems as a transponder antenna and for decoupling in HF and IF circuits. Their basic element is precisely formed ferrite cores, which are NEOSID's specialization.
RFID "Flag" type identifier for attachment using a cable tie. It can be used in metal and non-metal environments. It operates at a frequency of 13.56 MHz and finds industrial applications in the areas of maintenance and repair, tool management, production tracking and protection against plagiarism. It provides identification of objects for Industry 4.0
If you have any questions, need more information or would like to place an order, please contact us.
